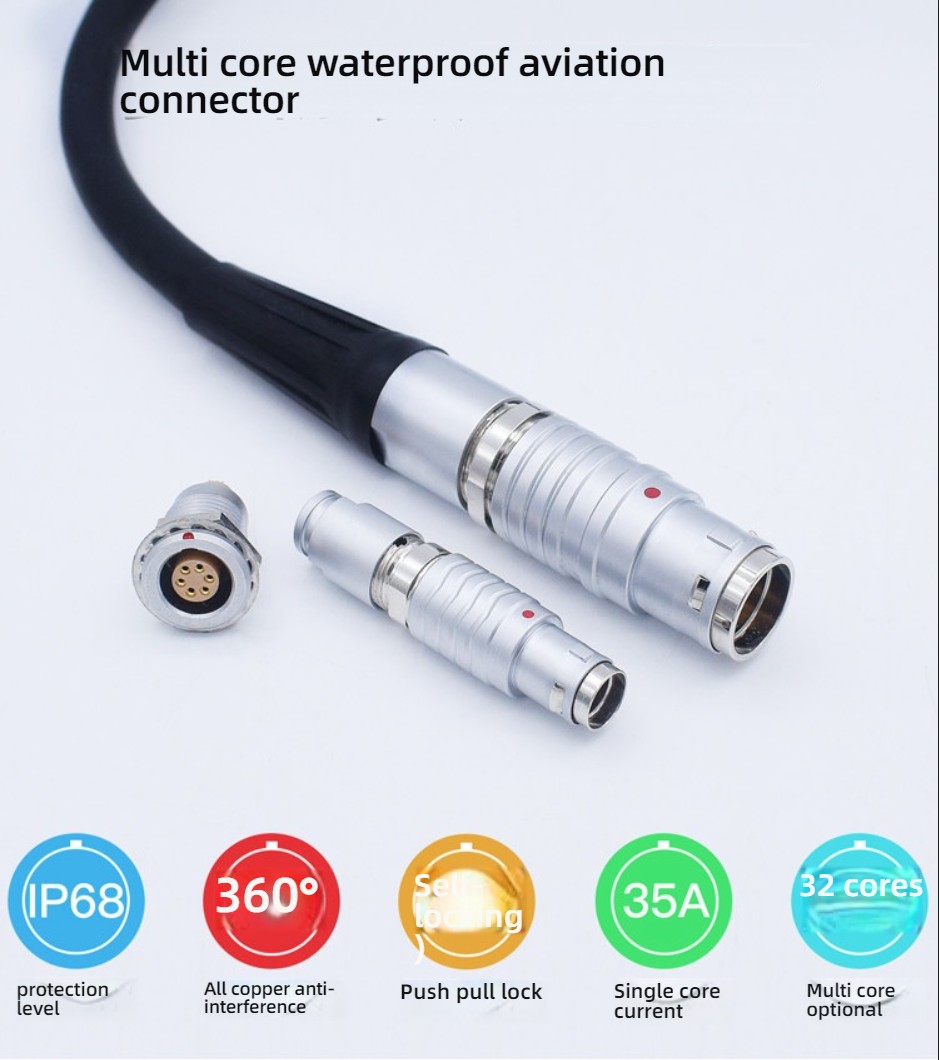

Premium waterproof aviation push‑pull connector with FGG plug and EGG socket. Miniature sizes 0T/1T/2T/3T, IP66‑IP68 rated, self‑locking metal design with high durability and EMC shielding — perfect for industrial, outdoor, and harsh environment applications.
Overview:

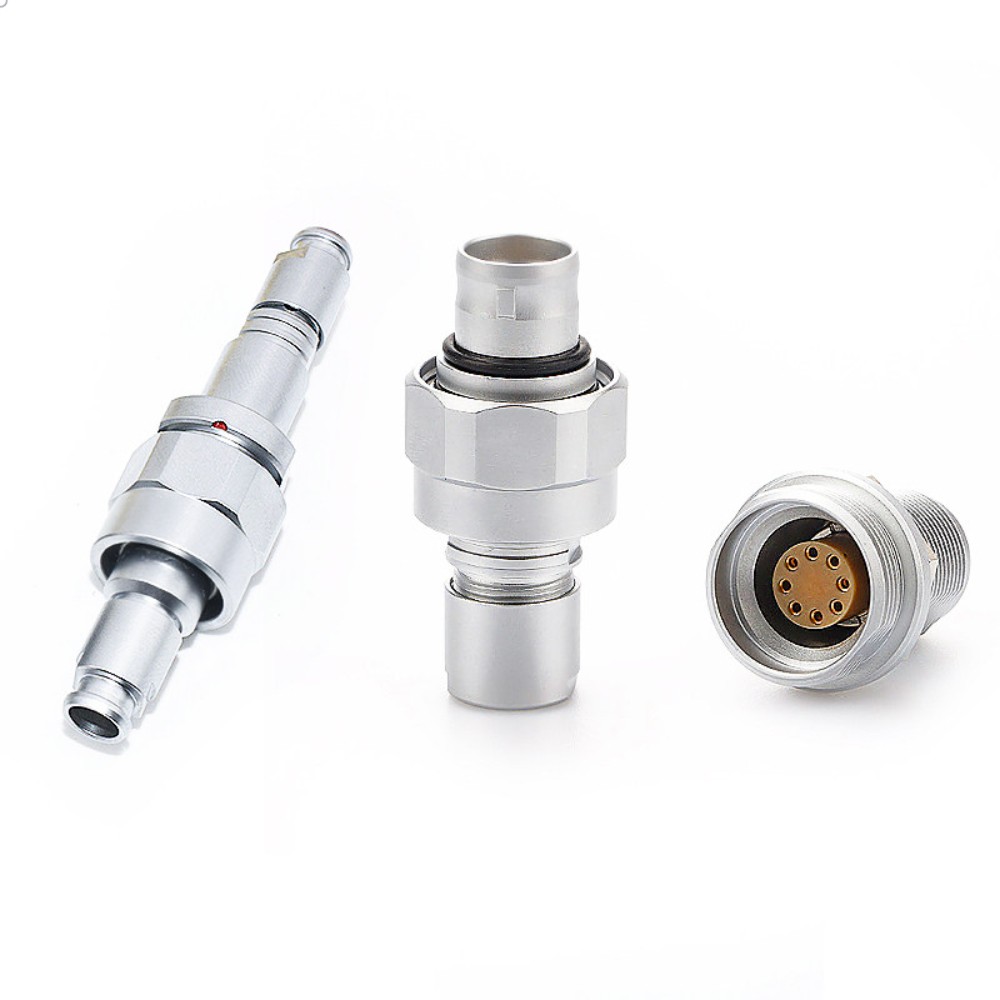

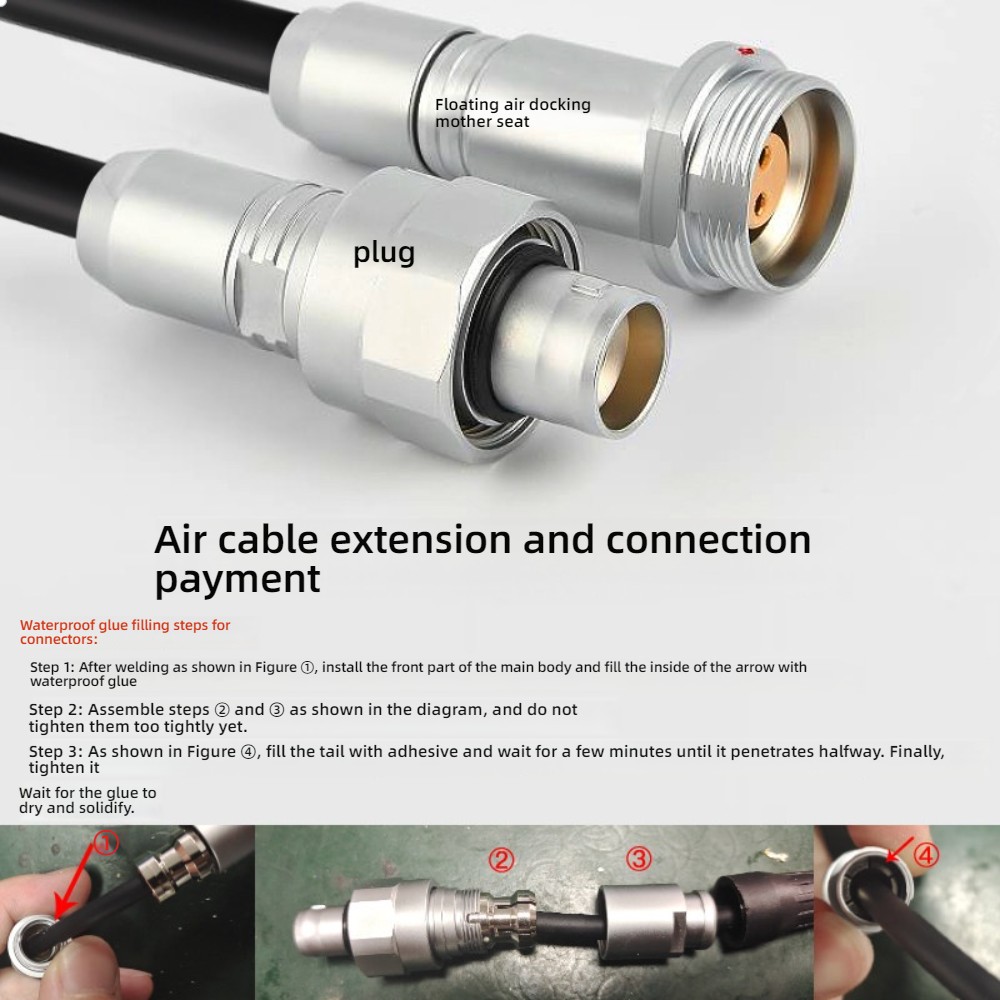

This waterproof aviation push‑pull self‑locking connector features rugged FGG male plug and EGG female socket interfaces with miniature 0T, 1T, 2T, and 3T shell sizes. It is engineered for reliable performance in challenging environments, achieving IP66 and IP68 protection ratings when correctly mated, offering excellent resistance to water, dust, and contamination.
Key Features:
High Waterproof Protection: Rated IP66‑IP68 to prevent water and dust ingress in outdoor or industrial conditions.
Push‑Pull Self‑Locking System: Secure and rapid mating/demating with audible lock feedback.
Miniature Size Options: 0T, 1T, 2T, 3T series shells for space‑constrained applications.
Full EMC Shielding: 360° shielding for robust signal integrity and EMI suppression.
Durable Construction: Metal housing for mechanical strength and corrosion resistance in harsh environments.

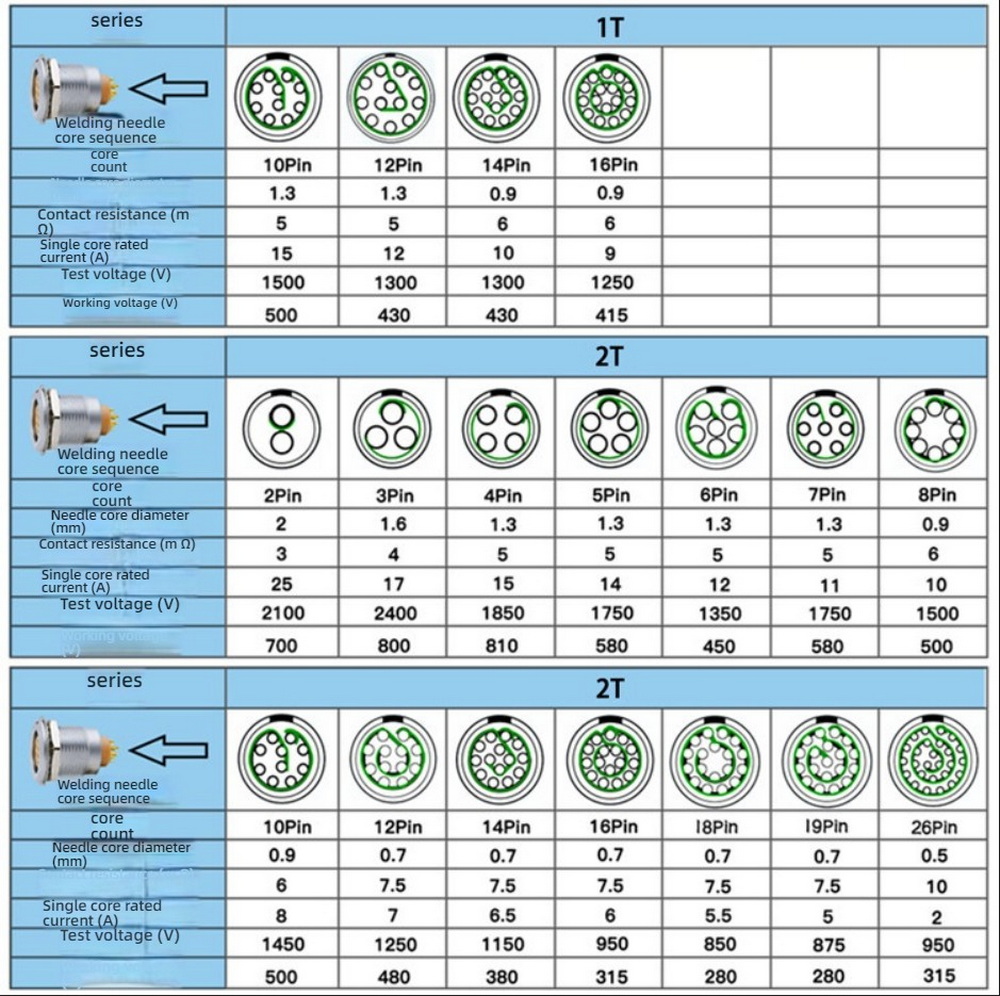

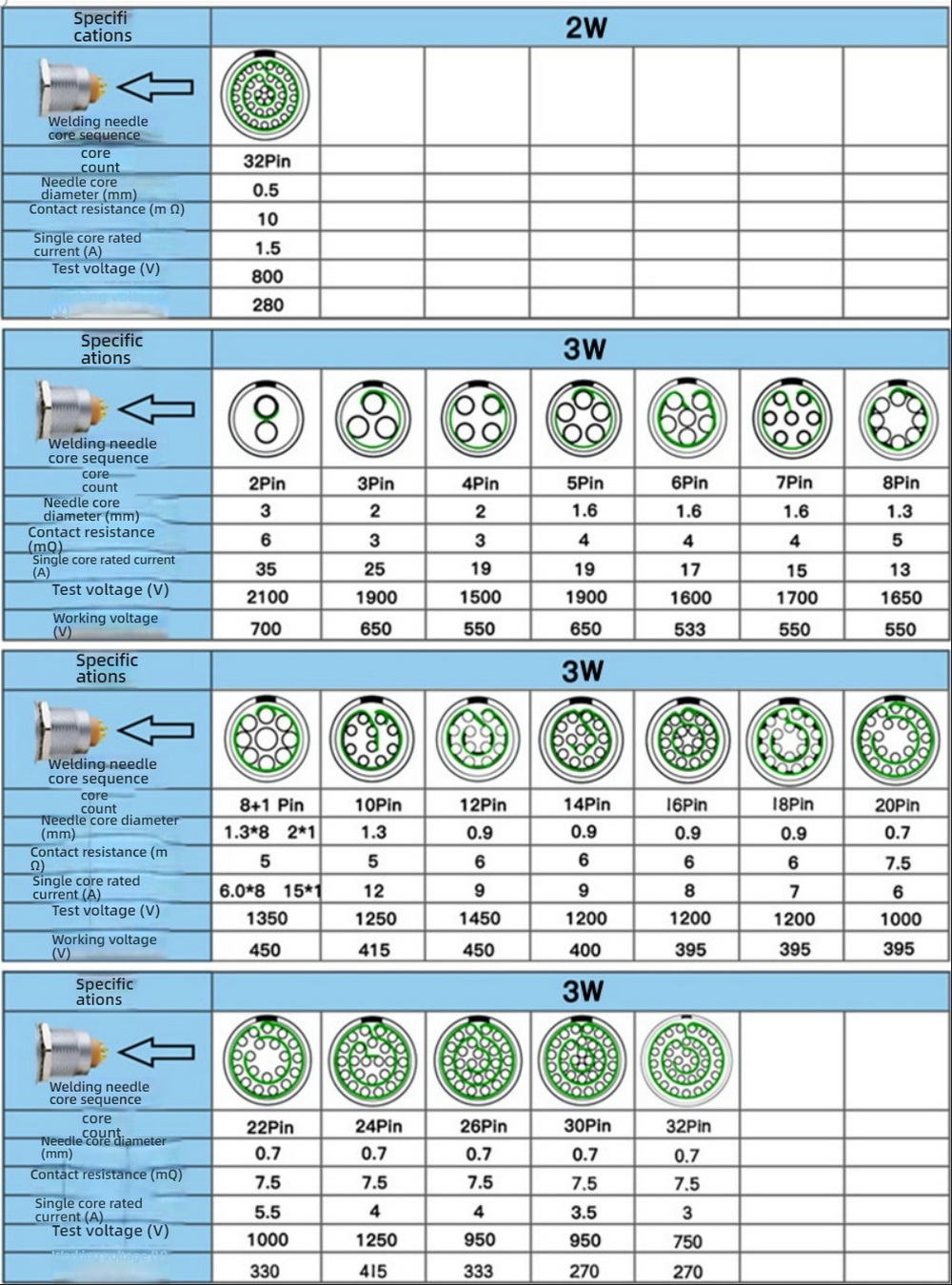

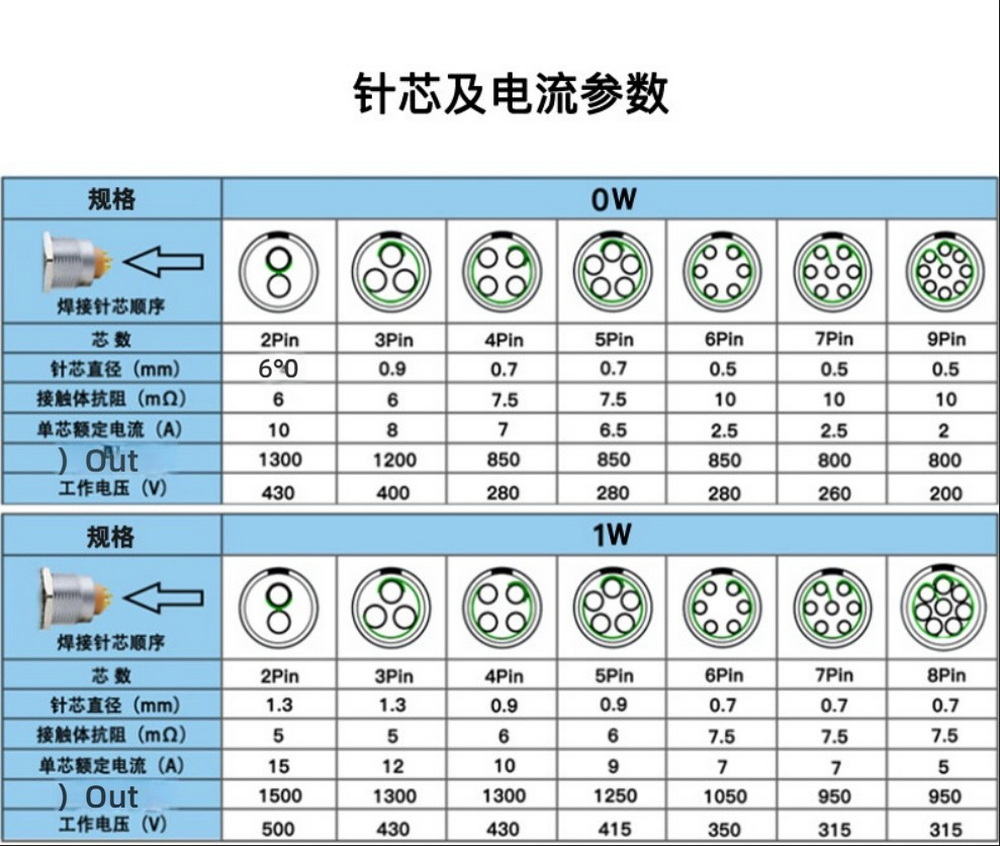

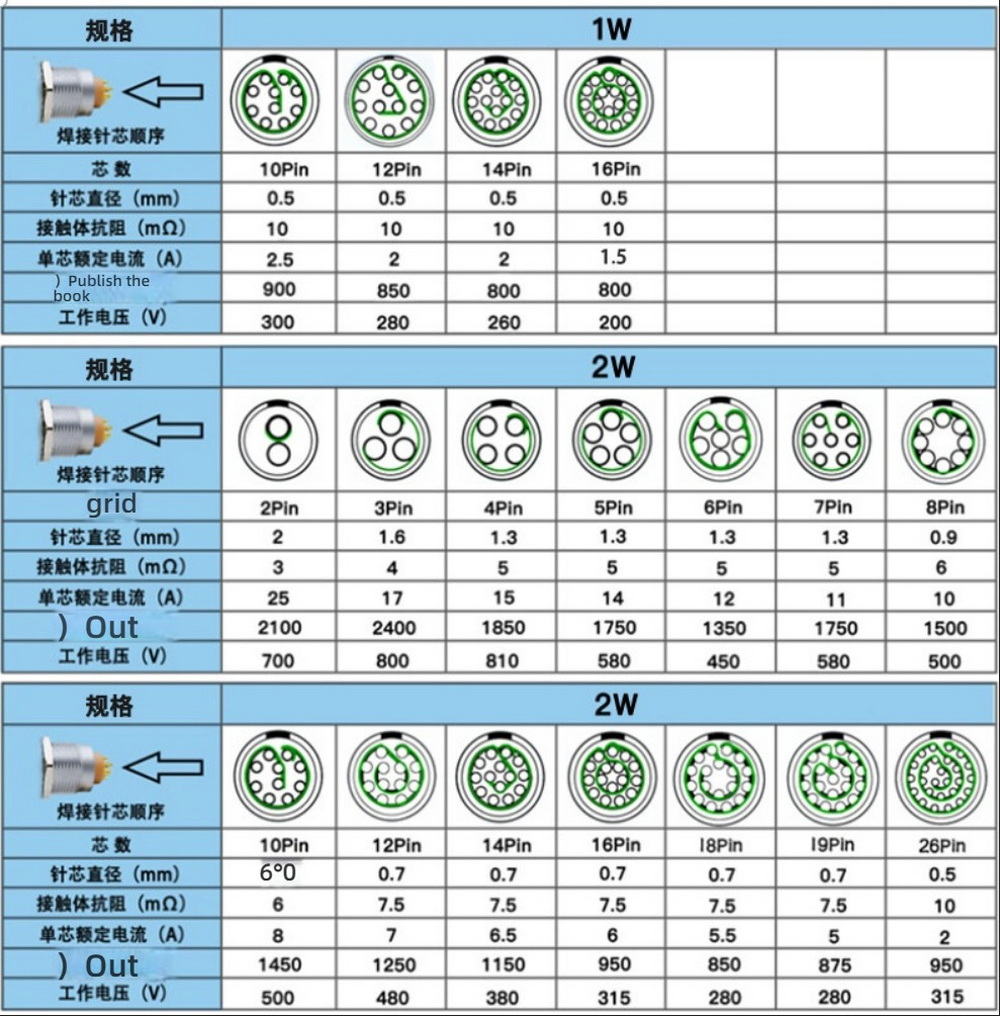

Multiple Contact Configurations: Supports 2–30+ pins depending on selected series, adaptable for power and signal needs.
Long Endurance: Designed for >5000 mating cycles in demanding applications.
Applications:
Ideal for industrial control systems, automation equipment, outdoor communication systems, test instruments, sensors, robotics, and other harsh environment electrical connections.

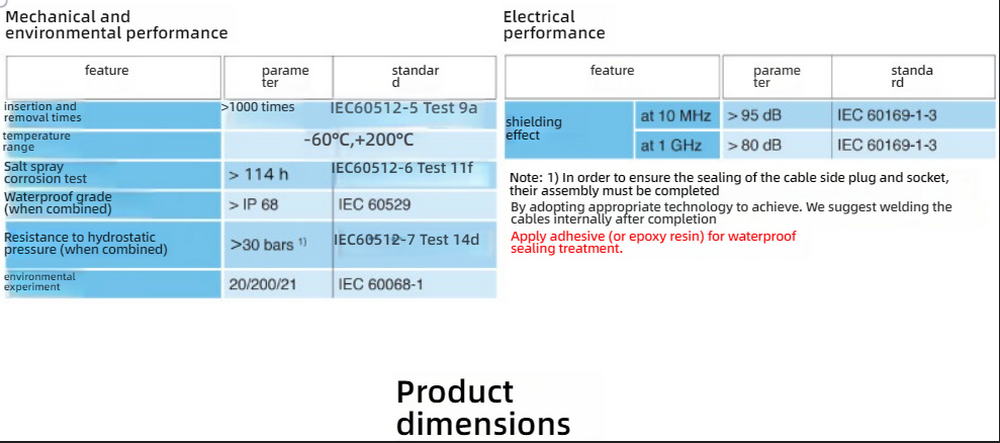

| Parameter | Specification |
|---|---|
| Connector Type | FGG plug & EGG socket circular connectors |
| Protection Rating | IP66 – IP68 (when mated correctly) |

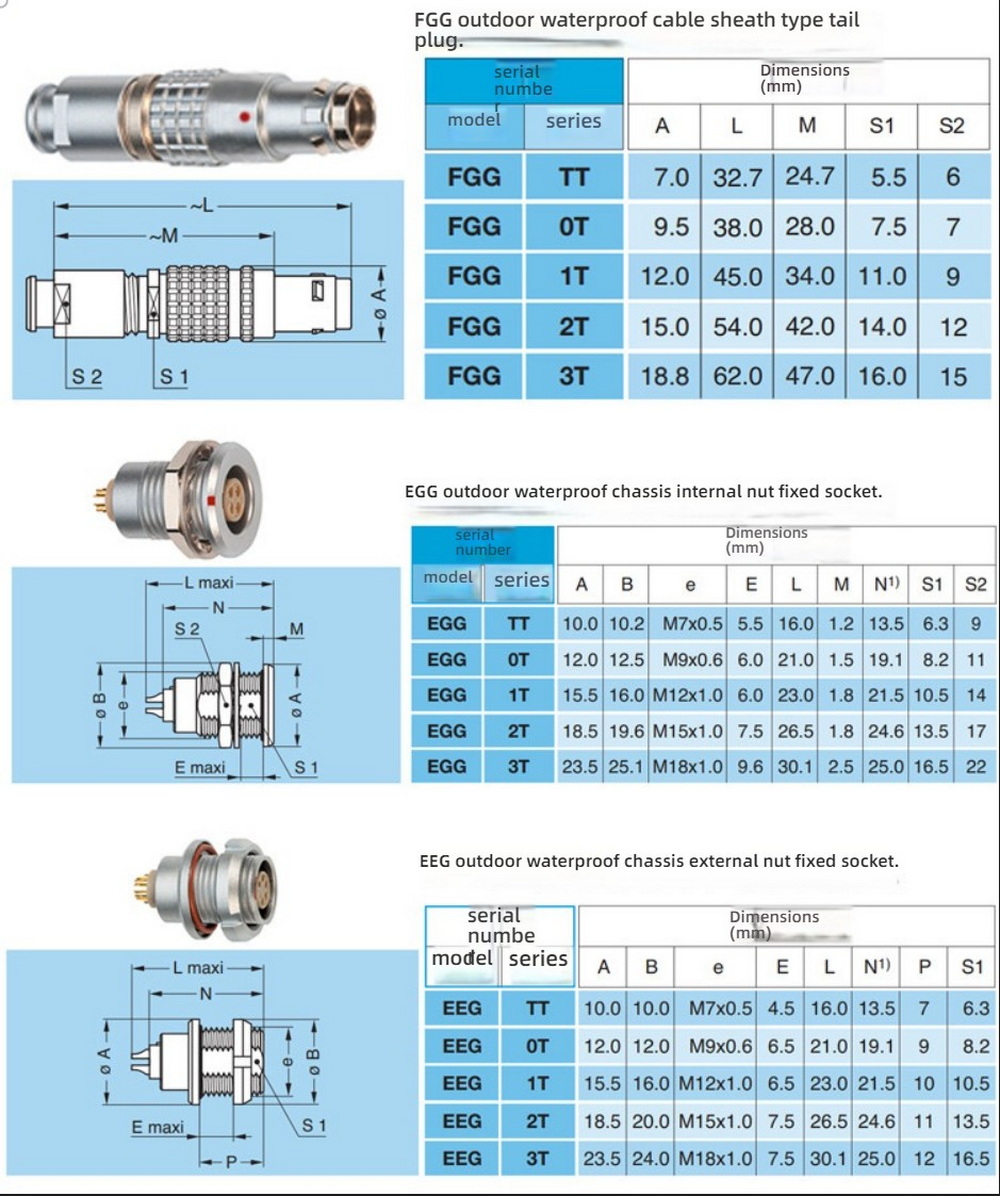

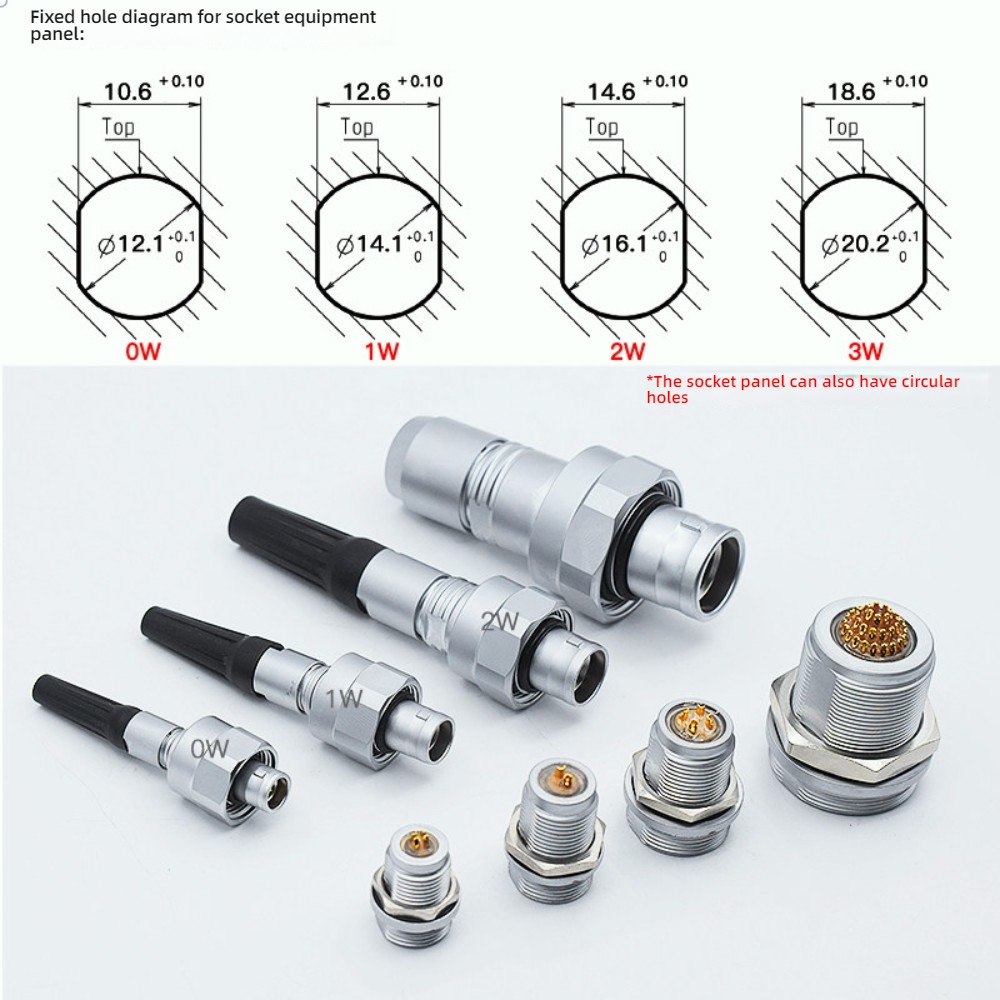

| Shell Sizes | 0T, 1T, 2T, 3T miniature series |
| Number of Contacts | 2 – 30+ (model dependent) |
| Locking Mechanism | Push‑Pull Self‑Locking |
| Mating Cycles | >5000 |
| EMC Shielding | 360° full shielding |
| Shell Material | Metal alloy (chrome/black chrome plating) |
| Operating Temp Range | -55°C ~ +125°C |
| Vibration Resistance | 10‑2000 Hz, 15 g |
| Shock Resistance | 100 g, 6 ms |
| Salt Spray Corrosion | >96 h |
This miniature waterproof aviation connector combines compact dimensions with strong environmental protection and a reliable push‑pull self‑locking mechanism — making it perfect for high‑performance electrical connections in industrial, automotive, and outdoor systems. Its flexible pin configurations and rugged metal housing ensure long service life and robust signal integrity even under vibration, shock, or harsh humidity conditions.
