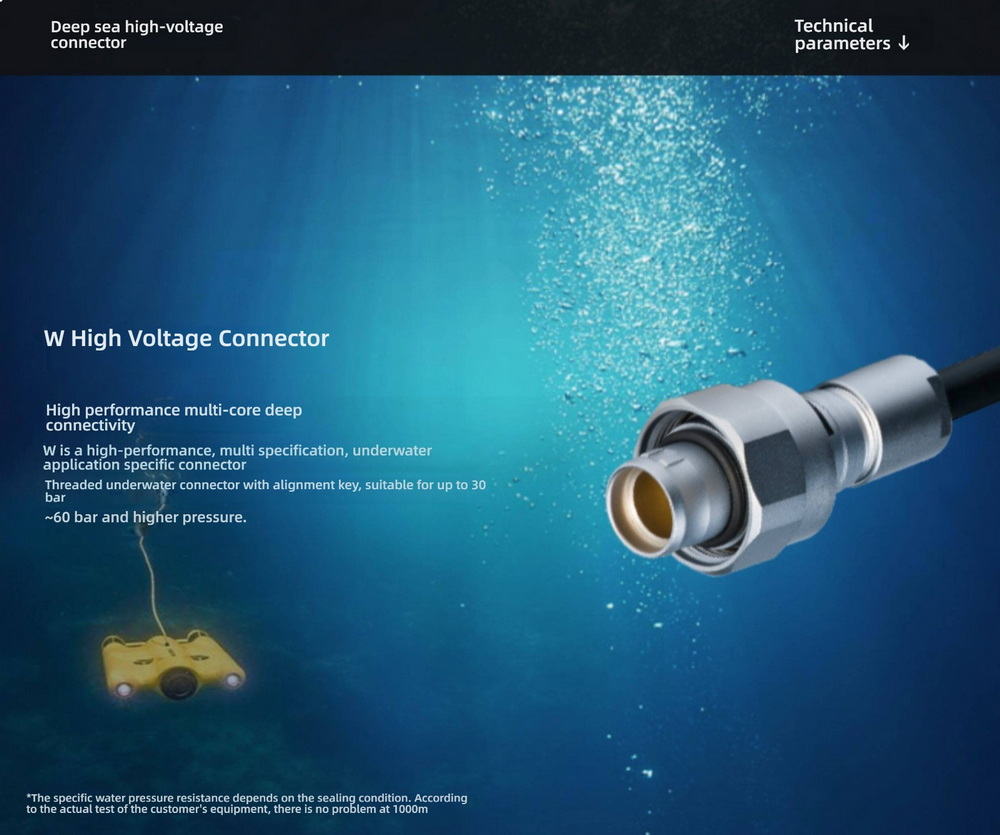

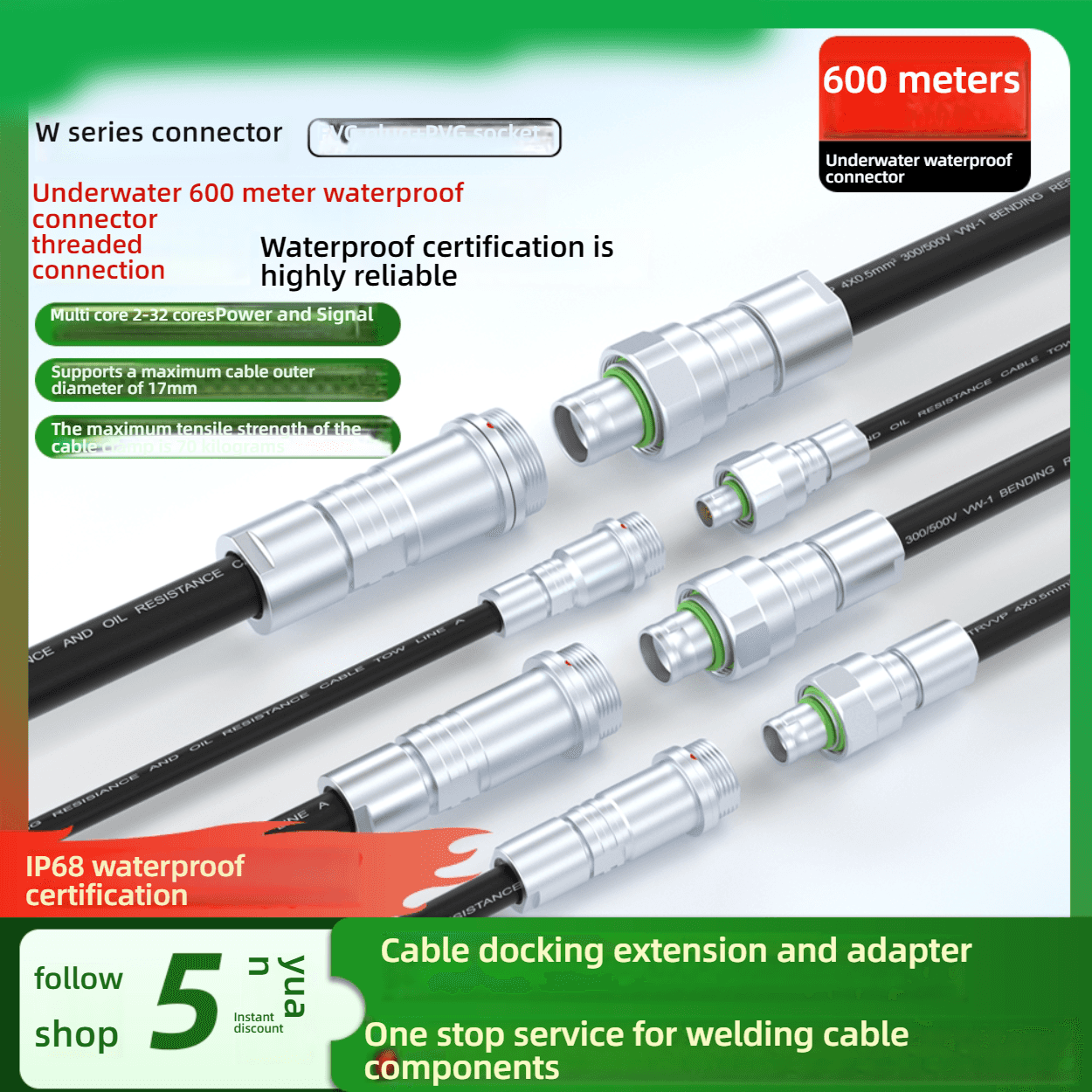

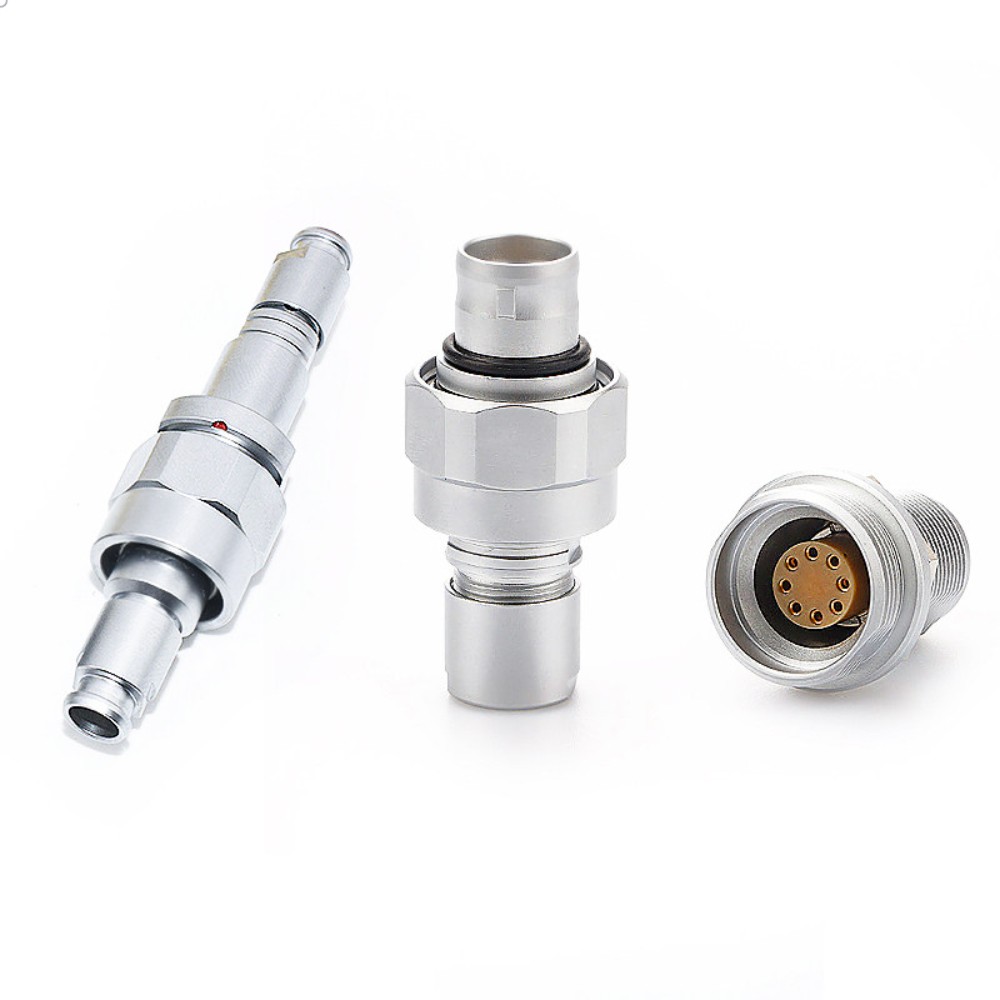

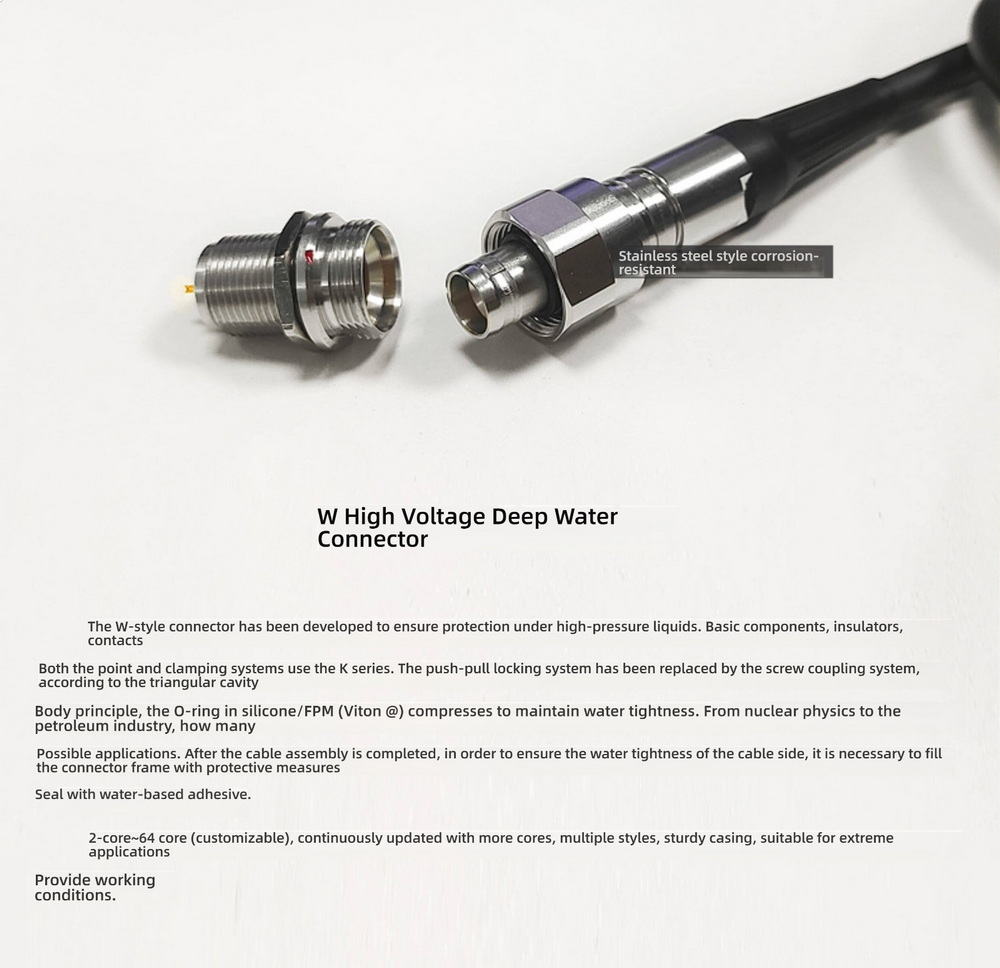

Professional deep‑sea waterproof aviation connector with threaded FVG / PVG plug and socket. IP68 rated for up to 600 m underwater use with watertight vacuum sealing. Rugged metal housing for subsea robotics, sensors, ROVs, and marine automation systems.
Overview:
This deep‑sea rated FVG / PVG aviation connector is engineered for subsea and marine applications requiring exceptional waterproof performance and reliable electrical connections under high‑pressure environments. Designed with a threaded aviation style coupling and watertight vacuum seal, it achieves IP68 protection suitable for underwater operation up to 600 meters.
Key Features:
Deep‑Sea Waterproof Protection: Certified IP68 to withstand prolonged submersion and high pressure.
Threaded Aviation Coupling: Secure threaded interface ensures watertight and vacuum‑tight sealing for subsea connection integrity.
Robust Construction: Metal housing resists corrosion and mechanical stress in harsh underwater environments.

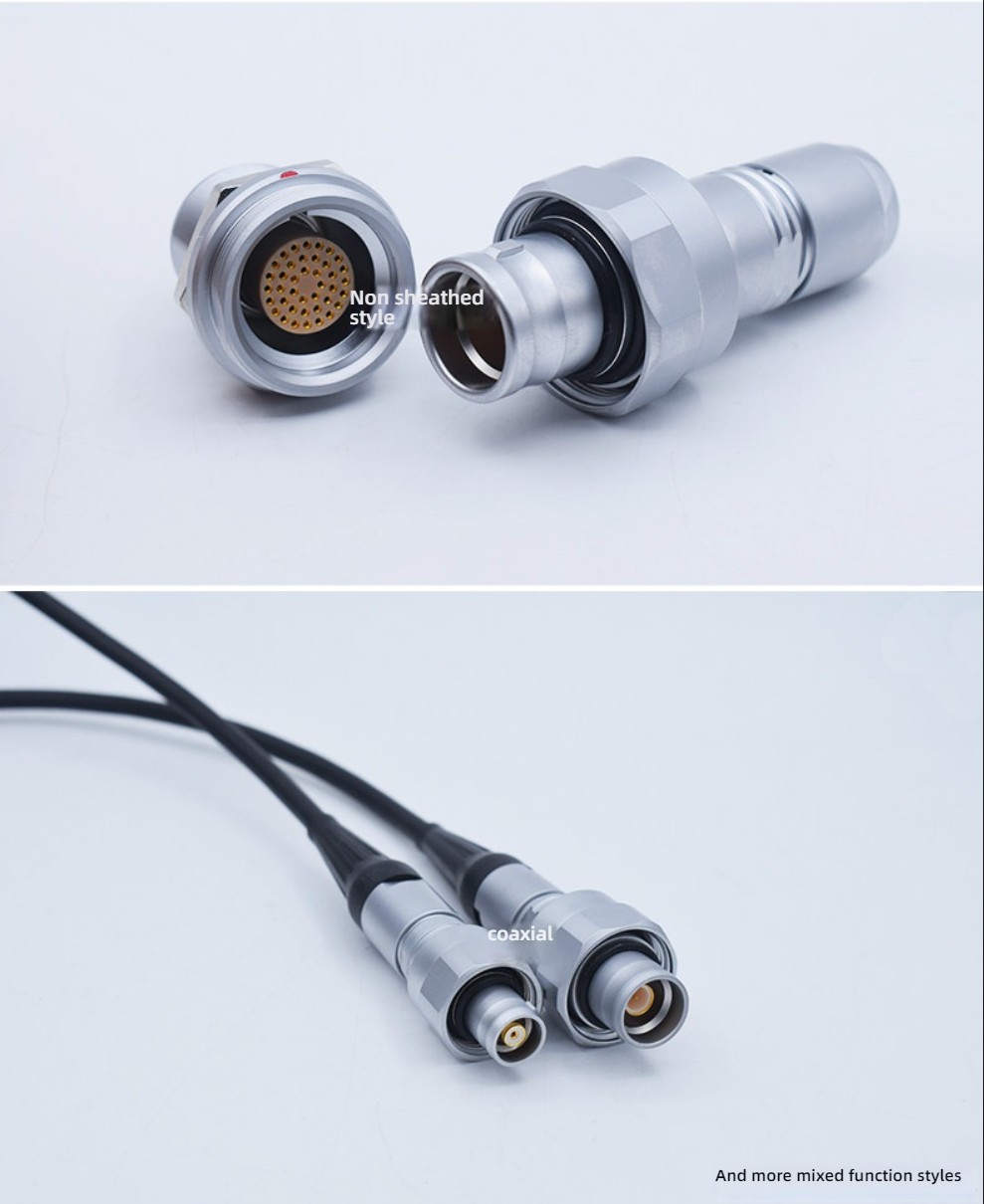

Multiple Pin Configurations: Available in 2–32 pins depending on power and signal needs.
High Durability: Rated for 5000+ mating cycles with strong retention and vibration tolerance.
Shielded Contacts: Excellent shielding performance across frequency ranges for reliable signal transmission.
Typical Applications:
Underwater robotics and ROV systems
Marine and offshore sensors, cameras, and instruments
Subsea communication and power systems
Oceanographic research equipment
Submersible lighting and control systems

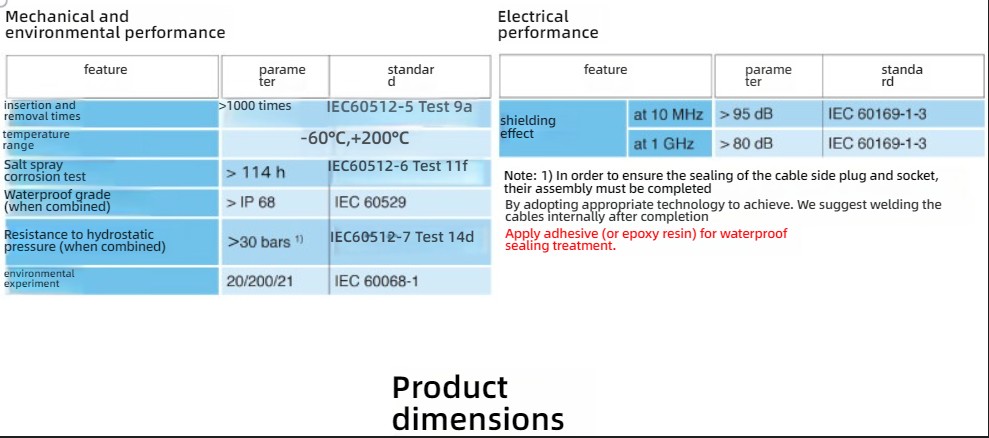

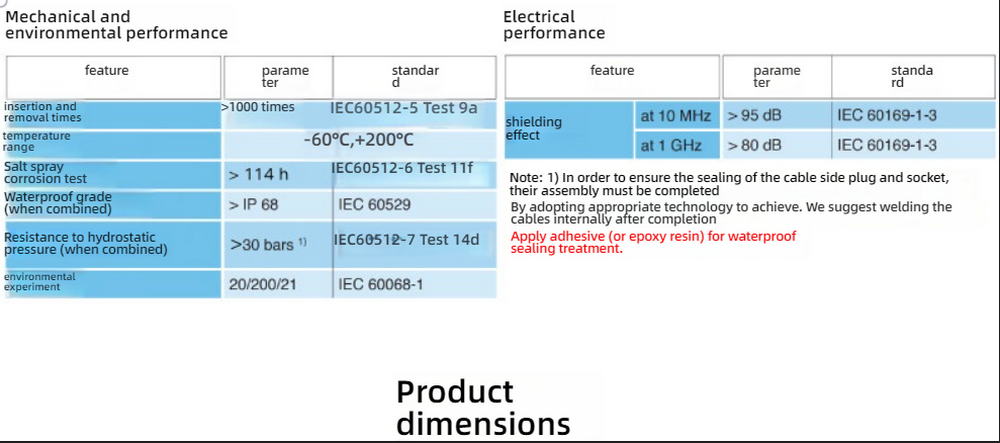

| Parameter | Specification |
|---|---|

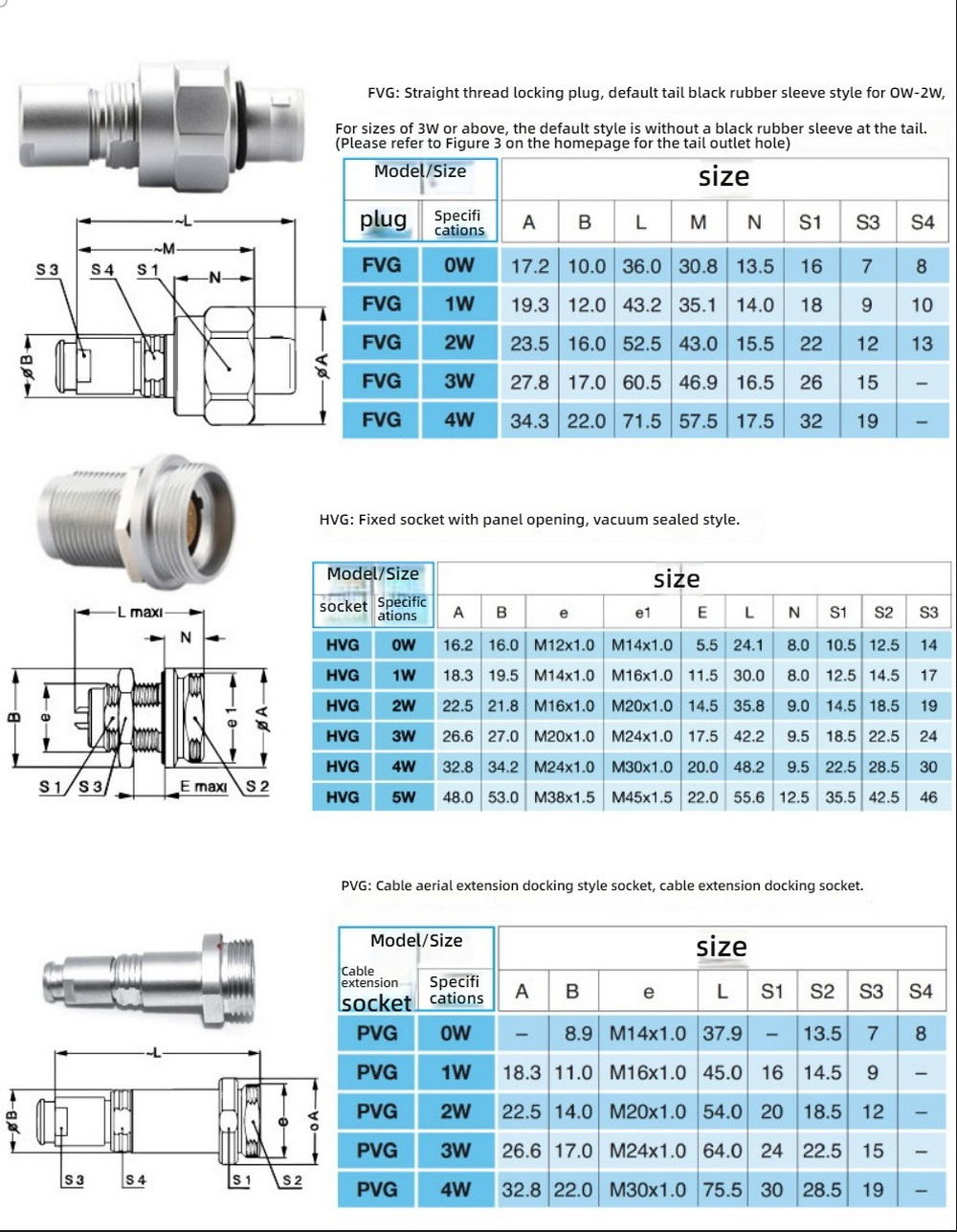

| Connector Type | FVG / PVG aviation threaded plug & socket |
| Waterproof Rating | IP68 (submersible) |
| Subsea Depth Capability | Up to 600 m (Materials may vary based on depth) |

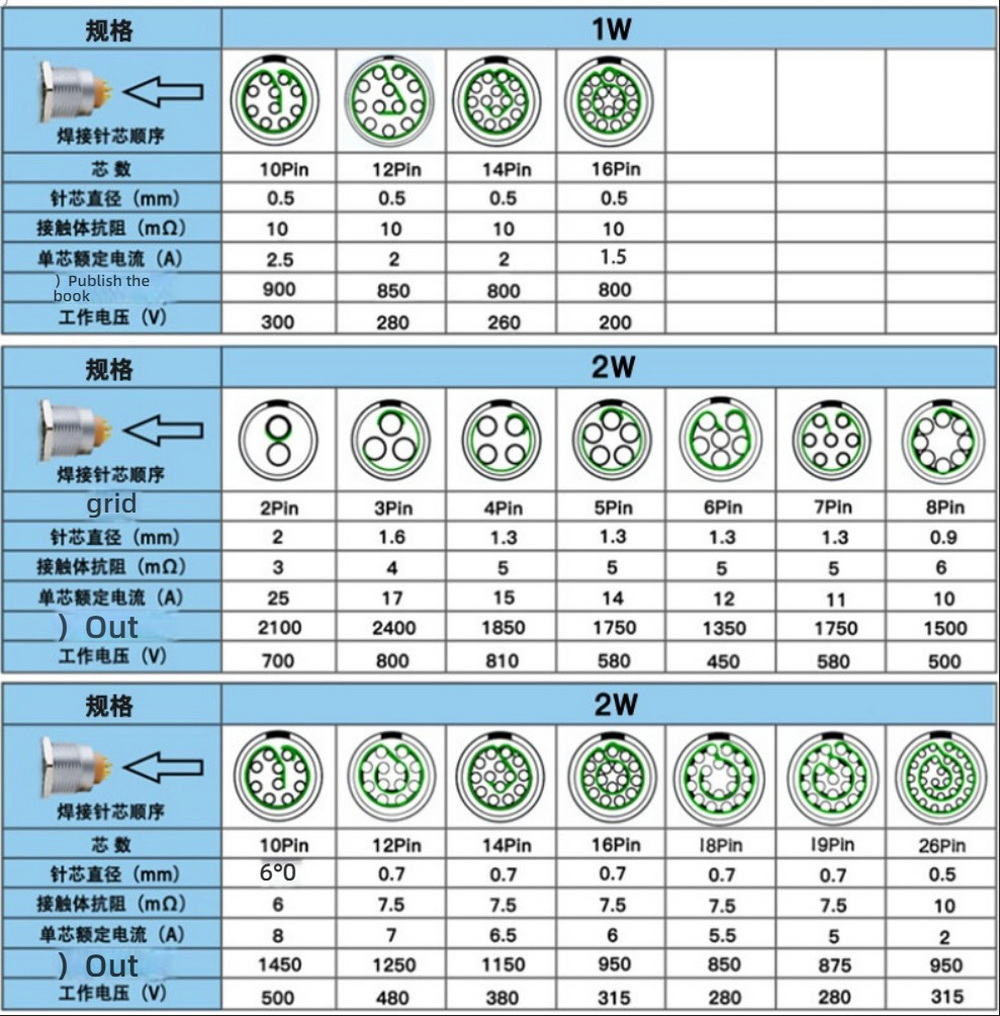

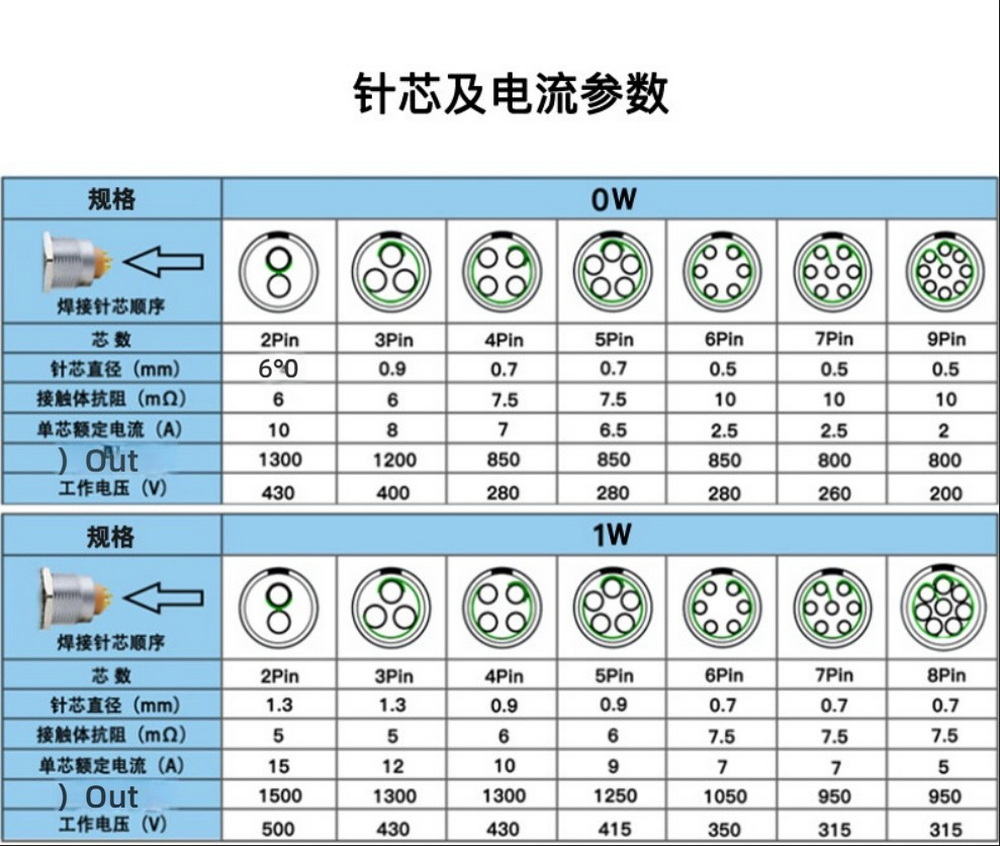

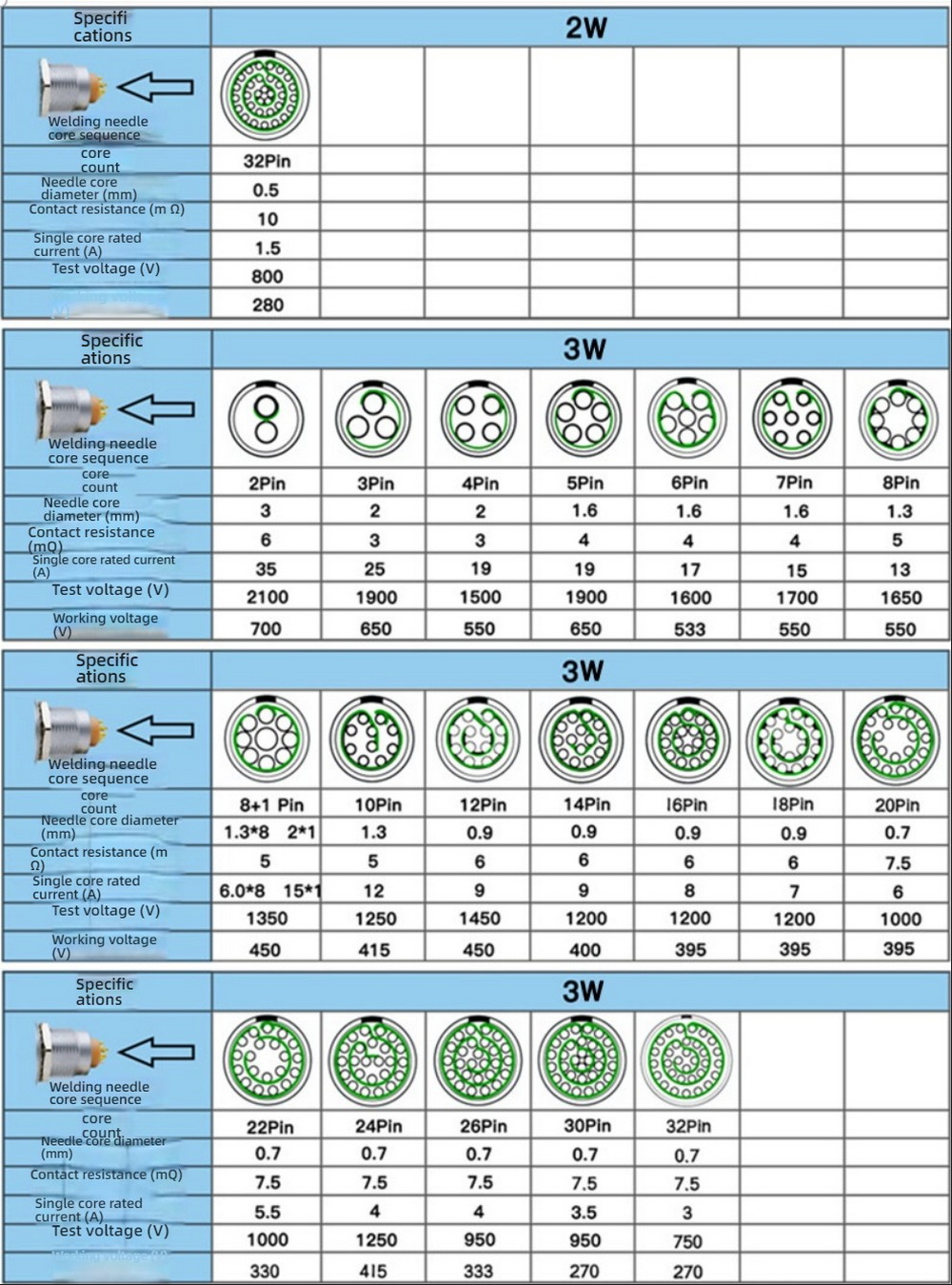

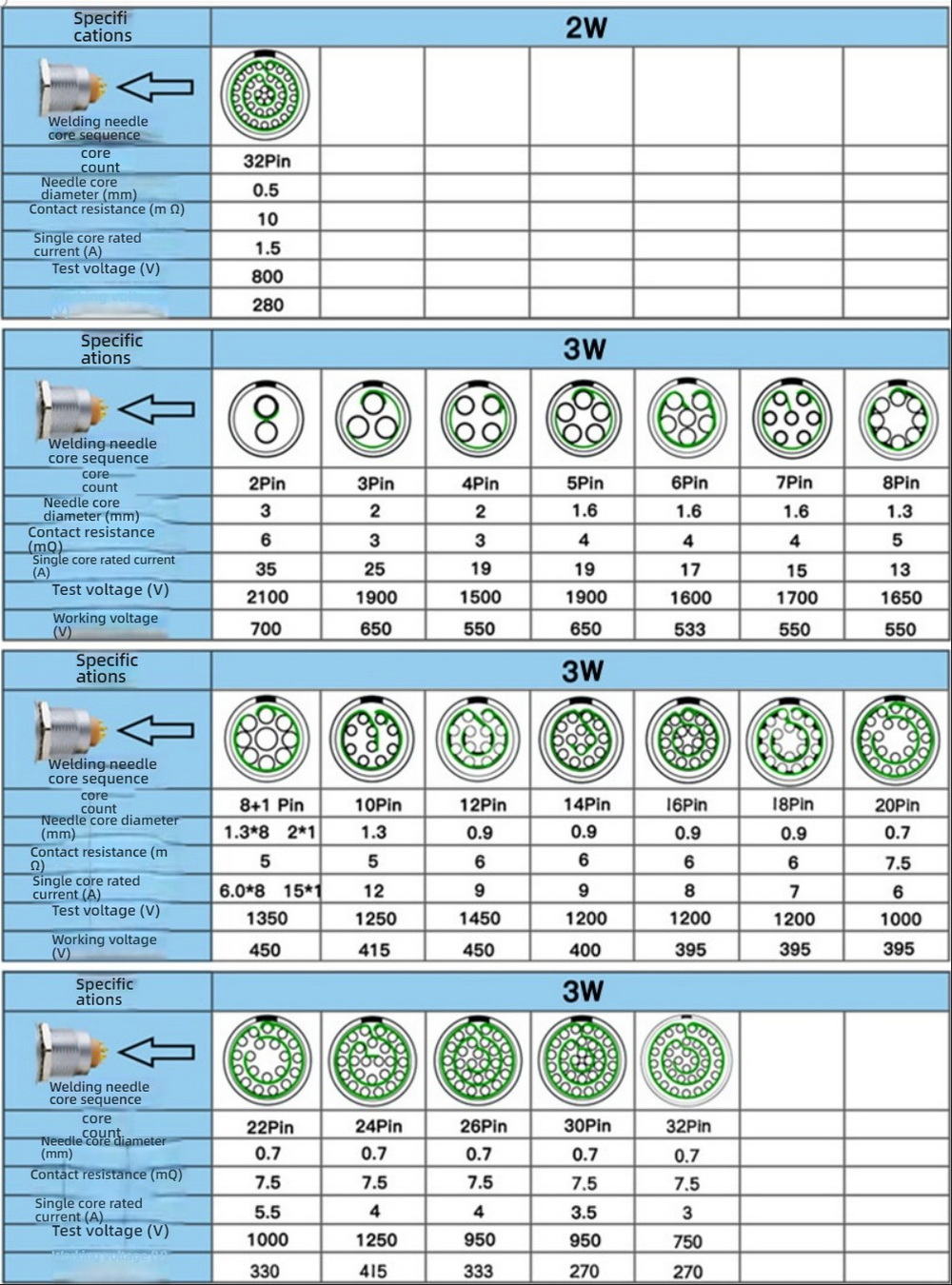

| Pin Count Options | 2,3,4,5,6,7,8,10,12,14,16… up to 32 pins |
| Shell Material | Brass with nickel plating (or stainless steel for higher depth) |
| Contact Material | Gold‑plated phosphor copper |
| Insulator Material | PEEK / PPS / PTFE options |
| Working Temperature | -45 °C to +150 °C |
| Environmental Resistance | Salt spray corrosion resistance (144 h+) |
| Shielding | ≥75 dB at 10 MHz / ≥40 dB at 1 GHz |
| Vibration Resistance | 15 g (10–2000 Hz) |
| Mating Cycles | ≥5000 |
This deep‑sea waterproof aviation connector is built for demanding underwater environments where reliability is mission‑critical — from deep‑sea robots and oceanographic sensors to subsea power/data junctions. Its IP68 watertight design, robust threaded sealing, high shielding performance, and multiple pin configurations make it ideal for any application requiring secure, long‑lasting electrical connections under pressure.
