High‑voltage aviation connector compatible with Fischer 102, 104, and 105 series for 7 kV and 11 kV applications. Robust aviation plug & socket with metal housing and waterproof performance for industrial, automation, and harsh environment electrical power systems.
Overview:

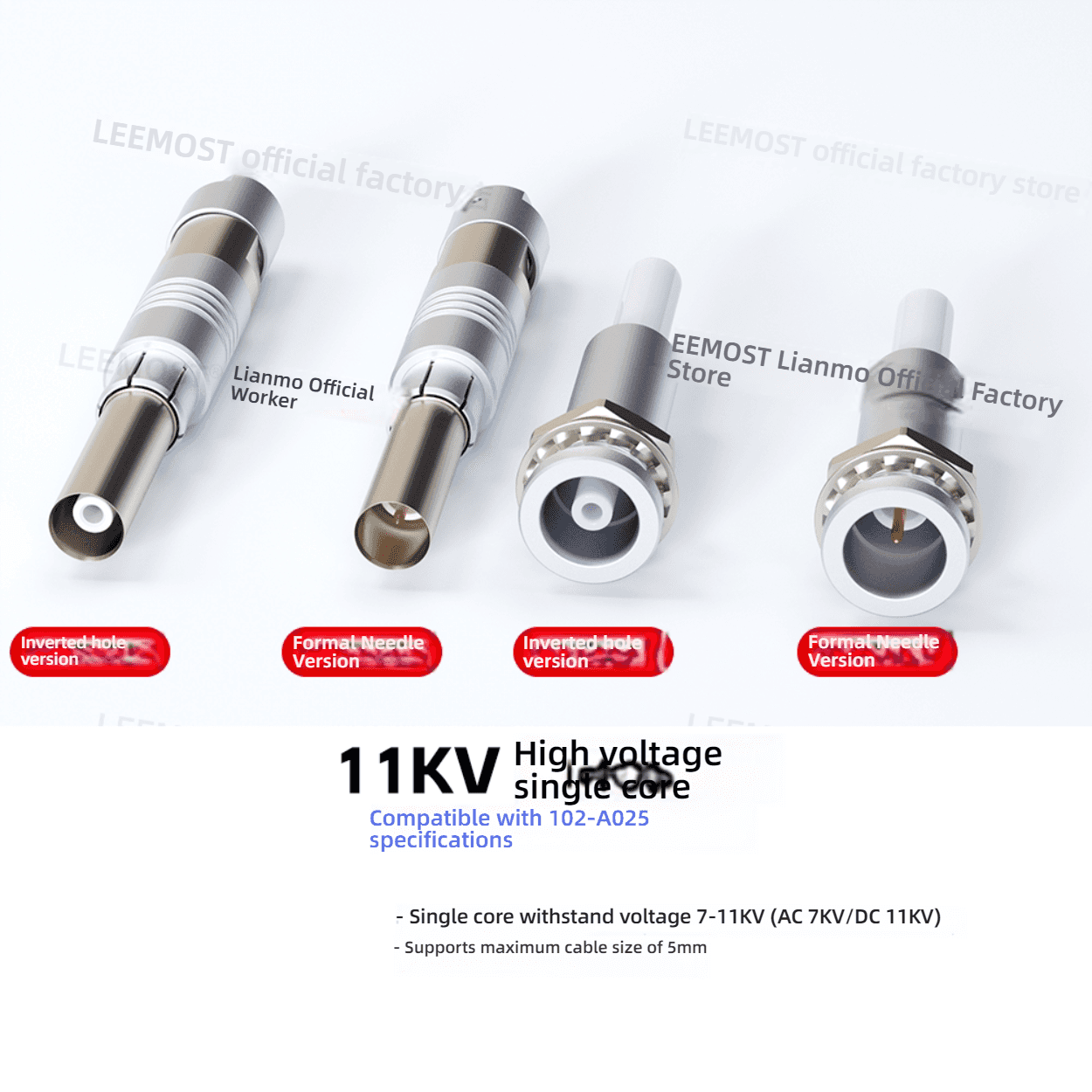

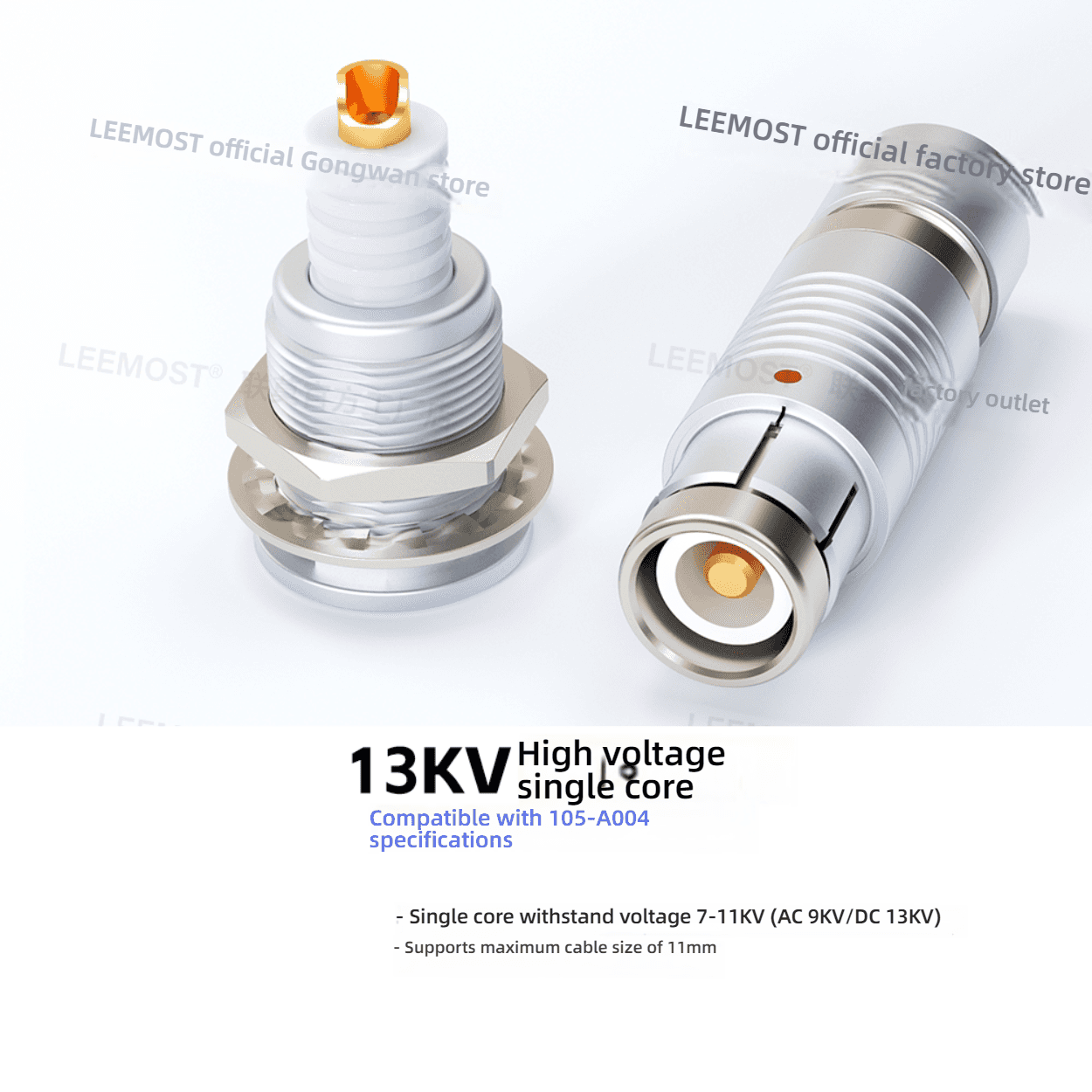

This high‑voltage aviation connector is designed for demanding industrial and power transmission applications. It is fully compatible with Fischer Core Series 102 / 104 / 105 connectors and offers options for single‑core and 4‑core configurations rated for 7 kV to 11 kV voltage levels. The rugged metal housing and precision contacts ensure reliable electrical performance and durable operation. Fischer Core Series is renowned for high voltage and mixed connectivity options.
Key Features:
Fischer Compatible: Intermateable with Fischer Series 102, 104, and 105 circular connectors widely used in aerospace and industrial systems.
High Voltage Support: Designed for high voltage applications up to 7 kV and 11 kV (depending on contact arrangement and insulating material).
Multiple Core Options: Available in single‑core and 4‑core layouts for power distribution and mixed signal applications.
Robust Construction: Heavy‑duty metal shell for mechanical strength, shielding, and industrial durability.
Push‑Pull or Screw Coupling: Depending on specific model choice, ensures secure mating and ease of maintenance.
Waterproof and Sealed: Suitable for IP rated protection when correctly mated and equipped with seals, ideal for harsh environments.
Applications:
High voltage power delivery and distribution
Industrial automation and control systems
Aircraft ground power and auxiliary systems
High voltage test equipment
Defense and aerospace electronics systems
| Parameter | Specification |
|---|---|
| Connector Series Compatibility | Compatible with Fischer Core 102, 104, 105 series circular connectors |
| Voltage Rating | Up to 7 kV to 11 kV (based on contact type and insulation) |
| Contact Configuration | Single‑core, 4‑core high voltage arrangements |
| Insulation Material | High voltage PTFE / PEEK (typical for high voltage modules) |
| Contact Material | Gold plated high conductivity contacts |
| Shell Material | Metal alloy housing |
| Mating Cycles | ≥ 5000 (typical industrial grade) |
| Shielding | Full metal shielding |
| Environmental Protection | Sealed design for water and dust protection when equipped with correct gaskets |
| Mounting Type | Cable mount or panel mount |
| Temperature Range | -40 °C to +125 °C (application dependent) |
| Compliance | RoHS / CE compatible (depending on manufacturing certification) |
This high‑voltage aviation connector is engineered for reliable power transmission under demanding conditions, with certifications and construction compatible with the trusted Fischer Core Series circular connector system. Its design supports both single‑core high voltage power feeds and multi‑core mixed configurations, making it suitable for industrial automation, aerospace power systems, and complicated high voltage installations where performance, durability, and compatibility matter.
