Medical PCB plastic socket PKG CKB 0P/1P/2P board mount connector with long bent pins and straight pins. Reliable circular medical connector for healthcare and electronic devices.

The medical PCB plastic socket PKG CKB 0P/1P/2P board mount connector is designed for secure and reliable integration into printed circuit boards (PCB) used in healthcare and medical electronic devices. Available with long bent pins and straight pin configurations, this circular medical connector provides flexible installation options for compact PCB layouts.

Manufactured with medical-grade insulated plastic housing, the connector ensures lightweight structure, strong electrical insulation, and stable signal transmission. It is widely used in patient monitoring systems, diagnostic instruments, laboratory equipment, and portable medical devices requiring board-level connectivity.

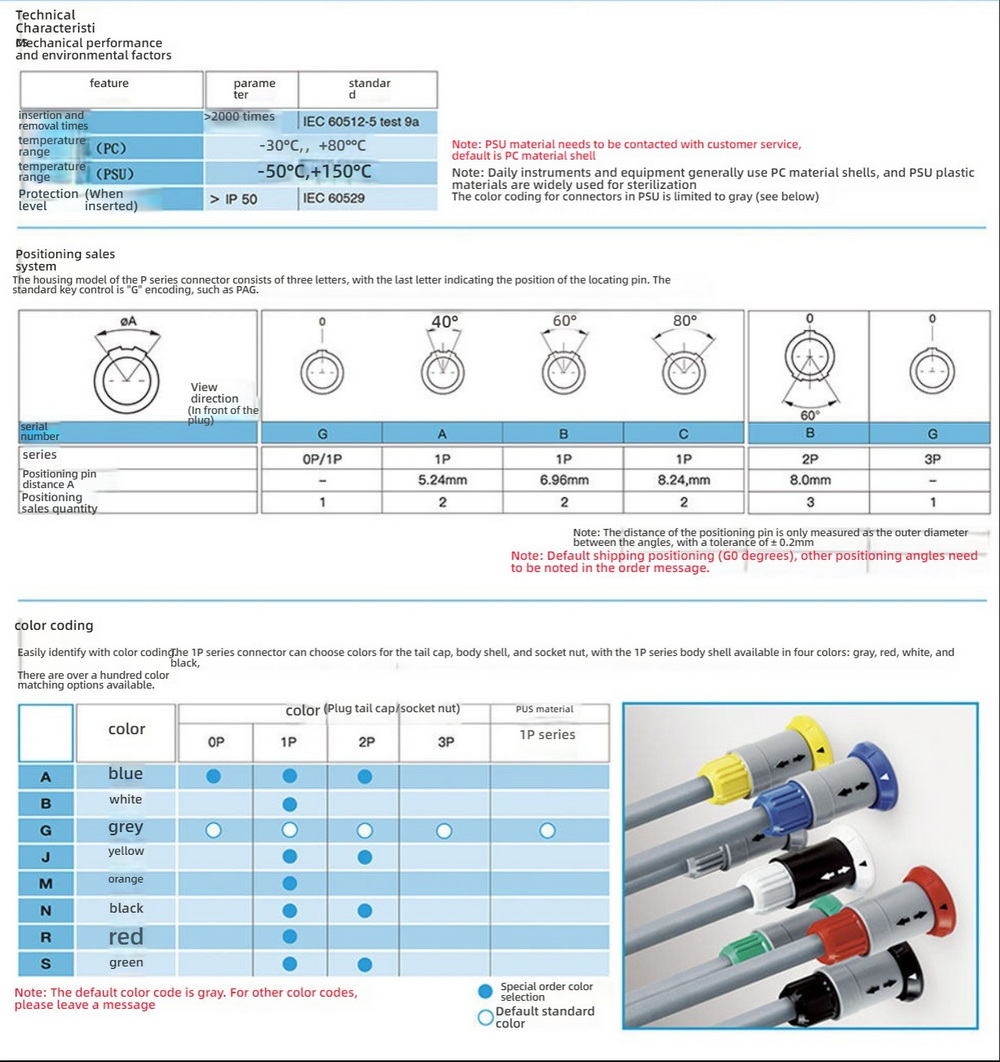

Technical Specifications

Feature	Description
Series	PKG / CKB
Connector Type	PCB Board Mount Plastic Socket
Pin Options	0P / 1P / 2P

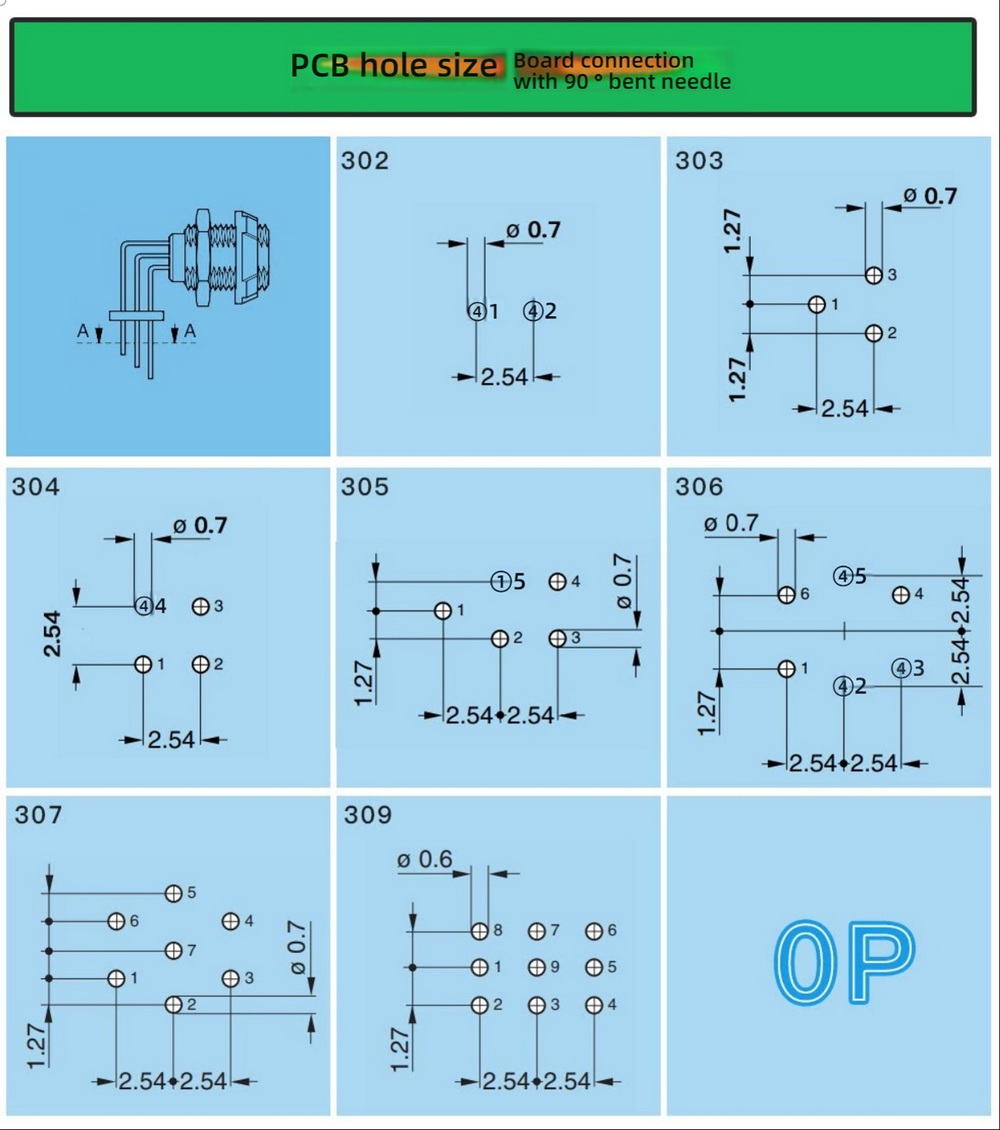

Pin Style	Long Bent Pin / Straight Pin
Mounting Type	PCB Board Mount
Housing Material	Medical-grade plastic
Contact Material	Copper alloy
Contact Plating	Gold plated
Insulation Type	High-performance electrical insulation
Operating Temperature	-20°C to +85°C
Applications	Medical devices, healthcare electronics, PCB systems

Key Features

PCB board mount medical connector
Available in long bent pin and straight pin versions
0P / 1P / 2P configurations
Lightweight medical-grade plastic housing
Strong electrical insulation performance
Stable signal transmission
Compact design for space-saving PCB layouts
Suitable for healthcare and diagnostic electronics

Applications

Patient monitoring devices
Diagnostic and imaging systems
Portable medical instruments
Laboratory testing equipment
Beauty and aesthetic medical devices
Healthcare electronic control boards

Performance Advantages

The PKG CKB PCB board mount connector provides reliable and secure board-level connectivity for medical electronic systems. The long bent pin option allows flexible PCB routing, while the straight pin configuration supports direct vertical mounting.

Its insulated plastic housing enhances electrical safety and reduces overall device weight. Designed for precision medical equipment, this connector ensures long-term durability and stable electrical performance.
