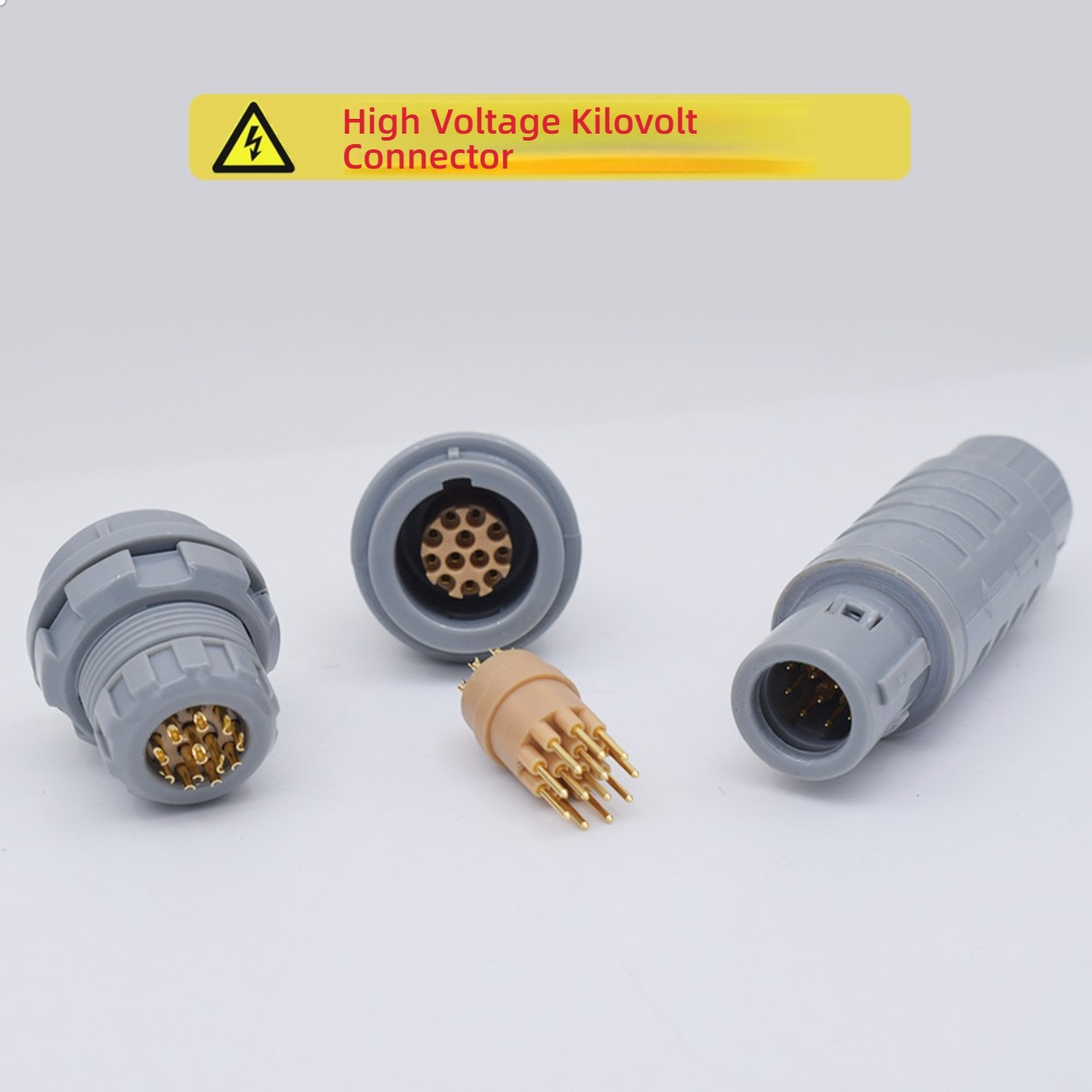

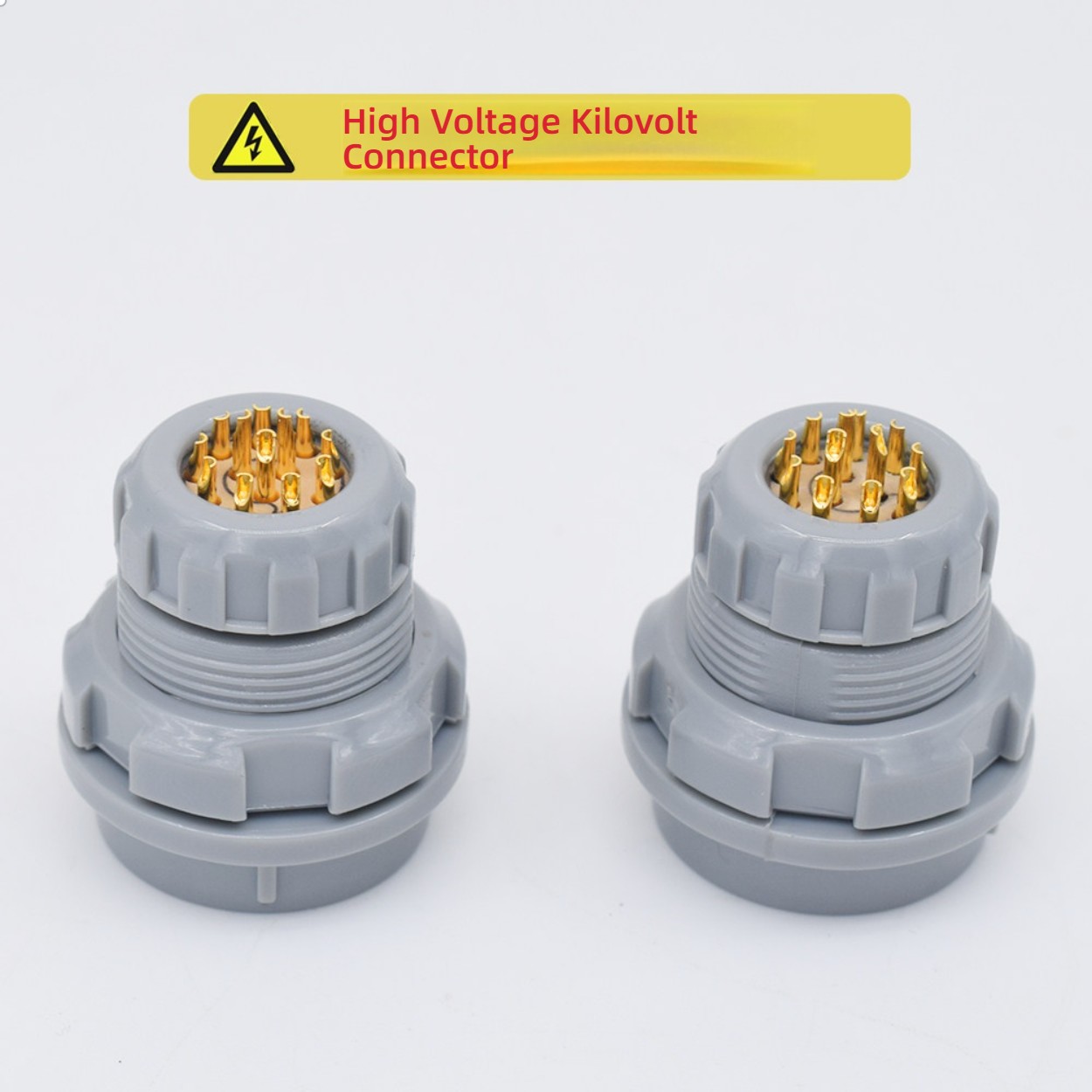

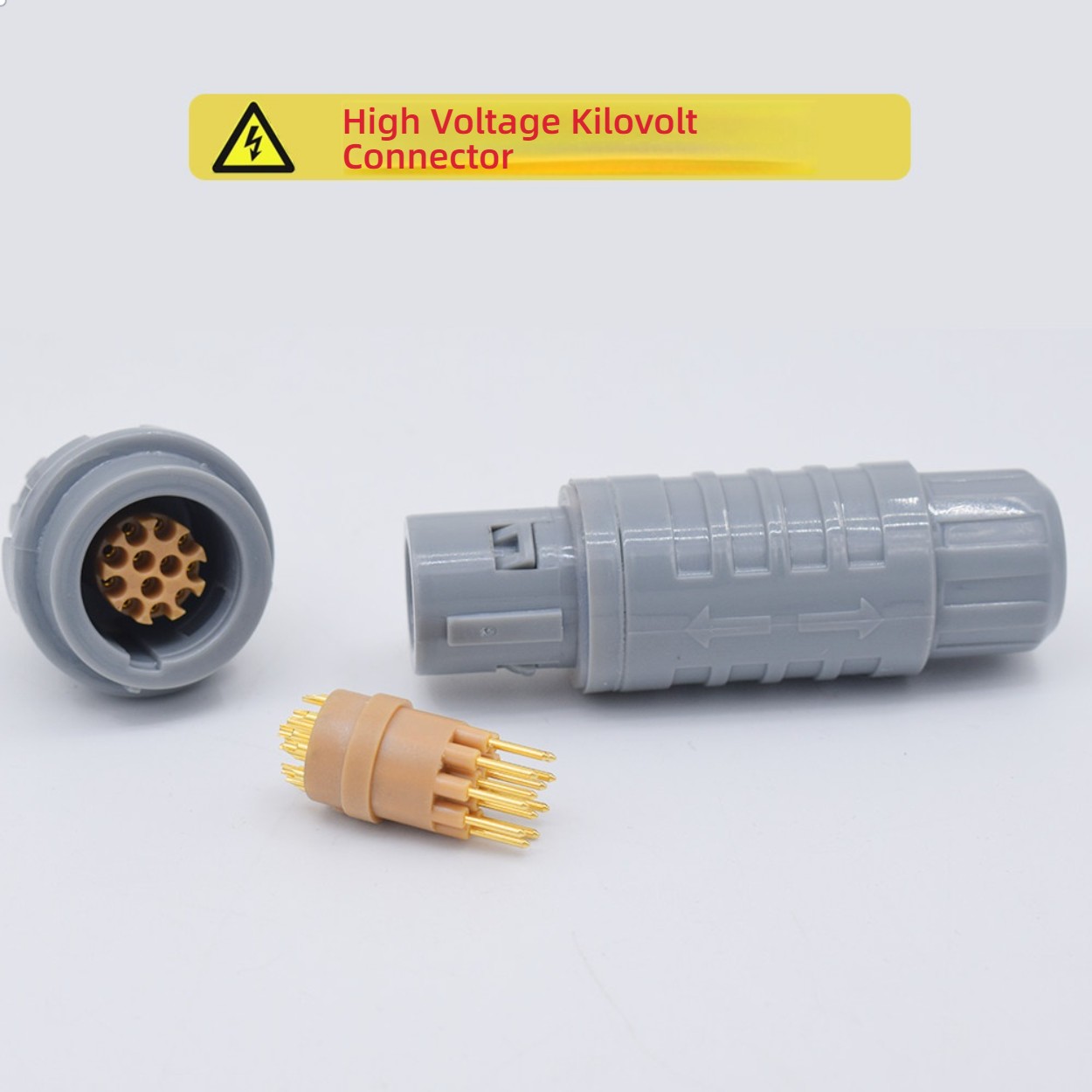

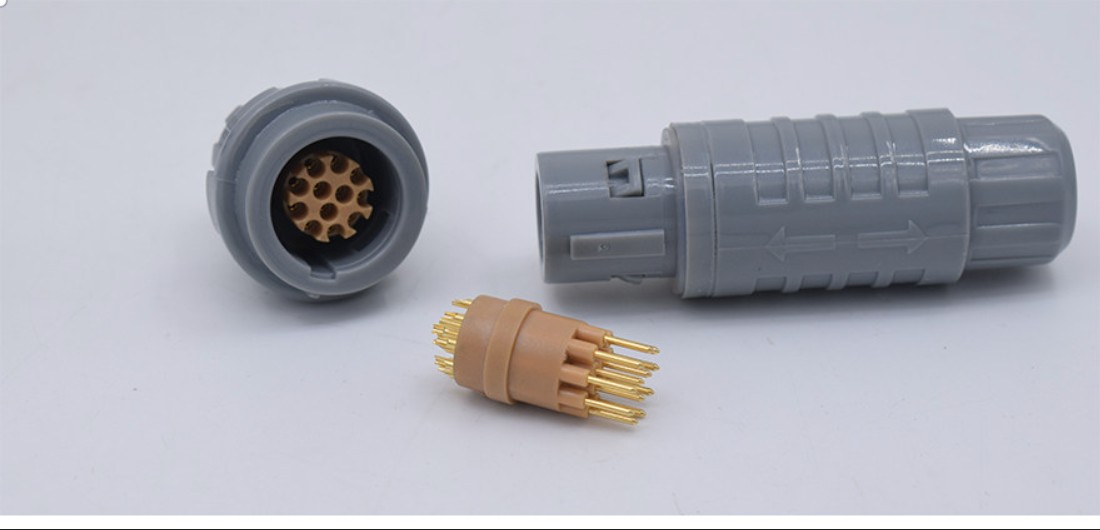

3P plastic push-pull self-locking circular connector M20 with 12 pins, rated for 3000V high voltage. Reliable plug & socket connector for industrial, medical, and electronic applications.
The 3P plastic push-pull self-locking circular connector with M20 mounting is designed for high-voltage applications requiring secure and reliable connections. Featuring 12-pin configurations and rated for up to 3000V, this plug & socket connector ensures safe, stable, and high-performance signal and power transmission for industrial, medical, and electronic equipment.
The push-pull self-locking mechanism allows fast mating and secure engagement while preventing accidental disconnection. Its durable plastic housing provides insulation and resistance to mechanical stress, making it suitable for harsh environments.
| Feature | Description |
|---|---|
| Series | 3P Plastic Circular Connector |
| Pin Count | 12 Pins |
| Voltage Rating | 3000V High Voltage |
| Mounting Hole | M20 |
| Connector Type | Plug & Socket |
| Locking Mechanism | Push-Pull Self-Locking |
| Housing Material | Insulated Plastic |
| Contact Material | Copper Alloy |
| Contact Plating | Gold Plated |
| Operating Temperature | -40°C to +125°C |
| Applications | Industrial equipment, medical devices, high voltage electronics |
12-pin high voltage circular connector rated 3000V
Push-pull self-locking mechanism for secure mating
M20 panel mount compatible
Durable plastic housing with high electrical insulation
Compact design for industrial and medical applications
Reliable signal and power transmission
Resistant to vibration and mechanical stress
Suitable for harsh and high-voltage environments
Industrial automation equipment
High voltage electronic systems
Medical device power connectors
Test and measurement instruments
Communication and control devices
Laboratory and research equipment
The 3P plastic circular connector ensures safe and stable high-voltage transmission with long-term reliability. Its push-pull self-locking system allows quick installation and maintenance while preventing accidental disconnection. The M20 mounting design ensures secure panel integration in compact setups.
Engineered for demanding industrial and medical environments, this connector provides consistent electrical performance and mechanical durability.
Individual protective packaging
Bulk industrial supply available
OEM customization supported
Custom Cable assembly services available
Technical documentation upon request
