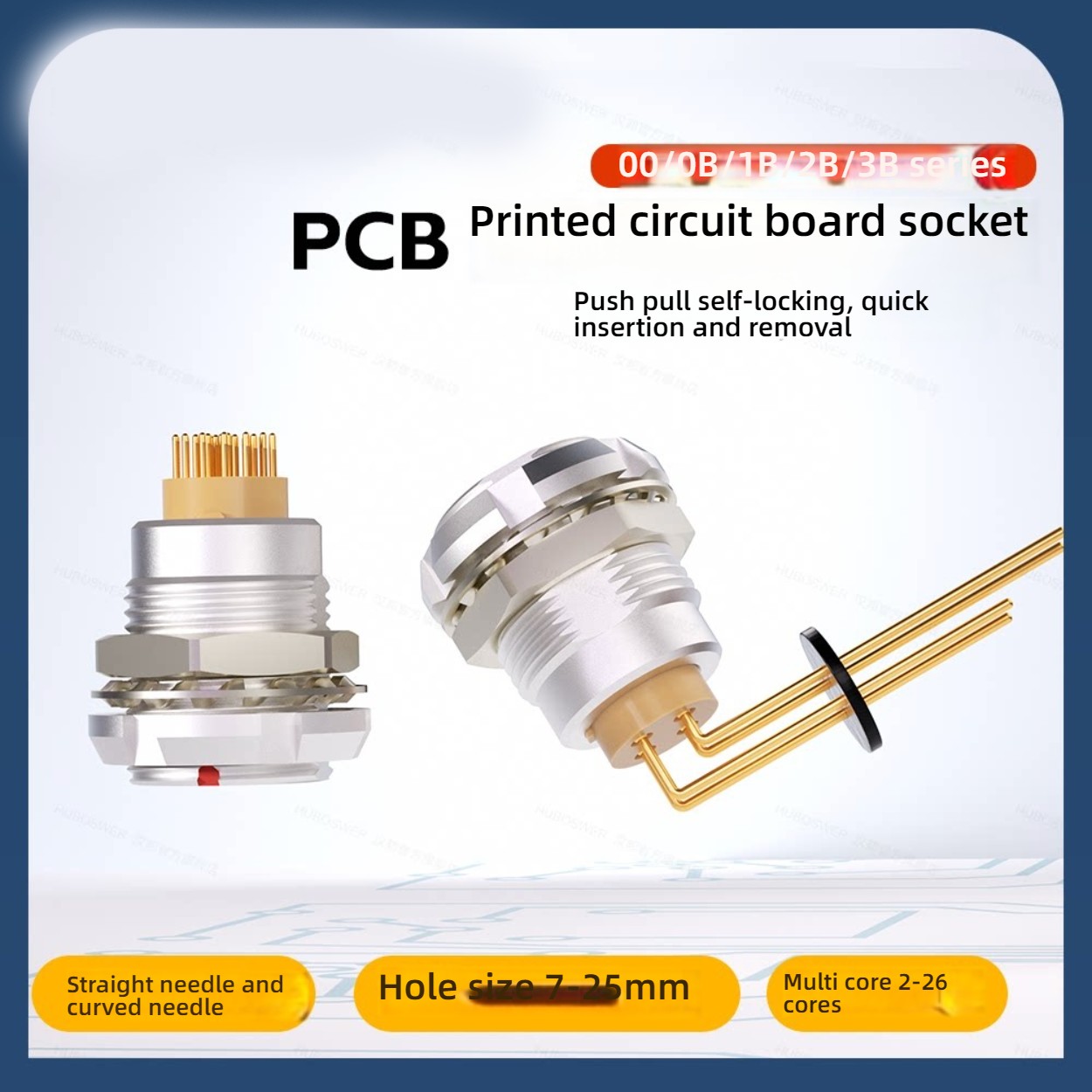

Push-Pull Locking Long Straight & Right-Angle Pin ECG 00 2B PCB Socket Connector for LEMO Aviation Applications

This LEMO ECG 00 2B PCB socket connector features a push-pull locking mechanism with long straight and 90° right-angle pins for secure soldering onto circuit boards. Equipped with dual mounting nuts, it provides reliable fixation and mechanical stability. Compatible with a wide range of LEMO systems, this connector is designed for high-reliability applications in aviation, medical, industrial, and test equipment. The push-pull locking design allows easy mating and unmating while ensuring a secure electrical connection. Ideal for PCB integration, maintenance, and harsh environment applications.

Specifications:

• Series: ECG 00 2B

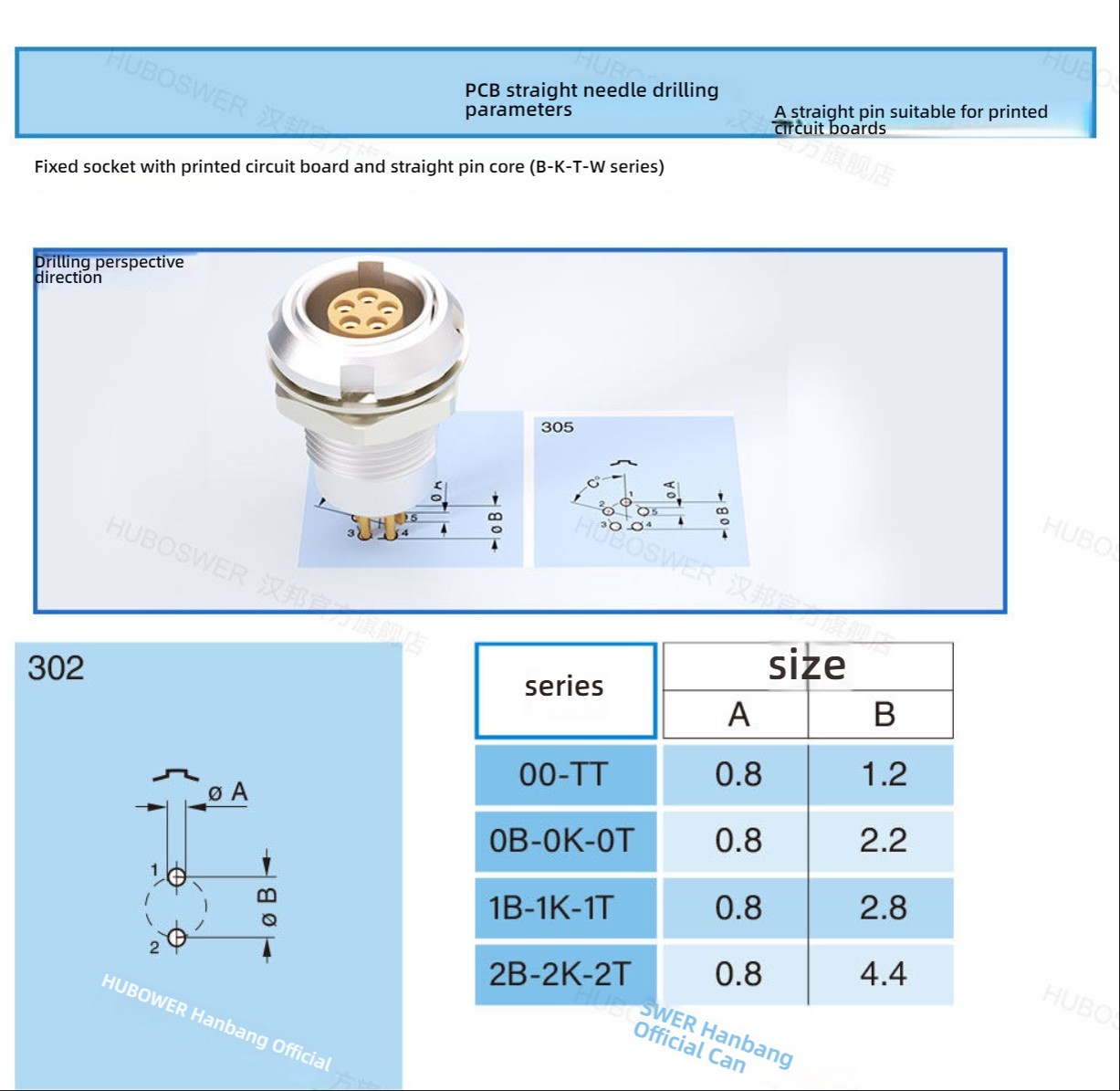

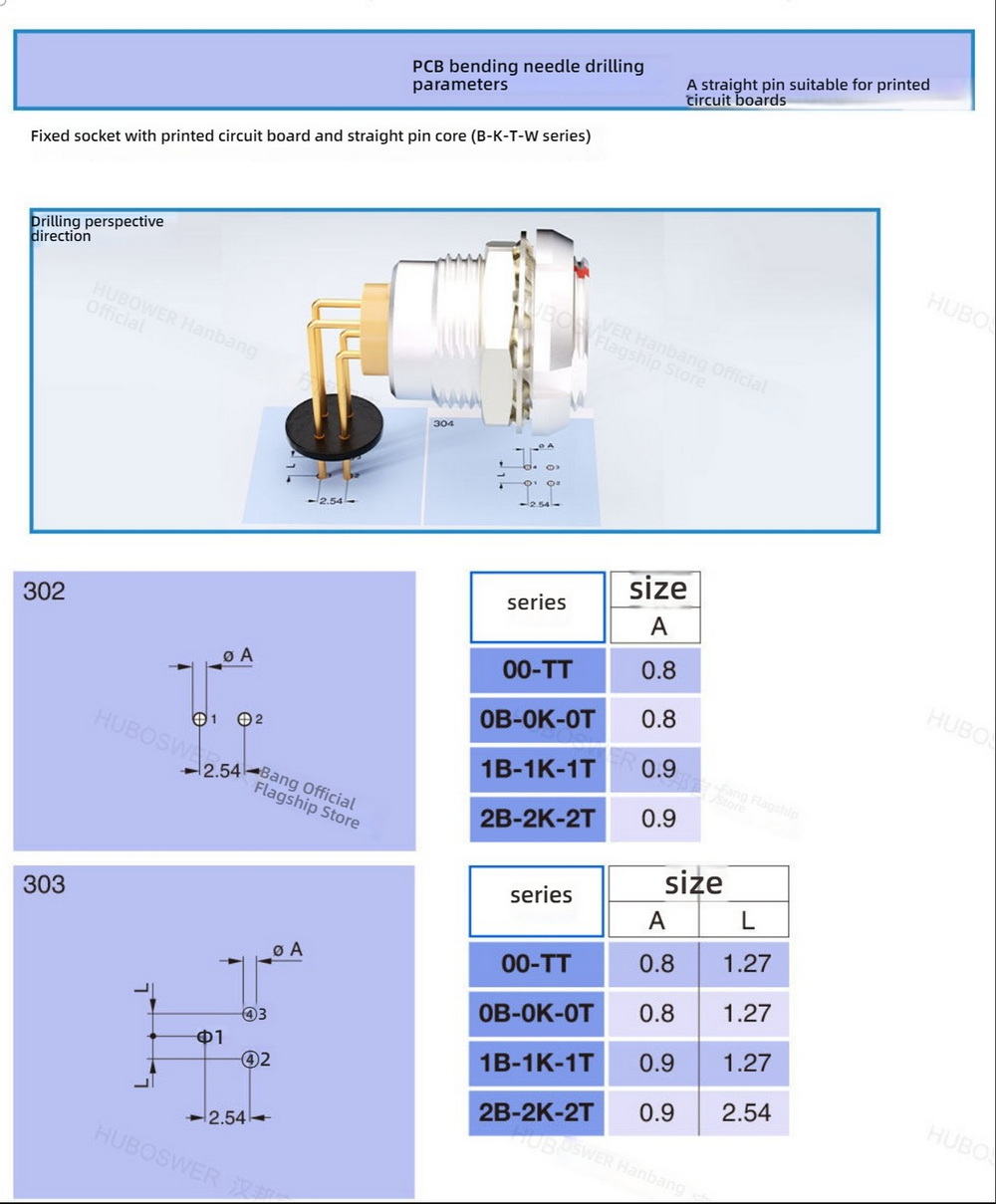

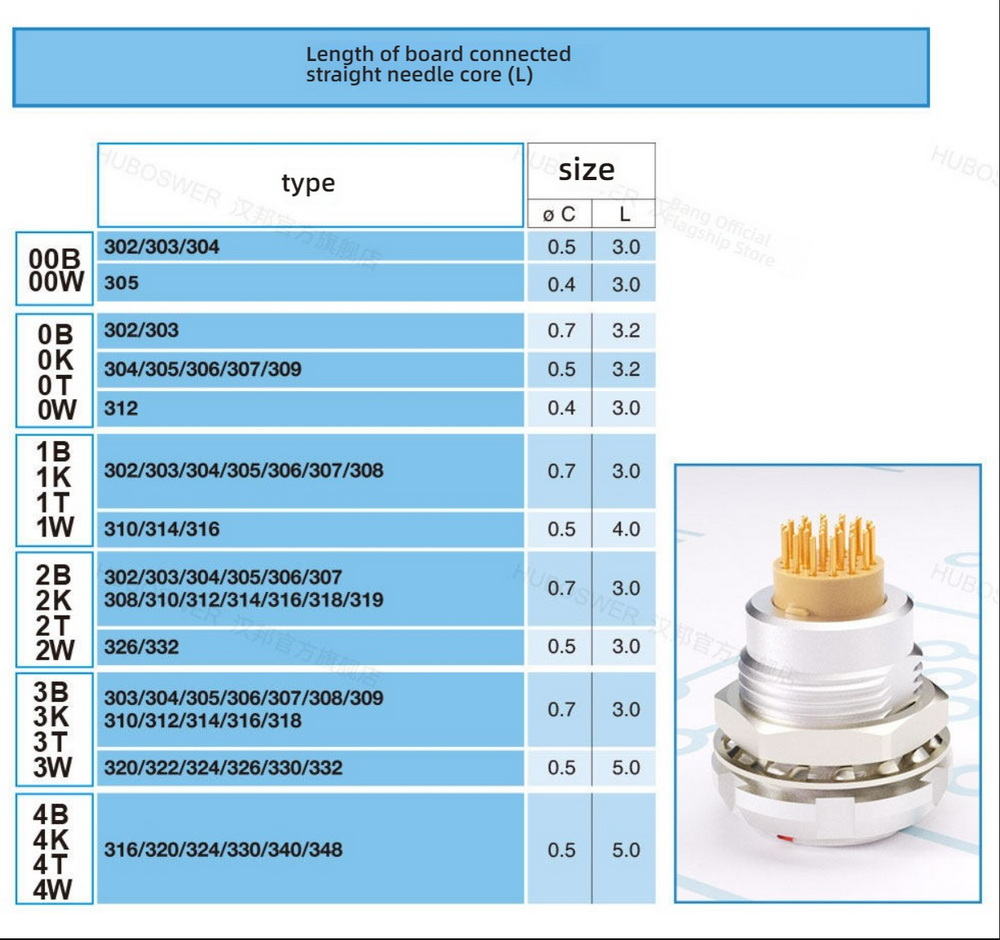

• Pin Type: Long straight & 90° right-angle pins

• Connection Mechanism: Push-pull locking

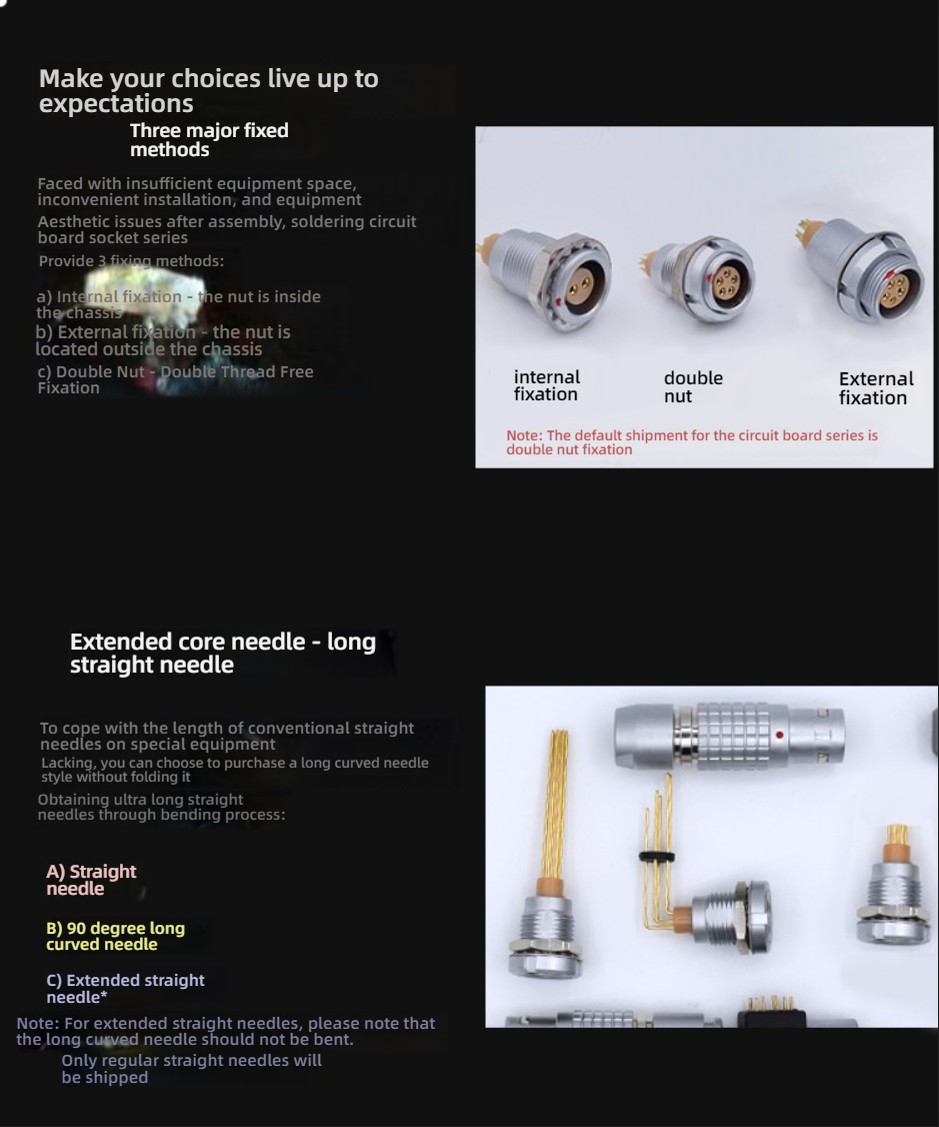

• Mounting: Dual nuts for PCB fixation

• Material: High-grade metal shell and copper alloy contacts

• Contact Plating: Nickel or gold-plated (depending on model)

• Rated Current/Voltage: ≤5A / ≤250V

• Operating Temperature: -40°C to +125°C

• Applications: Aviation, medical devices, industrial automation, test & measurement equipment

Features:

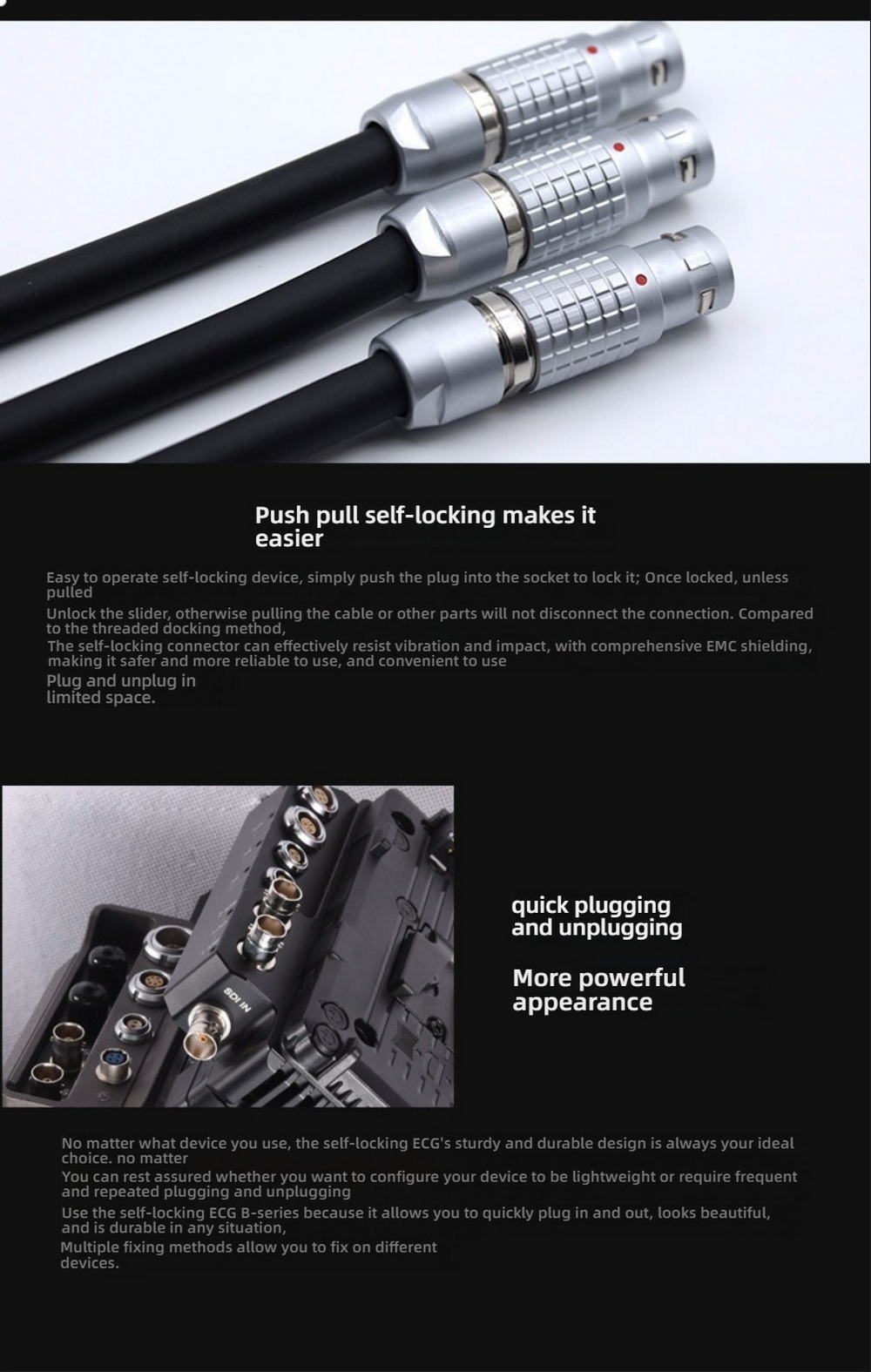

• Push-pull self-locking design for fast and secure connection

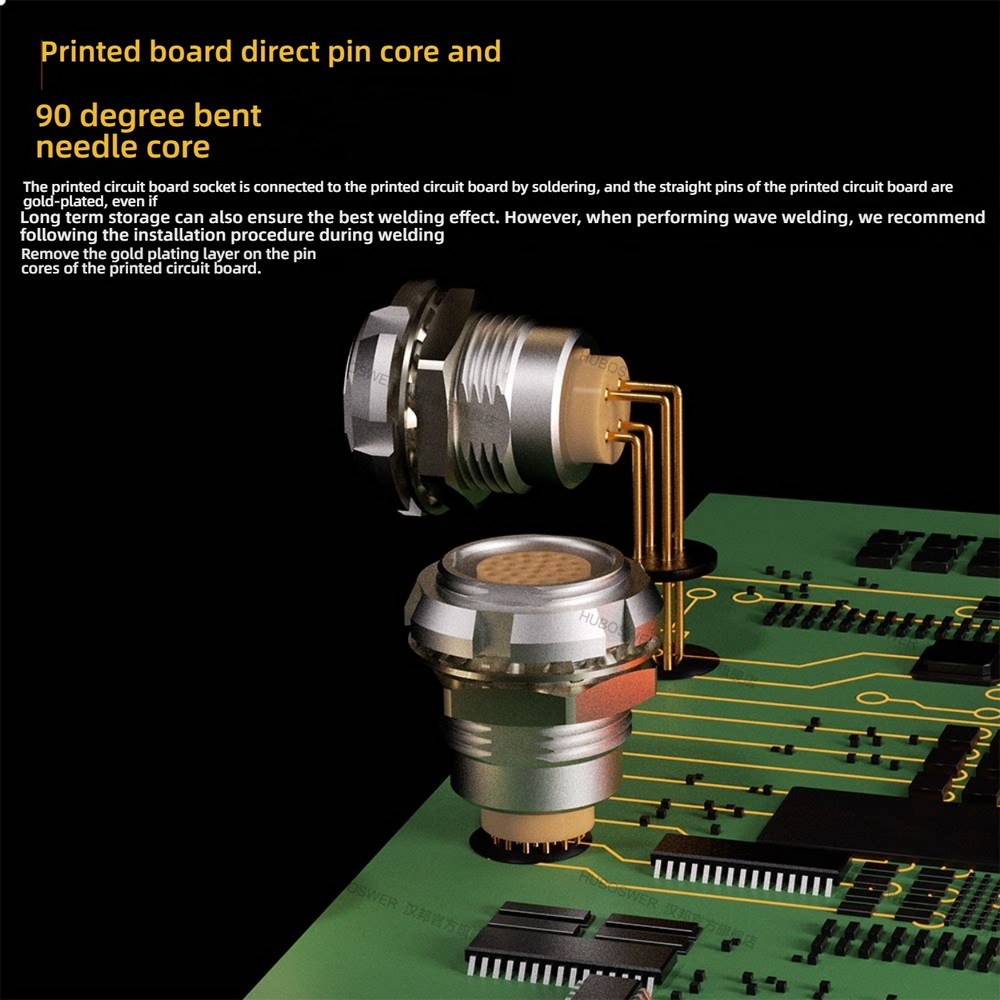

• Long straight and right-angle pins for flexible PCB integration

• Dual nuts ensure stable mounting on circuit boards

• High durability and resistance to vibration, corrosion, and mechanical stress

• Compatible with LEMO ECG series connectors

Applications:

• Aviation connectors: cockpit instrumentation and avionics systems

• Medical devices: diagnostic and monitoring equipment

• Industrial automation: sensors, control systems, and machinery

• Test & measurement: laboratory and field testing devices

Packaging & Service:

• Individually packaged to prevent damage during shipping

• Technical datasheets and selection guides available

• Custom PCB connector solutions and OEM support available

Image ALT Tags / Keywords:

• LEMO ECG 00 2B push-pull PCB socket connector front view

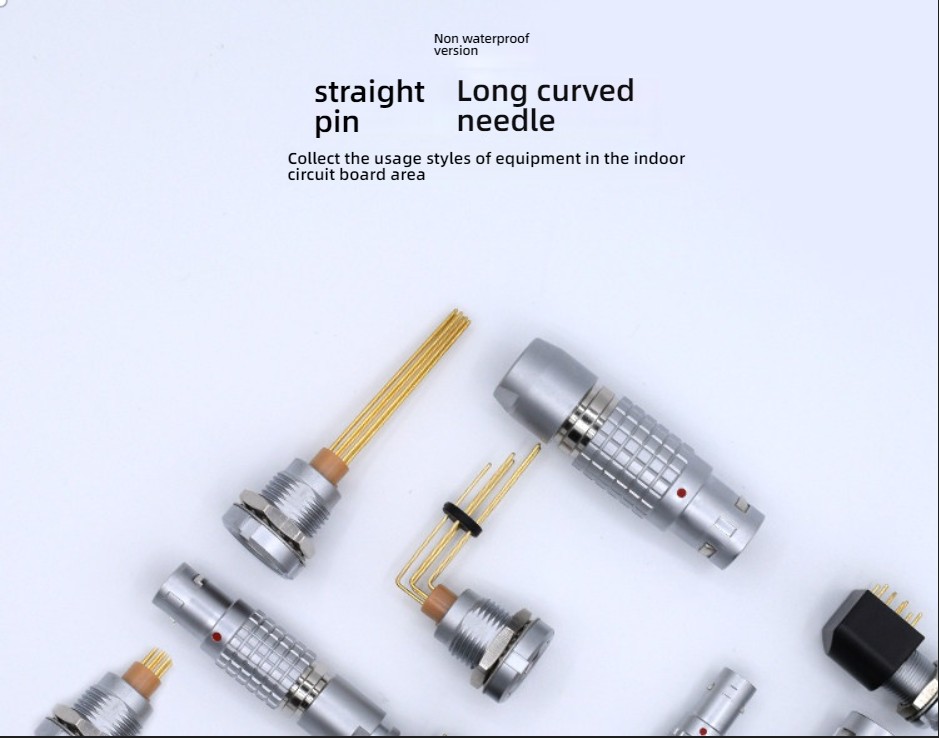

• Long straight and 90° right-angle pin connector side view
