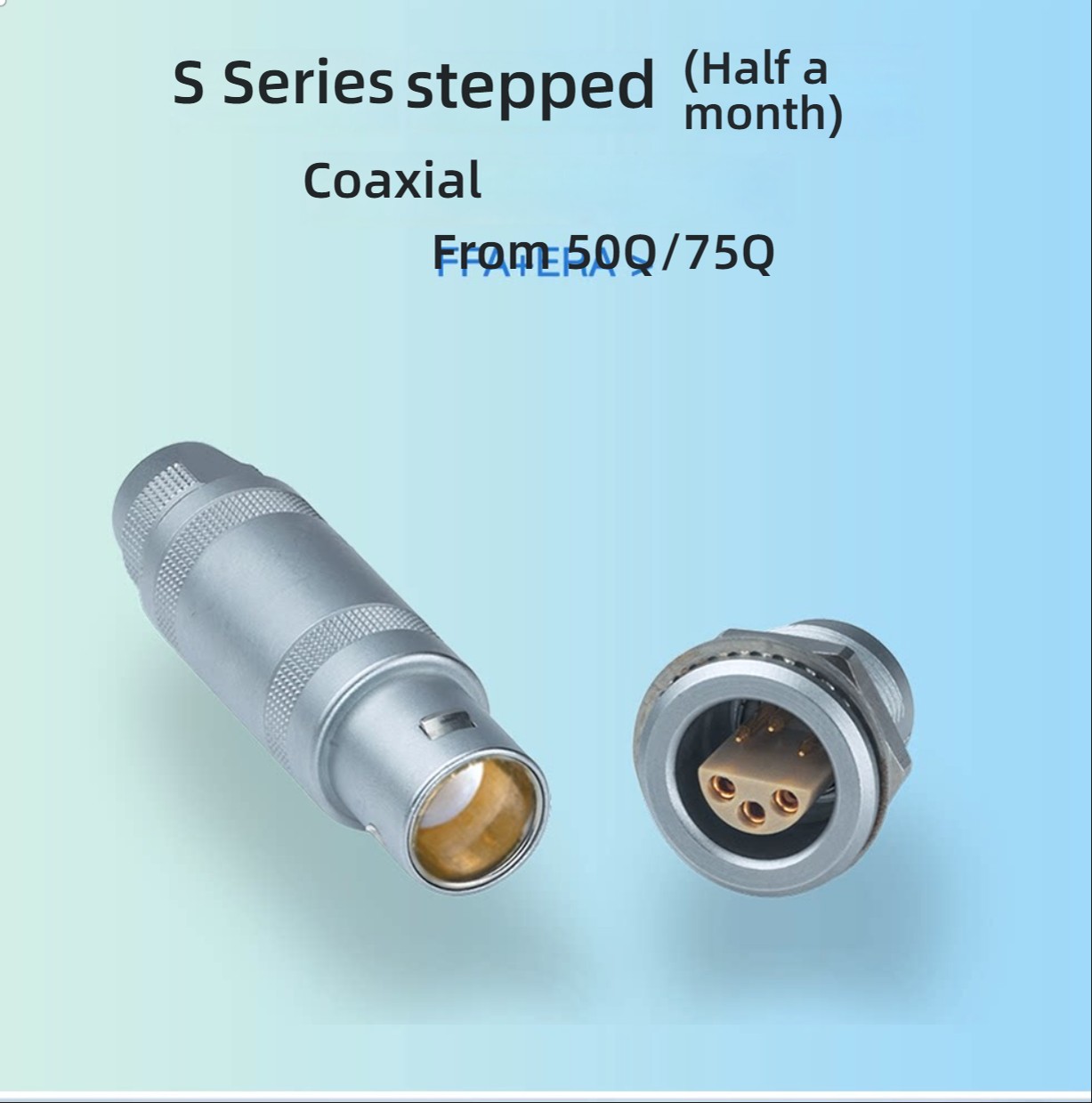

LEMO-Compatible PCA Floating Socket 00S/0S/1S/2S/3S 1-18 Pin Flaw Detector Cable Extension Aviation Connector

LEMO-Compatible PCA Floating Socket 00S/0S/1S/2S/3S 1-18 Pin Flaw Detector Cable Extension Aviation Connector

LEMO-compatible PCA floating socket 00S/0S/1S/2S/3S 1-18 pin aviation connector for flaw detector cable extension. Push-pull self-locking design for NDT and industrial applications.

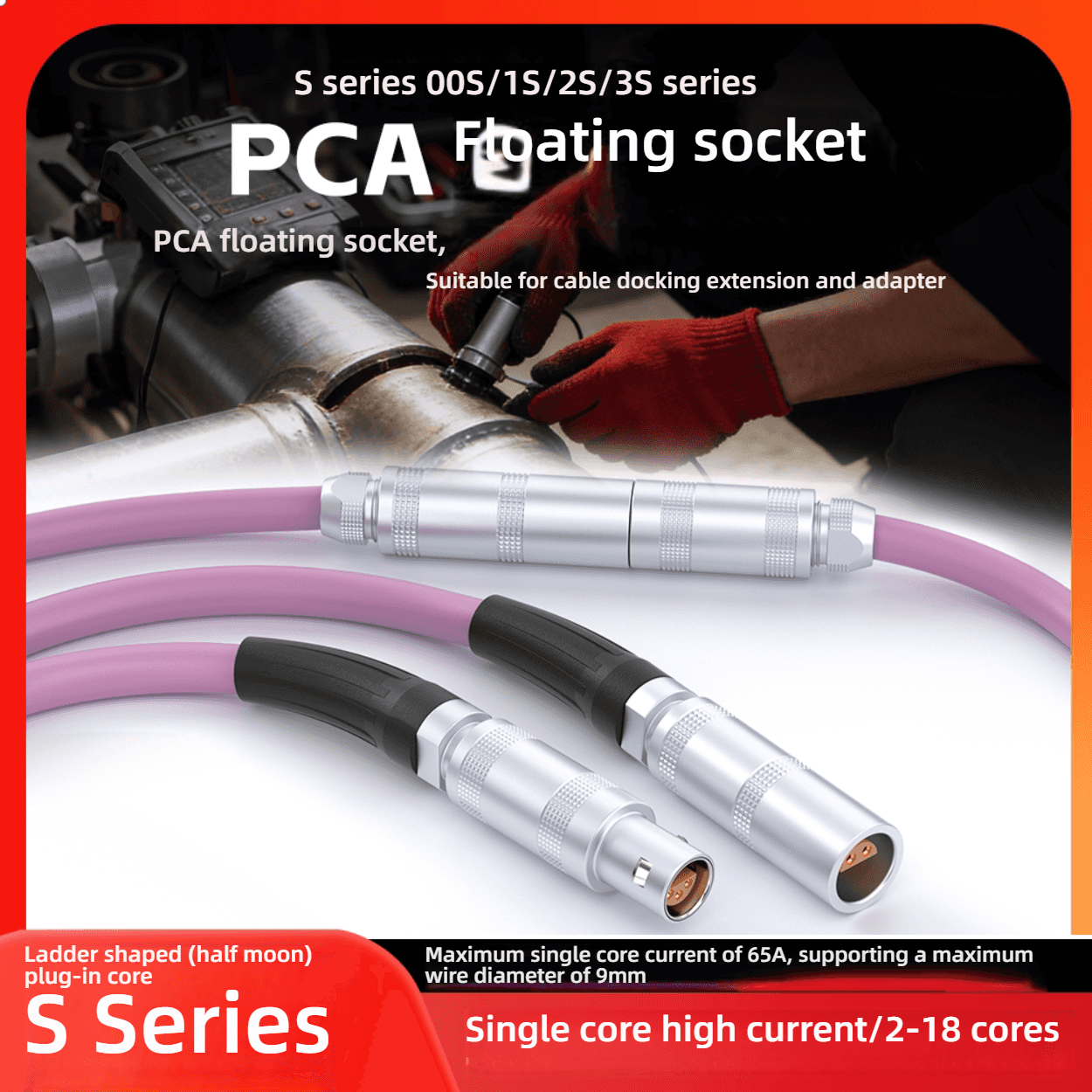

The LEMO-compatible PCA floating socket 00S/0S/1S/2S/3S series connector is designed for flaw detector cable extension and non-destructive testing (NDT) equipment. Available in 1-18 pin configurations, this aviation connector ensures secure and stable signal transmission for industrial inspection systems.

The floating socket structure compensates for slight alignment deviations during mating, reducing mechanical stress and ensuring reliable electrical contact. Equipped with a push-pull self-locking mechanism, the connector provides fast connection and secure locking even in vibration-prone industrial environments.

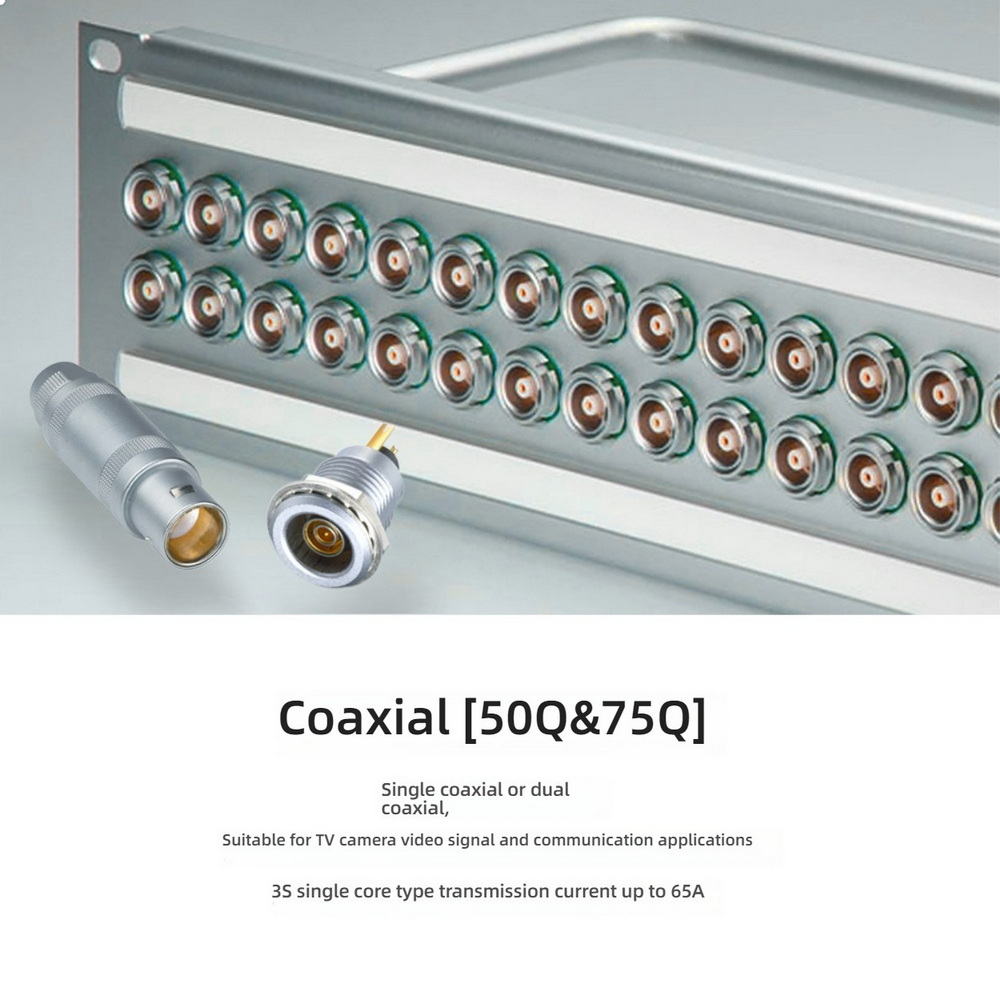

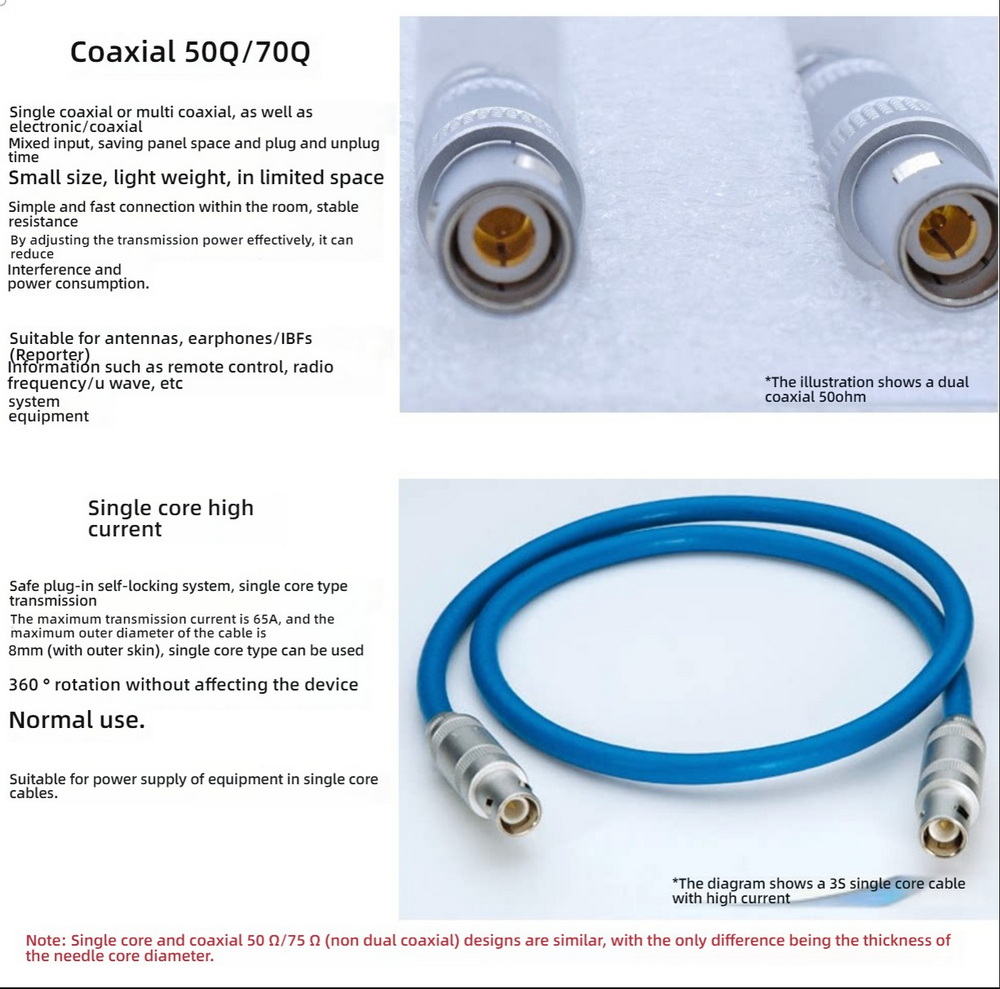

It is widely used in ultrasonic flaw detectors, precision testing instruments, and high-reliability industrial systems requiring stable coaxial or signal transmission.

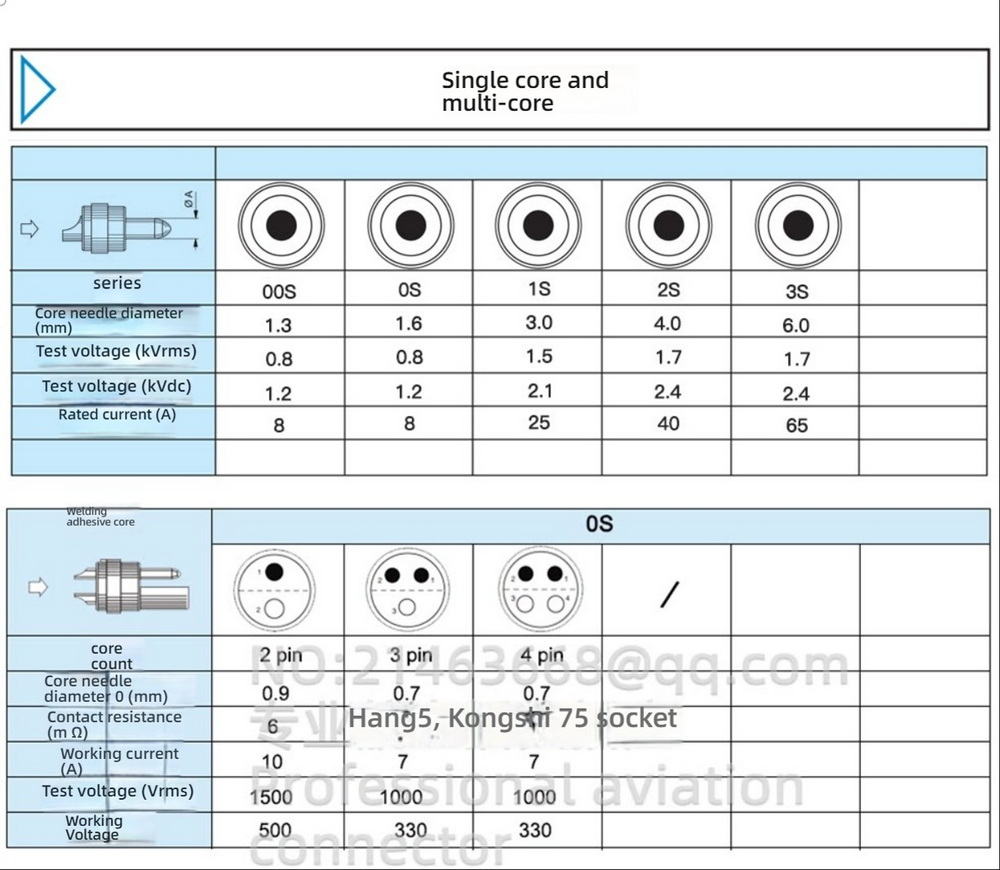

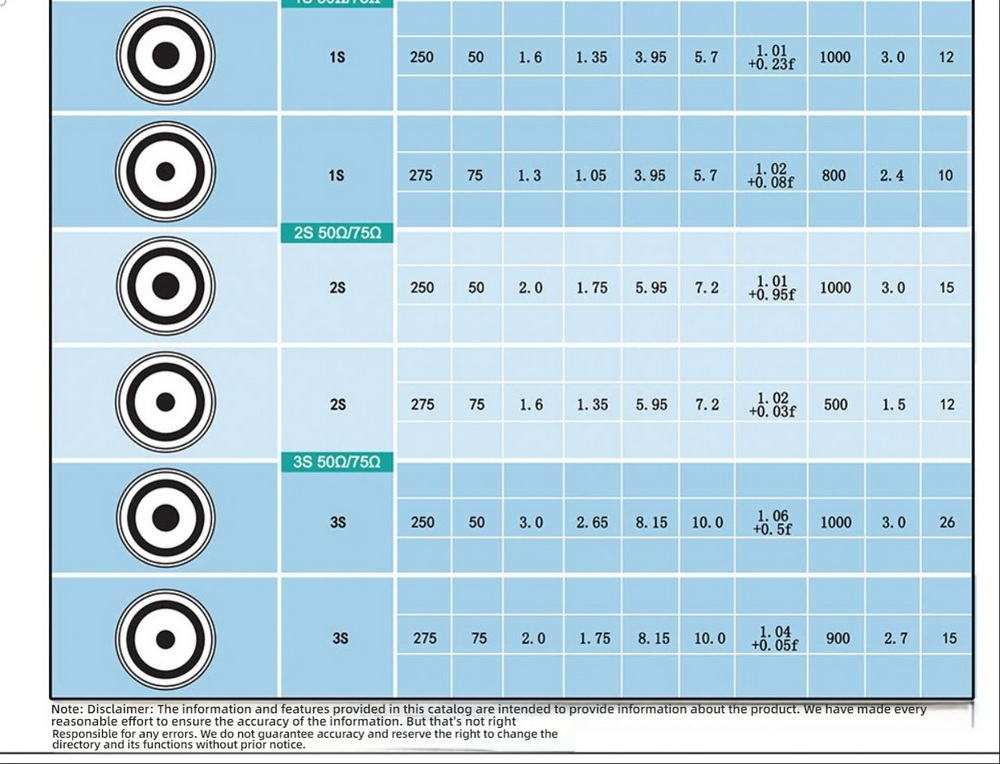

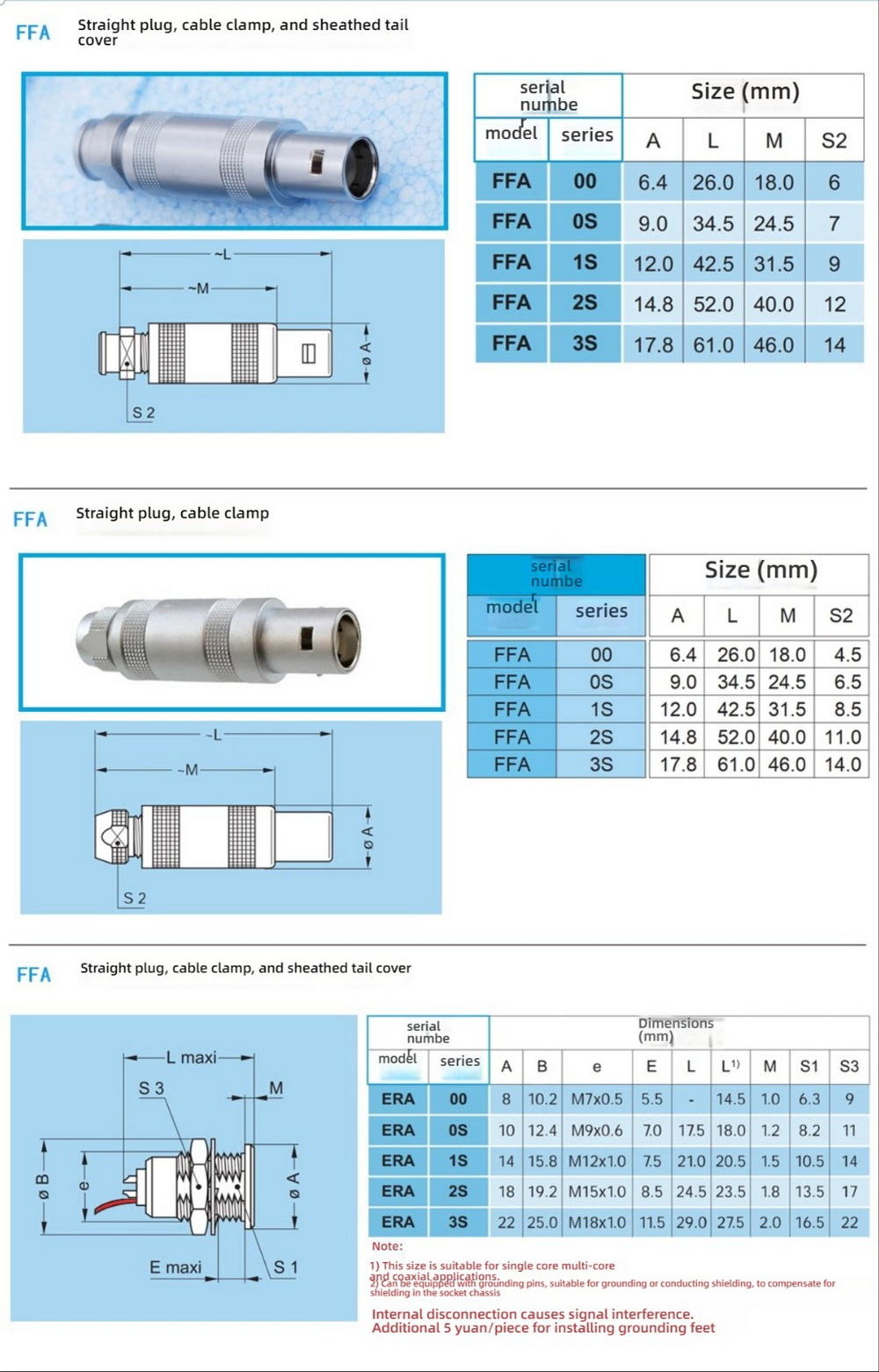

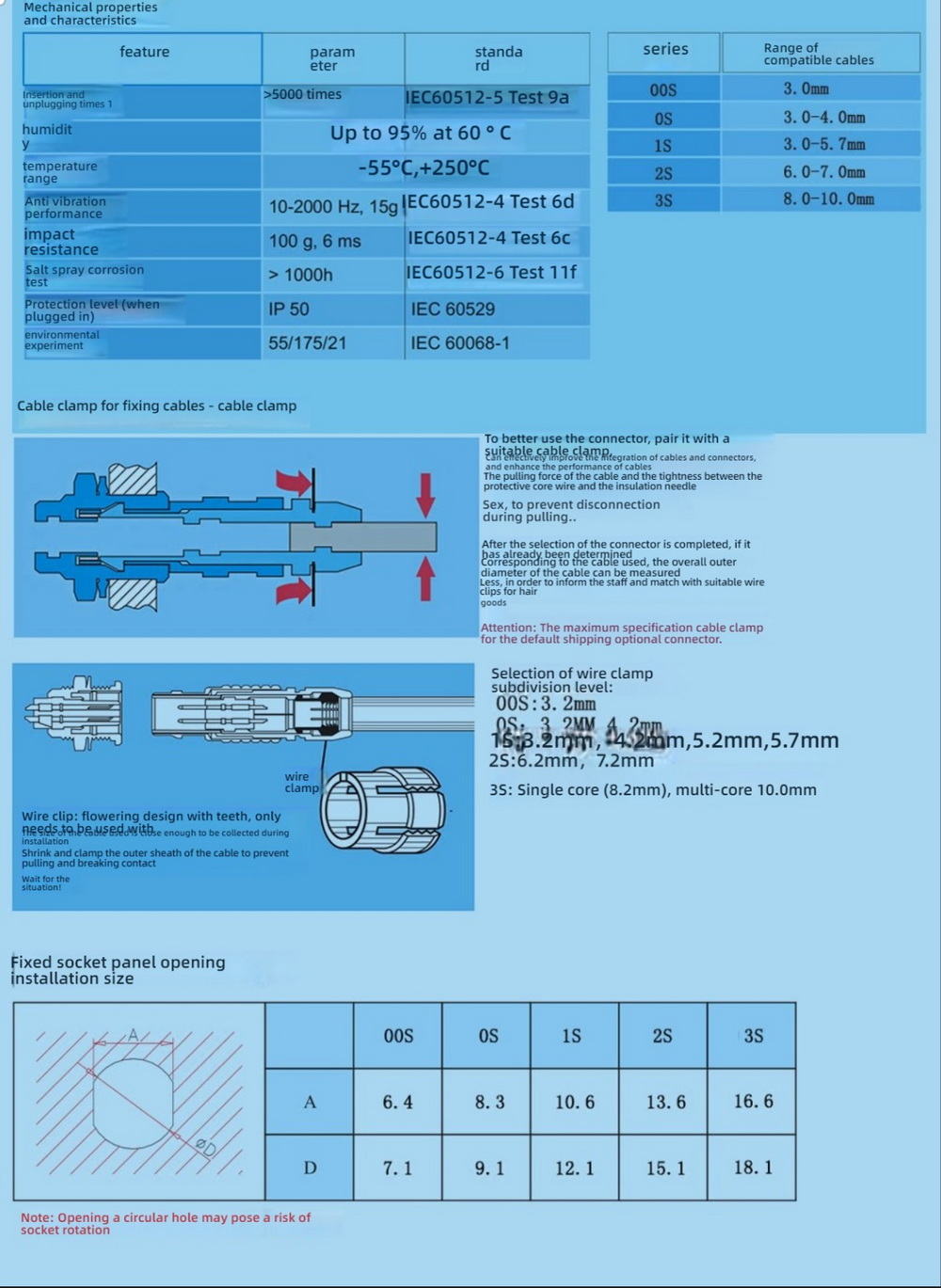

Technical Specifications

Feature	Description
Series	PCA 00S / 0S / 1S / 2S / 3S
Pin Count	1 – 18 pins
Connector Type	Floating Socket
Application	Cable-to-cable extension
Locking System	Push-pull self-locking
Shell Material	Metal alloy housing
Contact Material	Copper alloy
Contact Plating	Gold plated
Shielding	High EMI/RFI shielding performance
Rated Voltage	Up to 250V
Operating Temperature	-40°C to +125°C
Applications	Flaw detector, NDT systems, industrial inspection

Key Features

Floating socket structure for alignment compensation
1-18 pin configurations available
Push-pull self-locking for quick and secure mating
Designed for flaw detector cable extension
Excellent EMI shielding performance
Durable metal housing for harsh industrial environments
Reliable performance under vibration and mechanical stress
Compatible with 00S/0S/1S/2S/3S systems

Applications

Ultrasonic flaw detectors
Non-destructive testing (NDT) equipment
Industrial inspection systems
Precision measurement instruments
Aerospace and heavy industrial electronics
Cable extension solutions for testing devices

Performance Advantages

The PCA floating socket connector enhances reliability in cable extension applications by reducing mechanical strain during mating. Its push-pull locking system ensures stable electrical contact while allowing fast disconnection when required. Designed for high-performance inspection systems, this connector provides consistent signal integrity and long service life.
