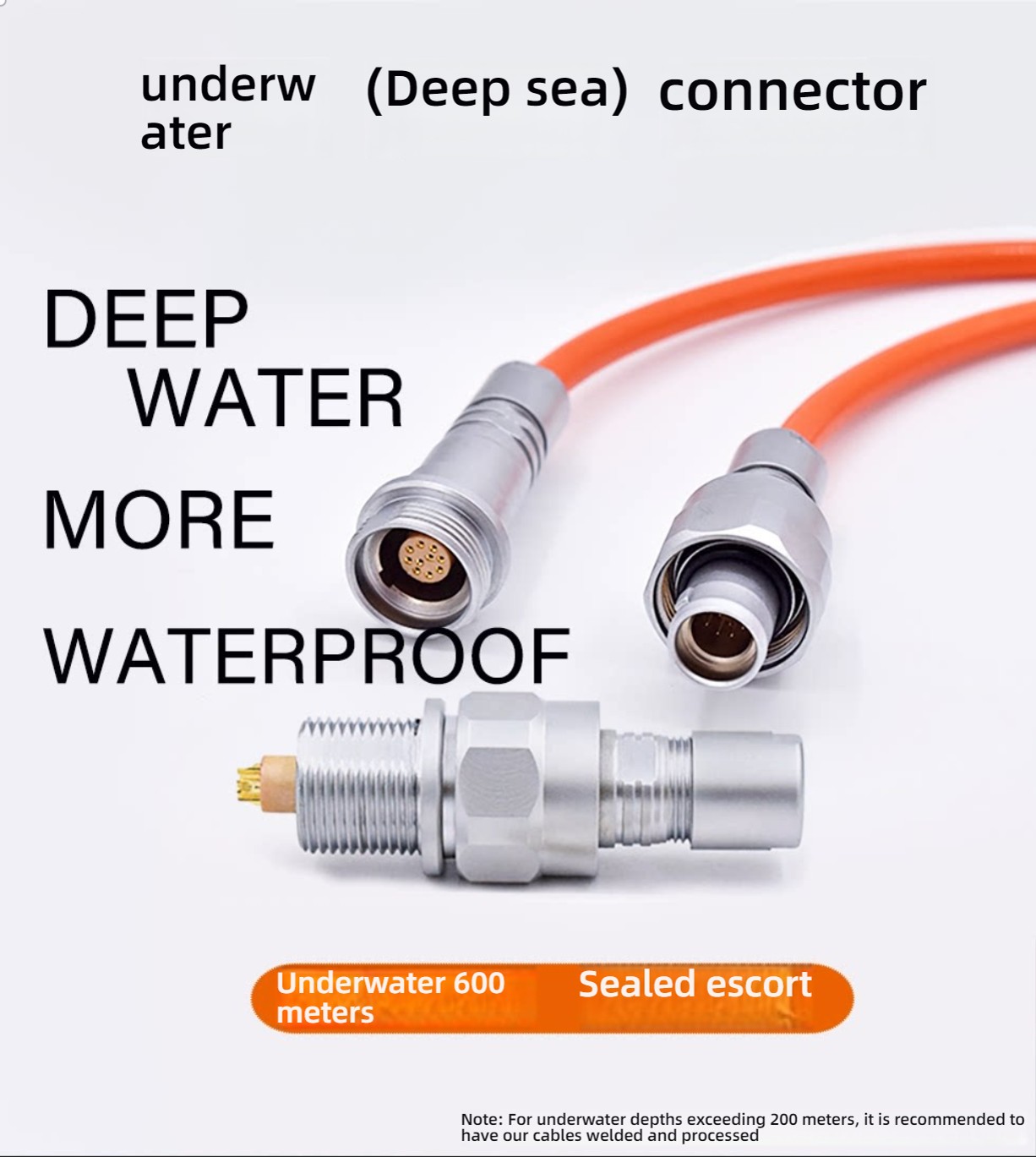

Deep sea 600m waterproof aviation FVG/HVG push-pull self-locking vacuum-sealed connector. IP68-rated submersible connector for underwater vehicles, marine instruments, and industrial applications.
The deep sea 600m waterproof aviation FVG/HVG connector is engineered for extreme underwater and high-pressure environments. Featuring a push-pull self-locking mechanism and vacuum-sealed construction, this circular connector ensures reliable electrical connections at depths up to 600 meters. IP68-rated, it offers complete protection against water, dust, and harsh marine conditions.
Constructed with high-strength metal alloy housing and gold-plated copper contacts, this connector guarantees superior electrical performance, vibration resistance, and long-term durability. Compatible with FVG and HVG series, it is ideal for submersible vehicles, underwater instrumentation, and industrial marine systems.

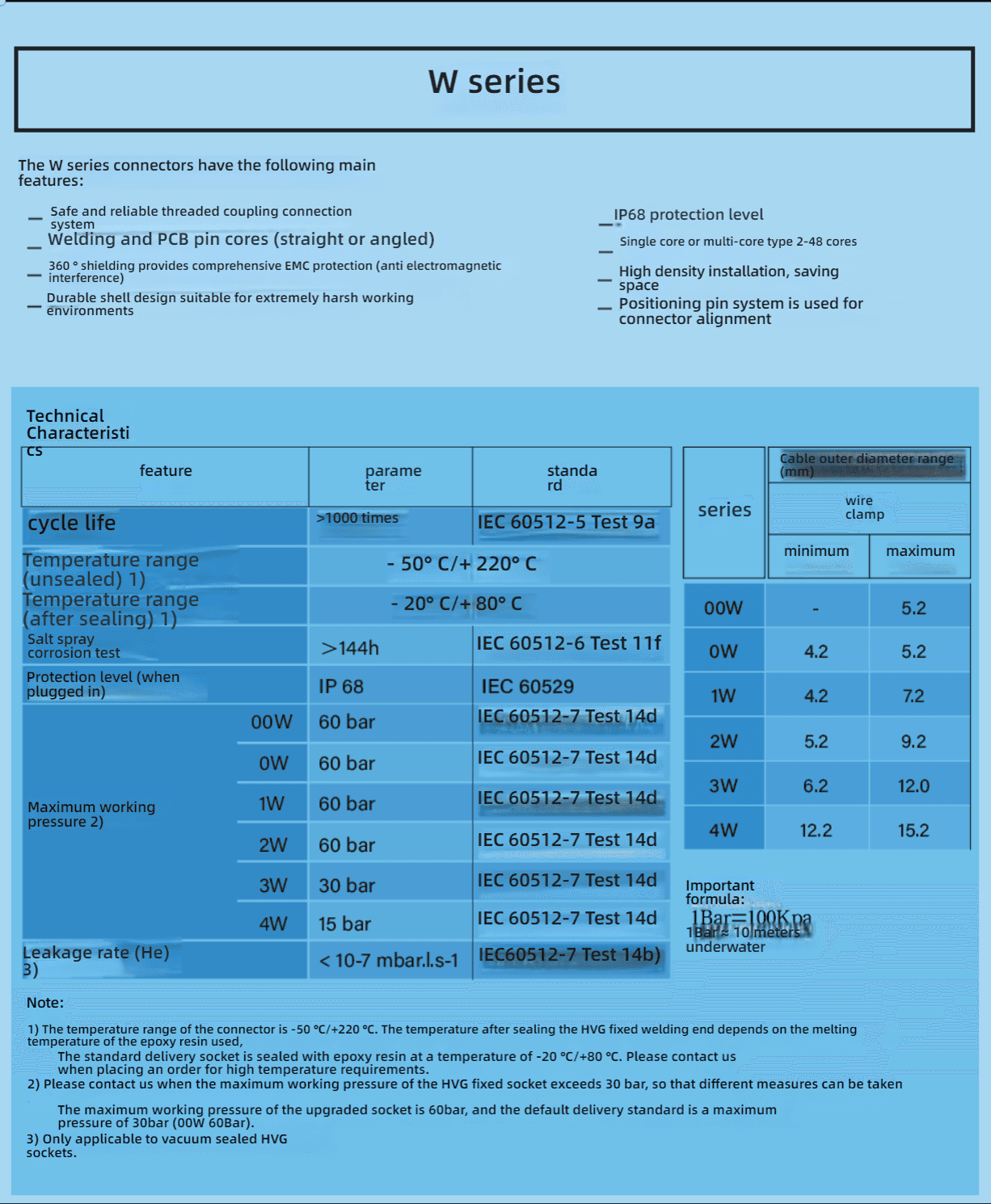

| Feature | Description |
|---|---|
| Series | FVG / HVG |
| Connector Type | Deep Sea Aviation Circular Connector |
| Locking Mechanism | Push-Pull Self-Locking |
| Waterproof Rating | IP68 (600 meters depth) |
| Seal Type | Vacuum-Sealed |
| Housing Material | Metal Alloy |
| Contact Material | Copper Alloy |
| Contact Plating | Gold Plated |

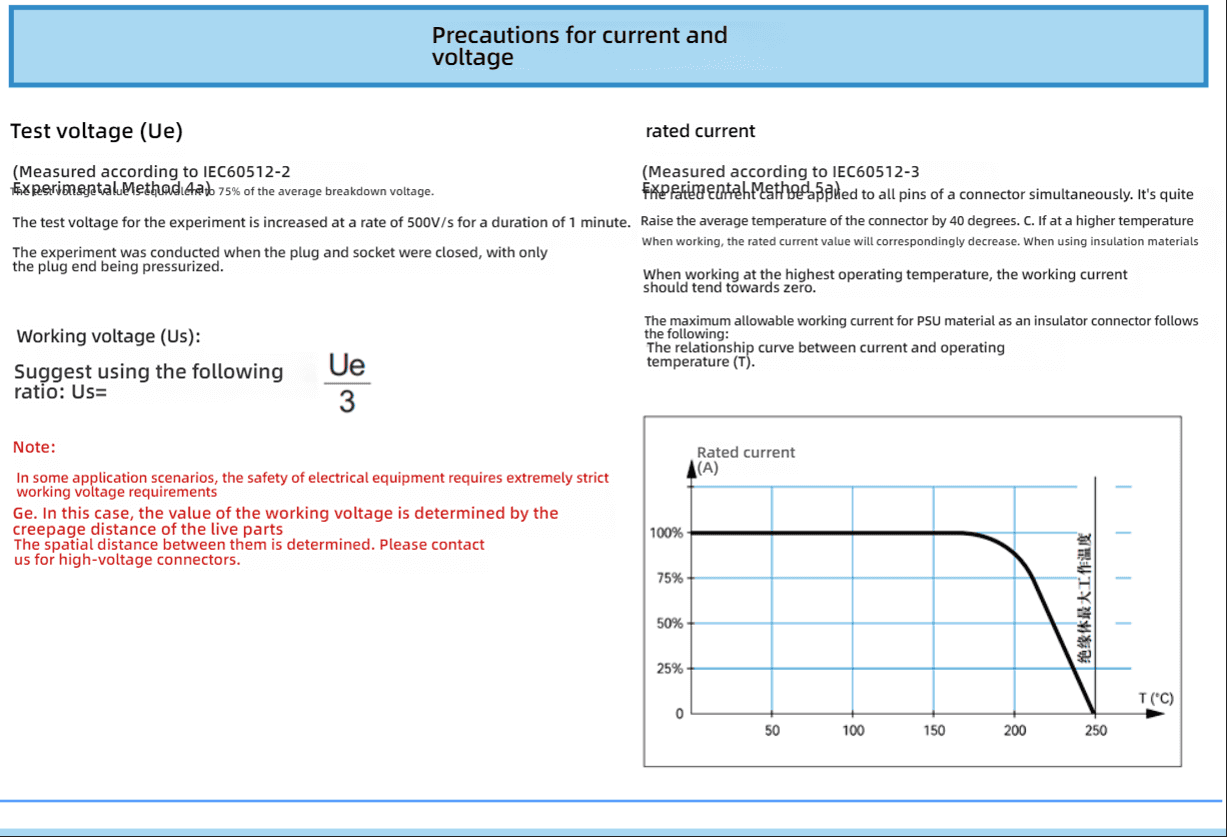

| Voltage Rating | Up to 300V (model dependent) |
| Operating Temperature | -40°C to +125°C |
| Applications | Submersible vehicles, marine instruments, industrial underwater systems |
Deep sea rated up to 600 meters
IP68 waterproof and dustproof protection
Vacuum-sealed design for reliable underwater performance
Push-pull self-locking mechanism for secure and fast connection
Durable metal alloy housing with gold-plated contacts
High mechanical and vibration resistance
Compatible with FVG/HVG series
Ideal for underwater, marine, and industrial applications
Submersible and remotely operated underwater vehicles (ROVs)
Marine instrumentation and oceanography equipment
Industrial underwater sensors and monitoring systems
Offshore oil and gas underwater equipment
Deep-sea research and exploration instruments
Any high-pressure underwater electrical systems requiring secure connections
The FVG/HVG deep sea connector delivers exceptional reliability in extreme underwater conditions. Its vacuum-sealed insulation prevents moisture and corrosion, while the push-pull self-locking system ensures fast, secure, and reliable mating. Engineered for high-pressure submersible applications, it maintains stable signal and power transmission up to 600 meters depth.
Individual protective packaging
Bulk supply for industrial and marine applications
OEM customization supported
Custom Cable assembly and submersible solutions
Technical documentation available upon request
