4×6 & 3×5 Pneumatic Medical Cable Assembly 8+1 Hybrid Air-Electrical Connector M18 Aviation Plug – Med-Aesthetic Device Cable Harness

4×6 & 3×5 Pneumatic Medical Cable Assembly 8+1 Hybrid Air-Electrical Connector M18 Aviation Plug – Med-Aesthetic Device Cable Harness

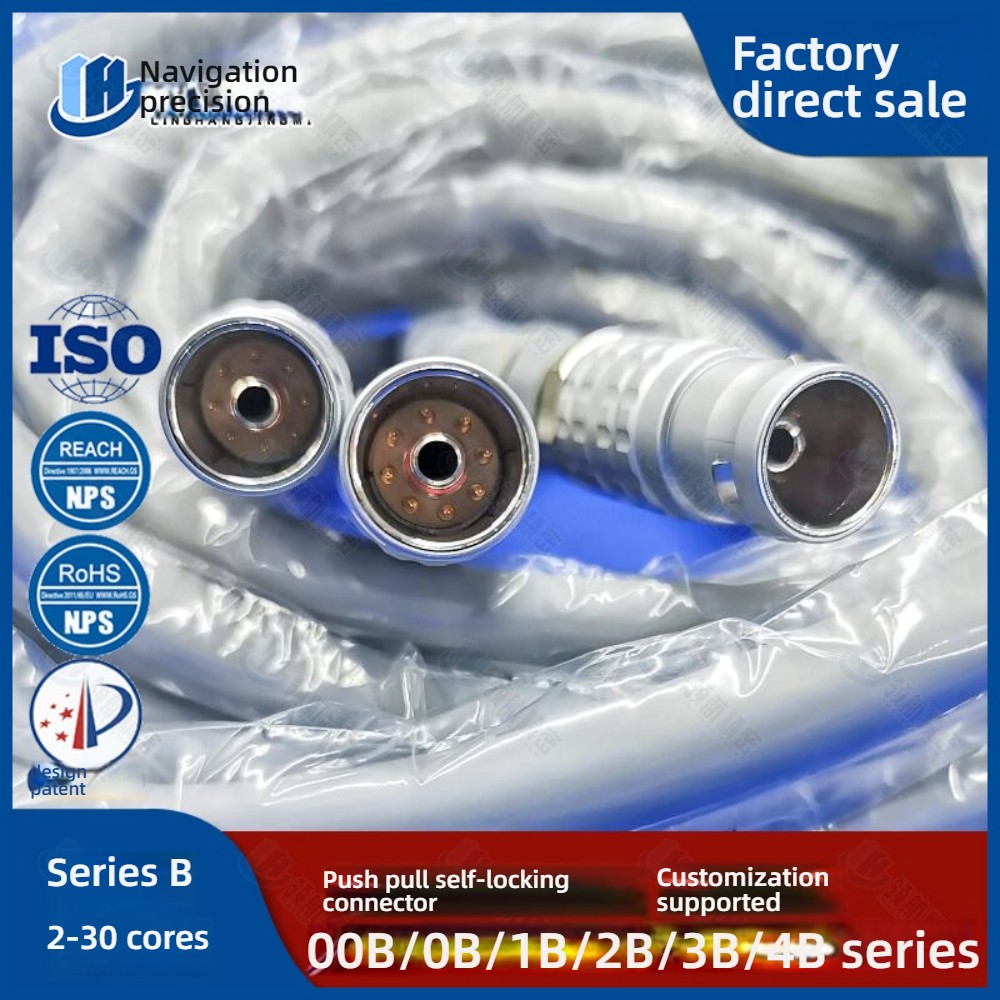

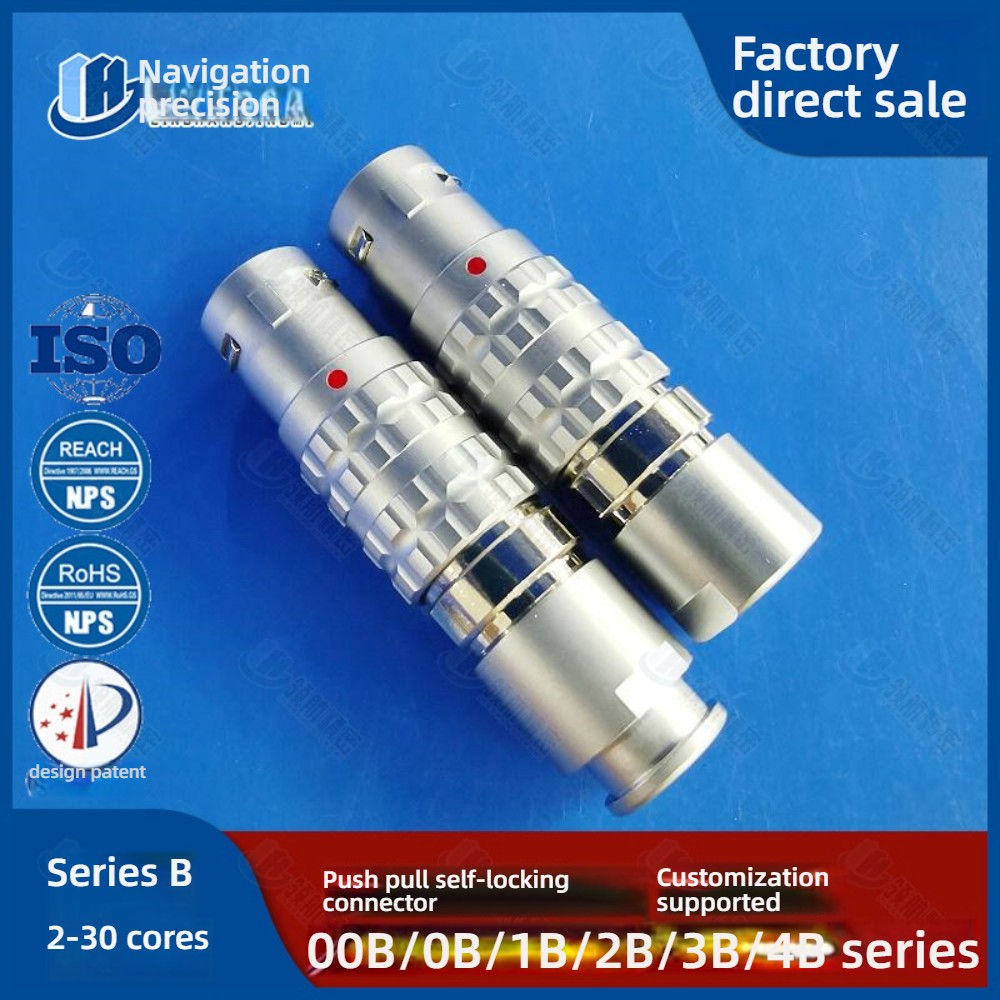

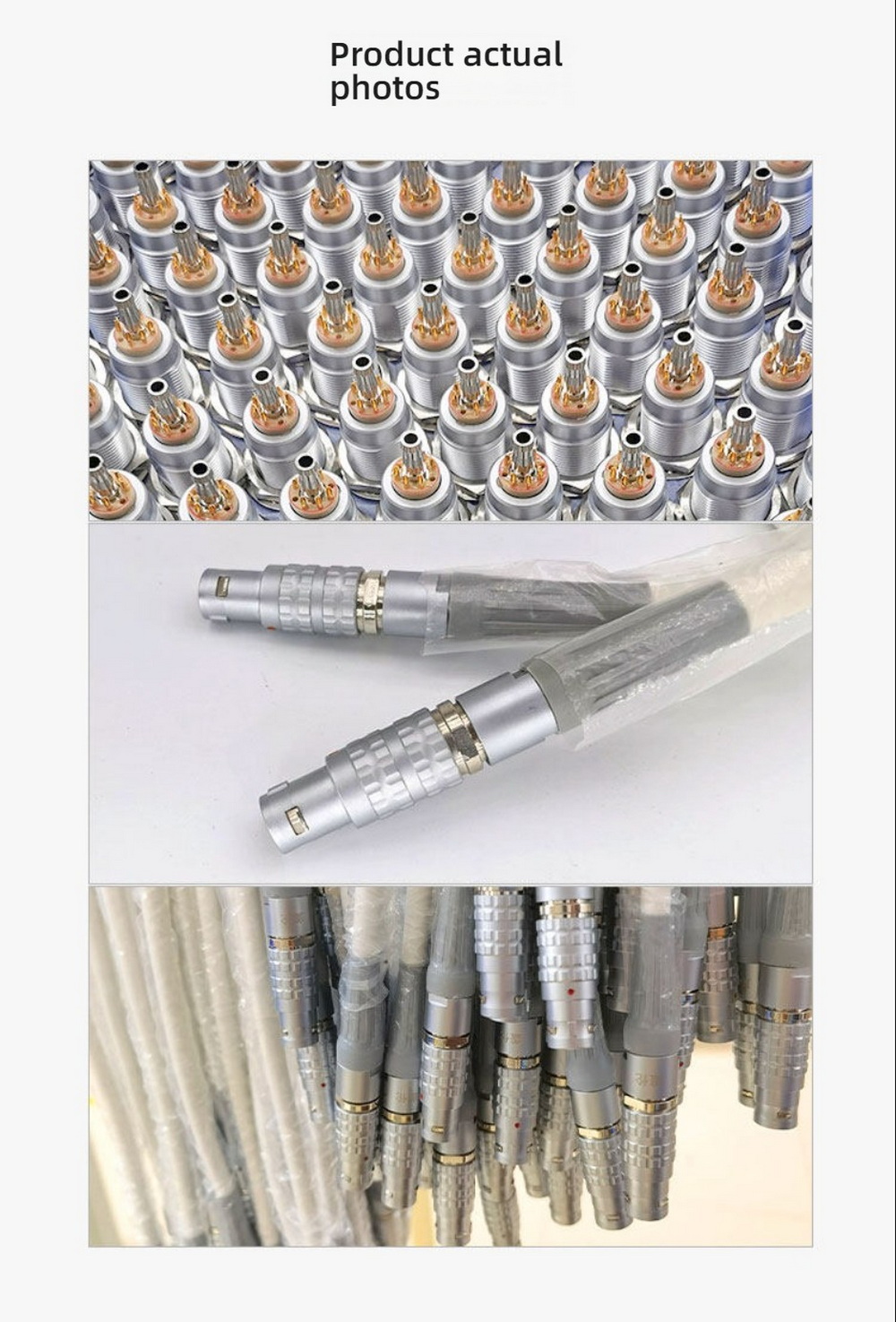

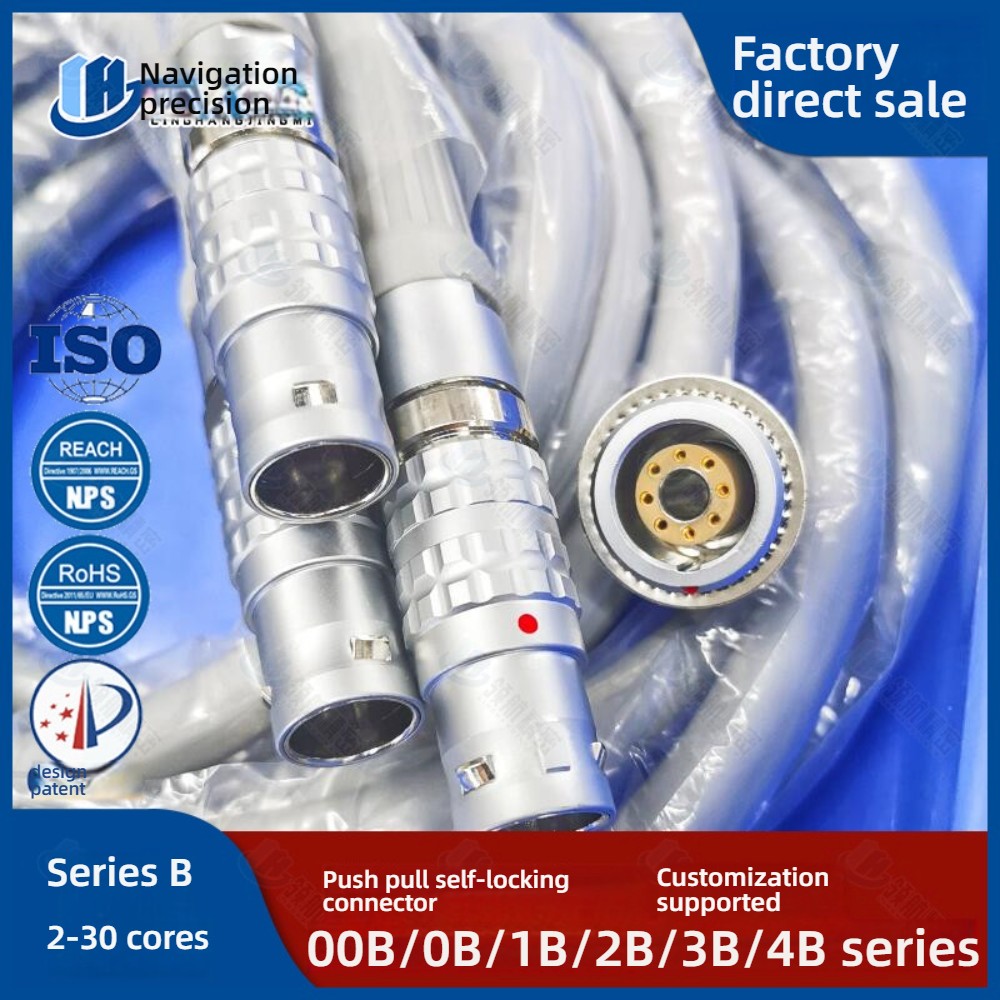

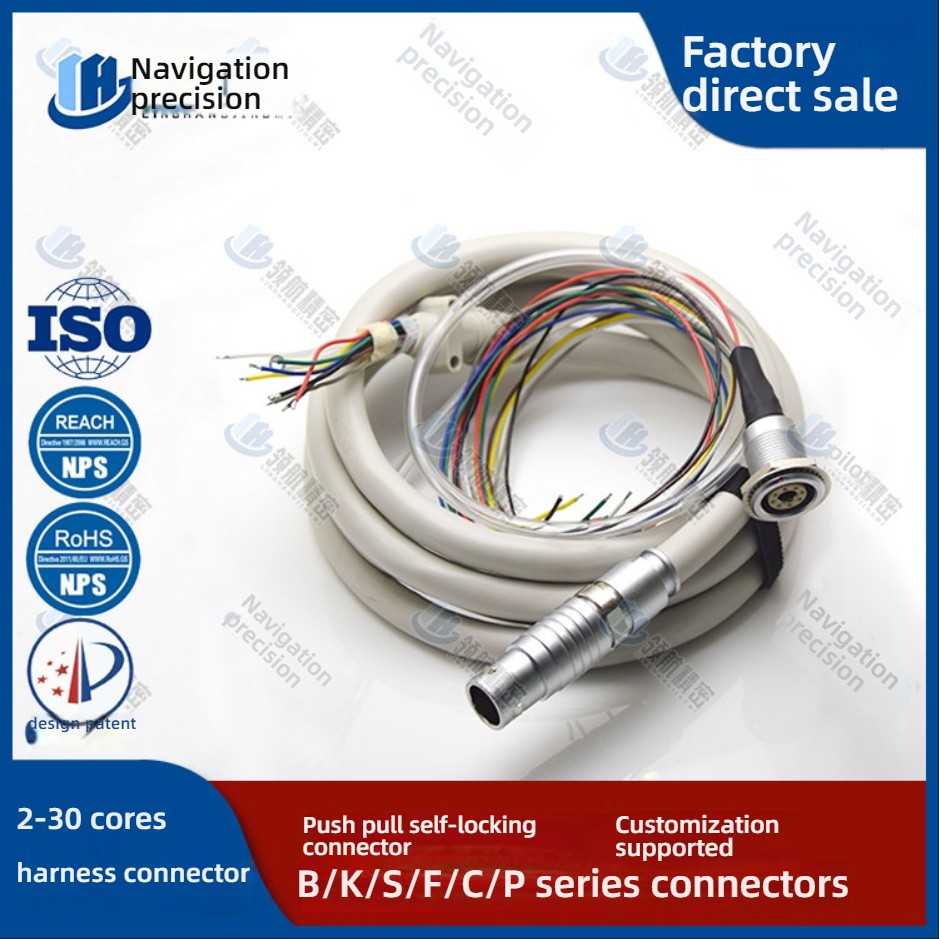

The 4×6 & 3×5 Pneumatic Medical Cable Assembly with 8+1 Hybrid Air-Electrical Connector is designed for medical aesthetics and industrial automation applications requiring combined pneumatic and electrical routing in a single robust assembly. Featuring M18 aviation plug interface, this cable harness integrates multiple pneumatic tubes (4×6mm & 3×5mm) and electrical conductors for reliable air, power, and signal transmission. Ideal for med-aesthetic equipment, robotic actuators, and laboratory devices where secure, fast, and leak-proof connections are critical.

Product Details & Technical Specifications

Model: Hybrid Air-Electrical Cable assembly 8+1
Connector Type: 8+1 Pneumatic-Electrical Hybrid M18 Aviation Plug
Pneumatic Tubes:
• 4×6 mm air tube
• 3×5 mm air tube

Electrical Contacts: 8 contacts + 1 auxiliary (signal/power)

Housing Material: High-strength engineering plastic with durable finish

Sealing & Protection: IP67 equivalent (dustproof and splash resistant when mated)

Locking Mechanism: Push-pull aviation style for secure quick connect

Operating Temperature: -20°C to +80°C (-4°F to +176°F)

Electrical Voltage Rating: Up to 250V DC/AC (dependent on application)

Electrical Current Rating: Up to 5A per contact

Pneumatic Pressure Rating: Up to 8 bar (116 psi)

Contact Material: Copper alloy with corrosion-resistant plating

Durability: > 3000 mating cycles

Cable Assembly Length: Customizable per order (standard lengths available)

Use Cases:
• Medical aesthetic devices (air and signal integration)
• Pneumatic actuators and robotic tooling
• Industrial automation requiring air + electrical combined lines
• Laboratory instrumentation with gas and signal routing
• Compact med-tech devices requiring hybrid connectivity

Key Features:
✔ Integrated air and electrical lines in one connector
✔ M18 aviation plug with quick push-pull locking
✔ Lightweight and corrosion-resistant plastic housing
✔ High reliability for repeated connection cycles
✔ Supports complex med-aesthetic and industrial applications
