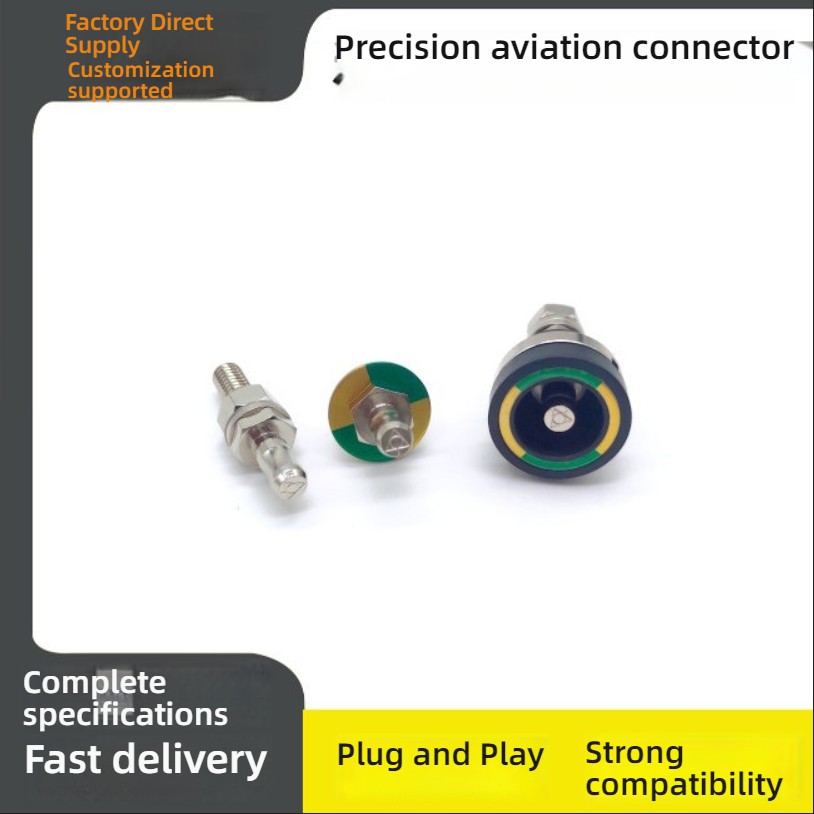

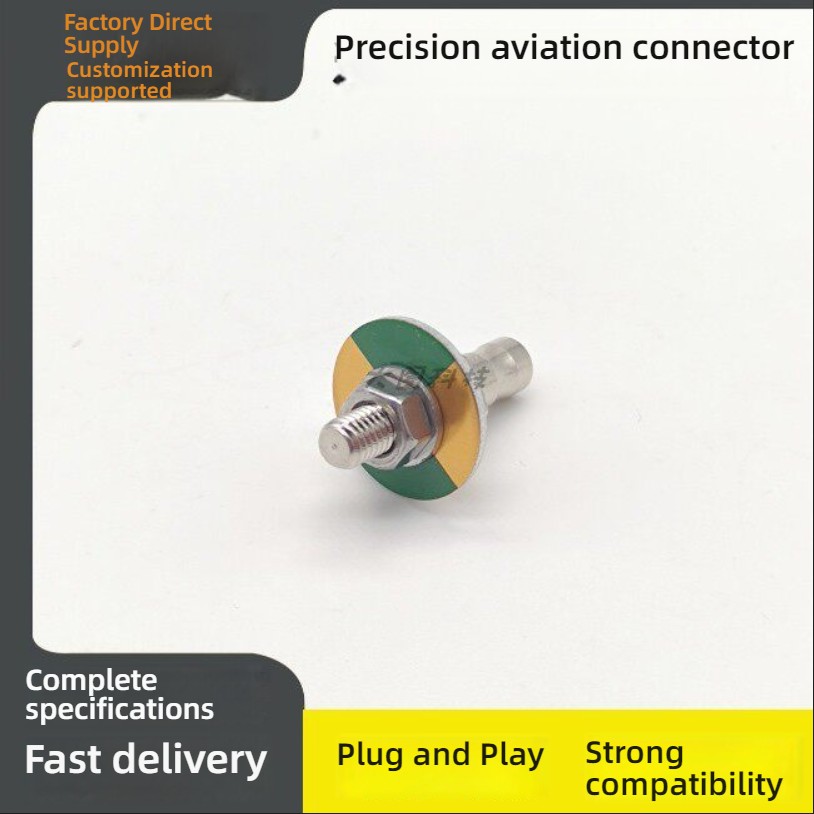

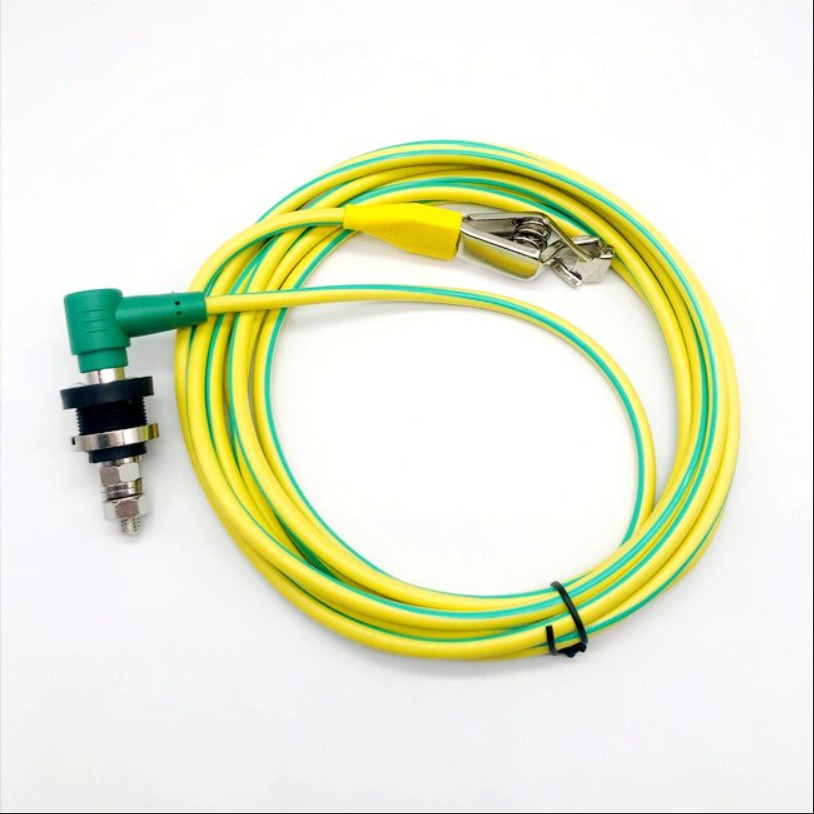

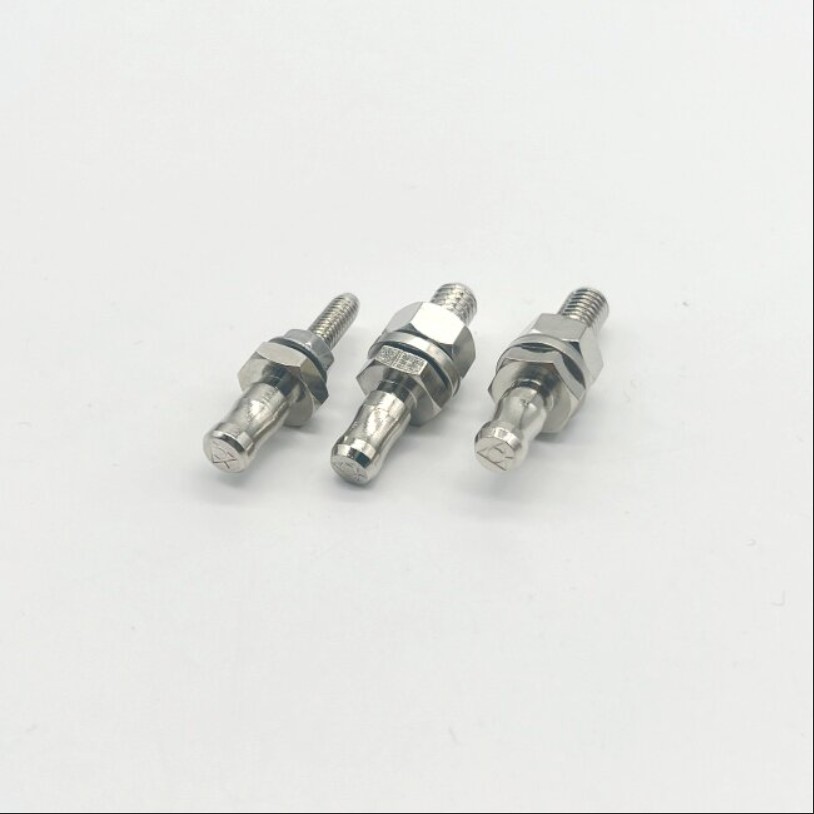

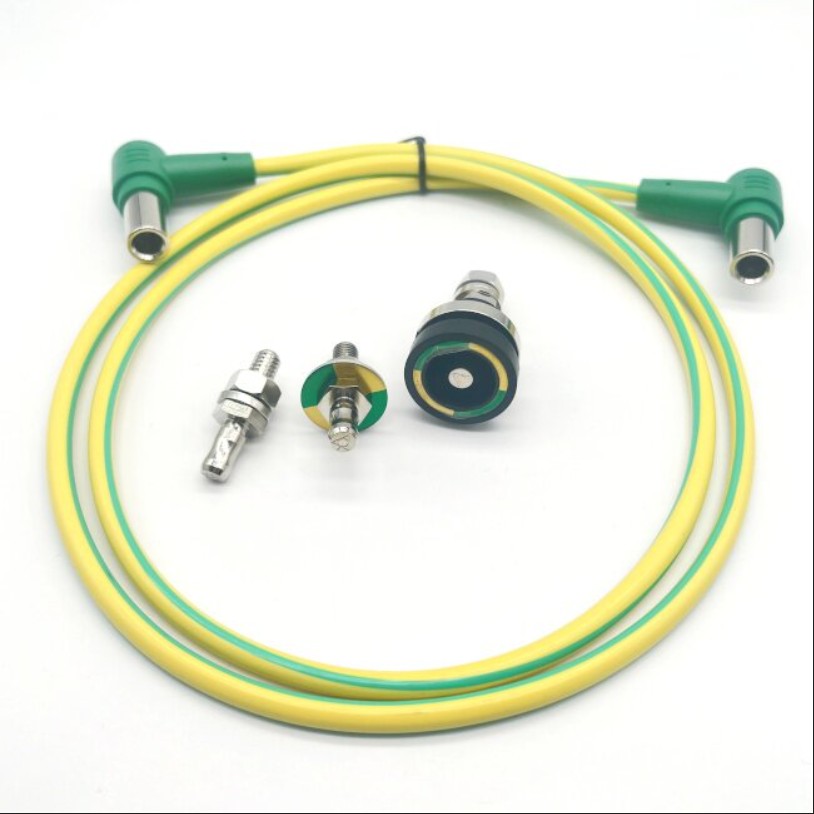

Custom M4 M5 M6 Pure Copper Grounding Post for Medical Equipment

We specialize in manufacturing high-conductivity pure copper grounding posts and equipotential bonding terminals designed for medical towers, hospital communication sockets, blood pressure monitoring devices, and medical aesthetic equipment.

Our grounding terminals are widely used in healthcare electrical systems to ensure safe equipotential bonding in compliance with medical electrical safety requirements such as IEC60601 standards.

Product Overview

This grounding post is designed for secure chassis grounding and equipotential bonding in medical and industrial electrical systems. It is commonly installed on:

• Medical ceiling pendant towers

• Hospital bed head units

• Medical communication sockets

• Blood pressure monitoring devices

• Medical beauty & aesthetic equipment

• Diagnostic and patient monitoring systems

Technical Specifications

Product Name: Medical Equipotential Grounding Post
Thread Sizes: M4 / M5 / M6 (Customizable)
Material: High Purity Copper (≥ 99.9%)
Surface Treatment: Nickel Plated / Tin Plated / Bare Copper (Optional)
Rated Current Capacity: Up to 40A (depending on installation method)
Contact Resistance: ≤ 0.5 mΩ
Insulation Resistance: ≥ 100 MΩ
Mounting Type: Panel Mount with Nut Fixing
Terminal Type: Stud Type with Washer & Nut
Operating Temperature: -40°C to +120°C
Corrosion Resistance: ≥ 72h Salt Spray Test
Compliance: ROHS & REACH

Key Features

• Made from high conductivity pure copper

• Low contact resistance for stable grounding

• Excellent corrosion resistance

• Strong mechanical fastening structure

• Safe and reliable equipotential bonding

• Customizable thread length and structure

• Suitable for medical safety grounding systems

Application Standards

Designed to meet medical electrical safety grounding requirements commonly associated with equipment complying with standards used by manufacturers such as:

• International Electrotechnical Commission (IEC 60601 Medical Electrical Equipment Standard)

Customization Services

We provide:

• Thread size customization (M3–M8 available)

• Logo laser marking

• Special plating requirements

• Custom packaging

• Small batch prototype support

• Large volume OEM production

Manufacturing Advantages

• Precision CNC machining

• Strict dimensional tolerance control

• 100% conductivity and resistance testing

• Professional export packaging

• Fast lead time and stable supply chain

Our medical-grade grounding terminals ensure safe and reliable performance in hospital and clinical environments.

For bulk orders, technical drawings, or OEM customization, contact us for professional engineering support and competitive factory pricing.
