Fischer High-Voltage 7–13kV Single-Core S.105A.004 Push-Pull Self-Locking Connector

Fischer High-Voltage 7–13kV Single-Core S.105A.004 Push-Pull Self-Locking Connector

Fischer S.105A.004 high-voltage single-core connector, rated 7–13kV. Push-pull self-locking design ensures fast, safe, and reliable connections for industrial, electrical, and high-voltage applications.

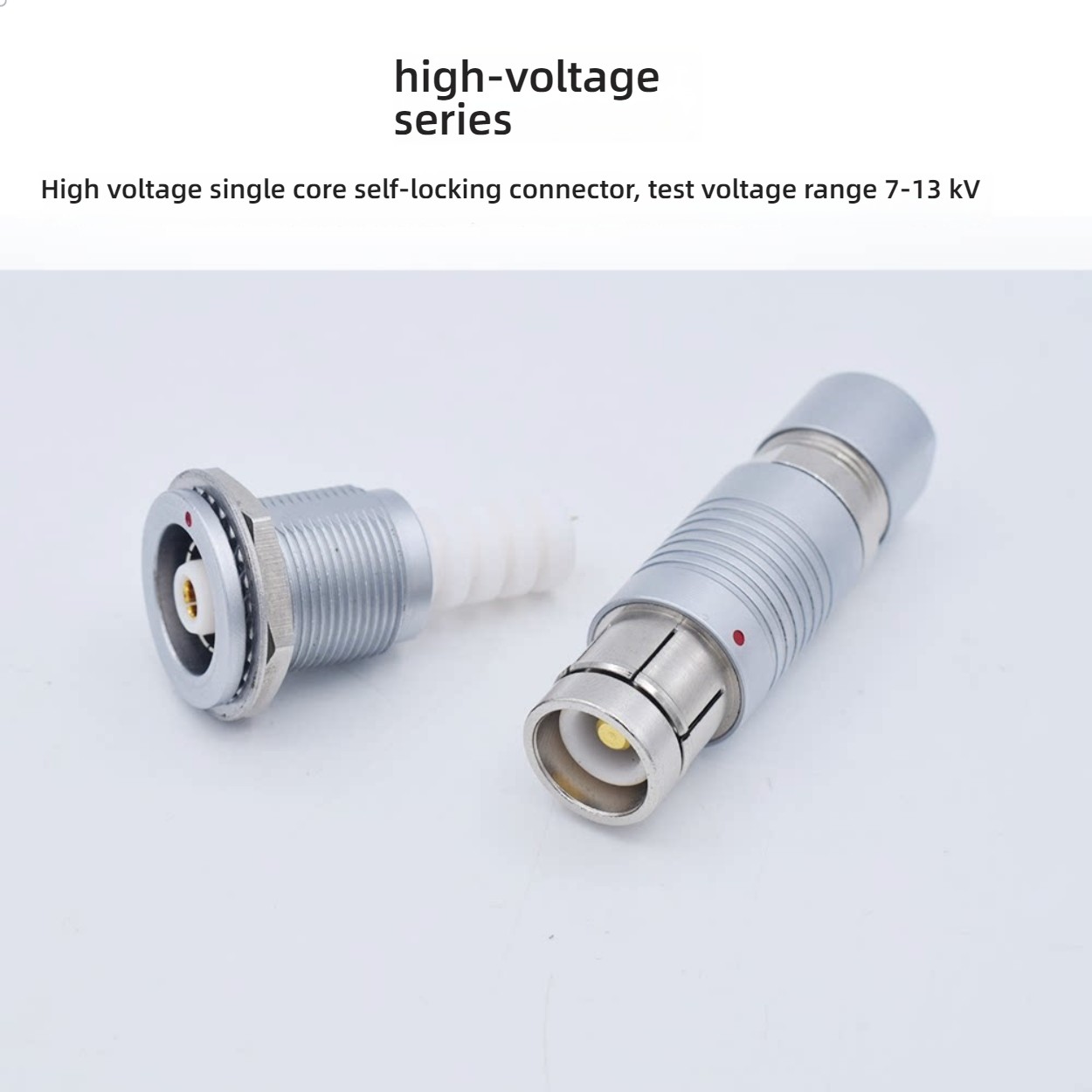

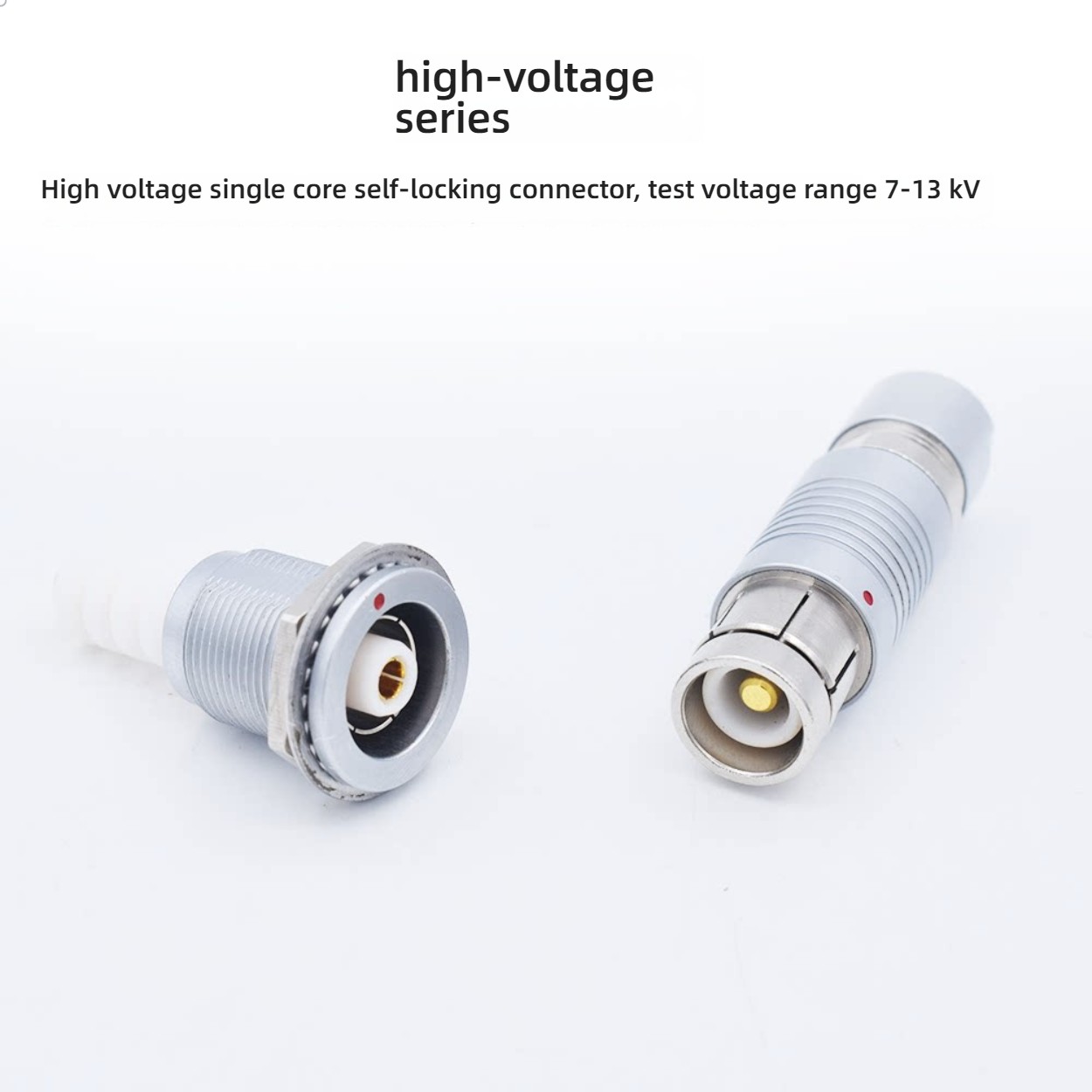

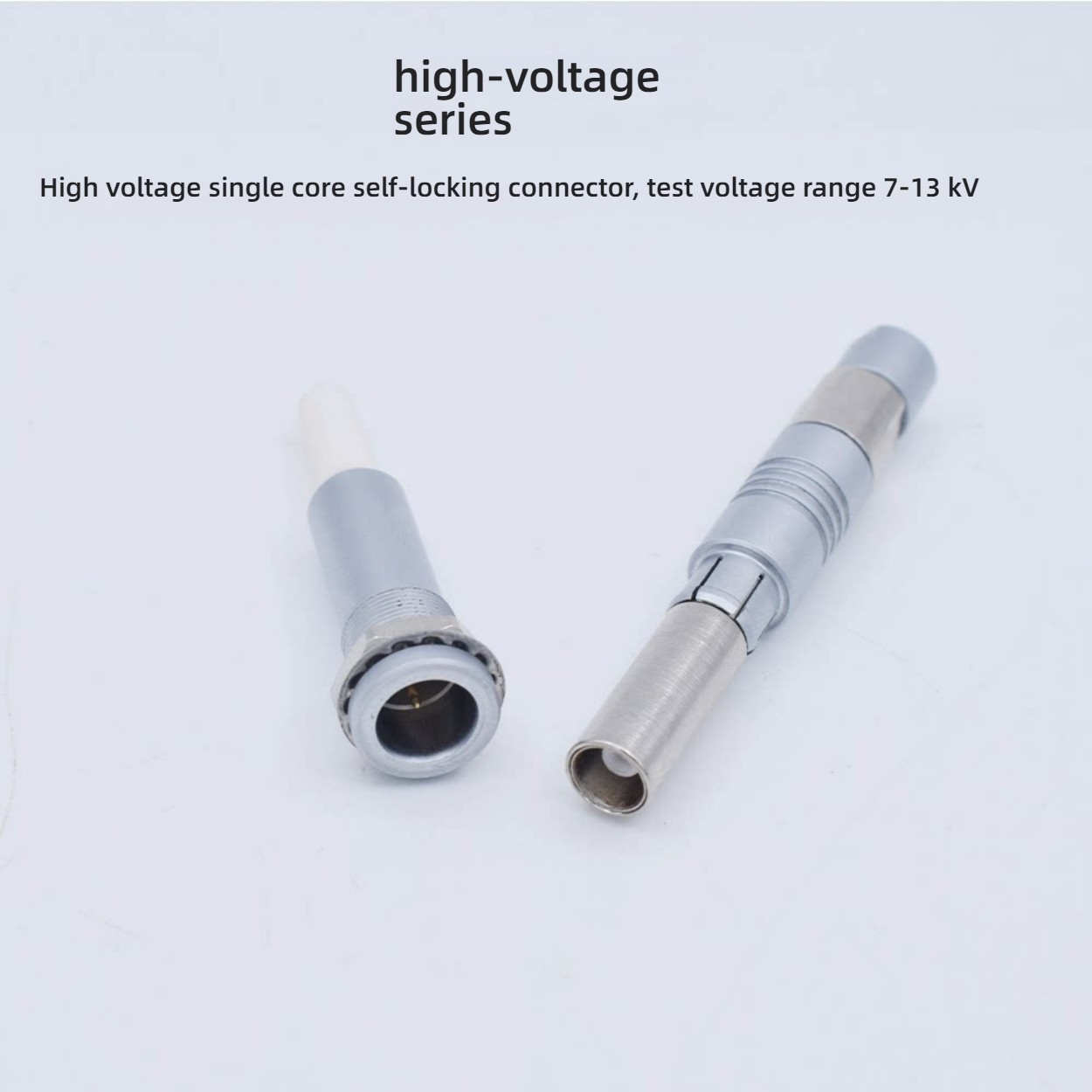

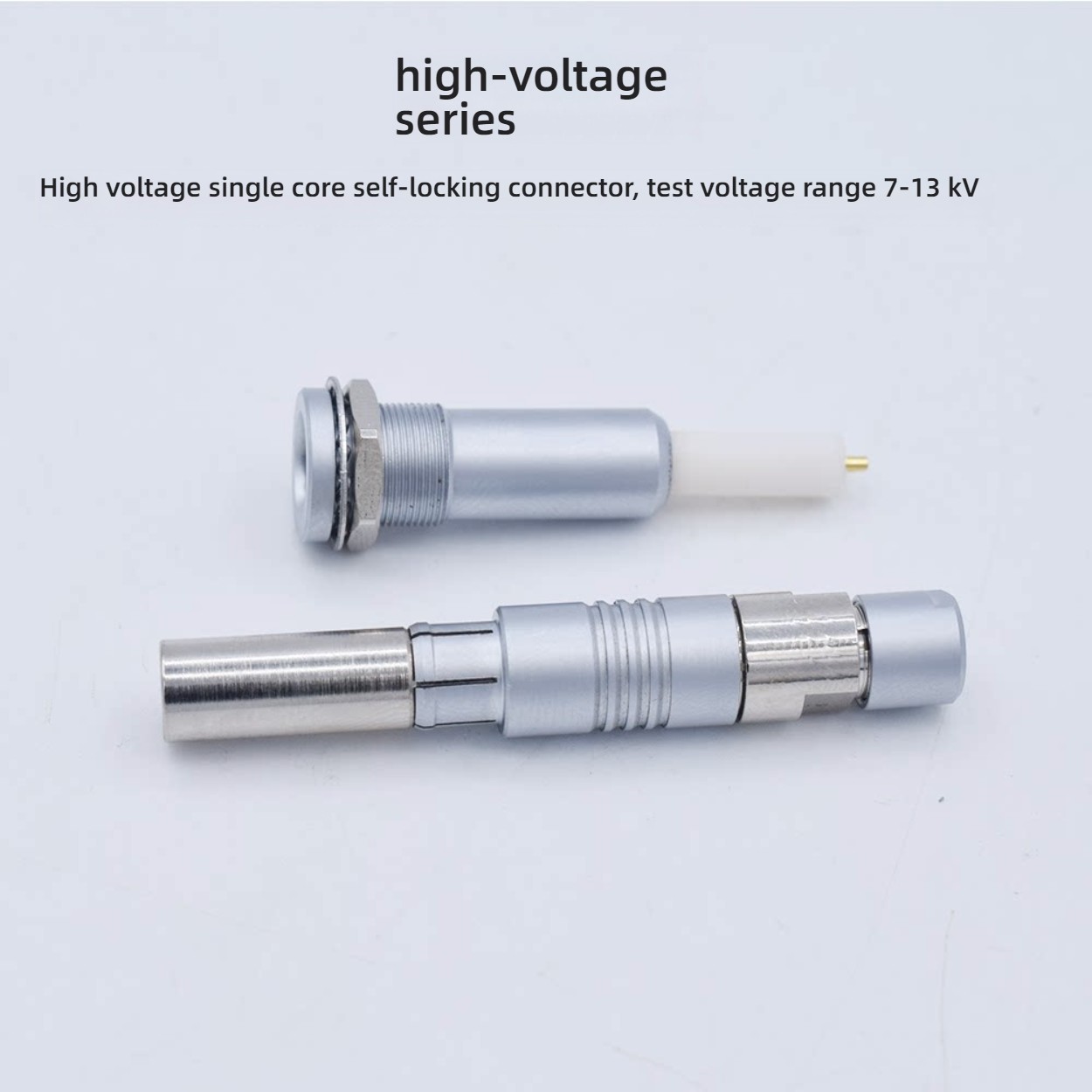

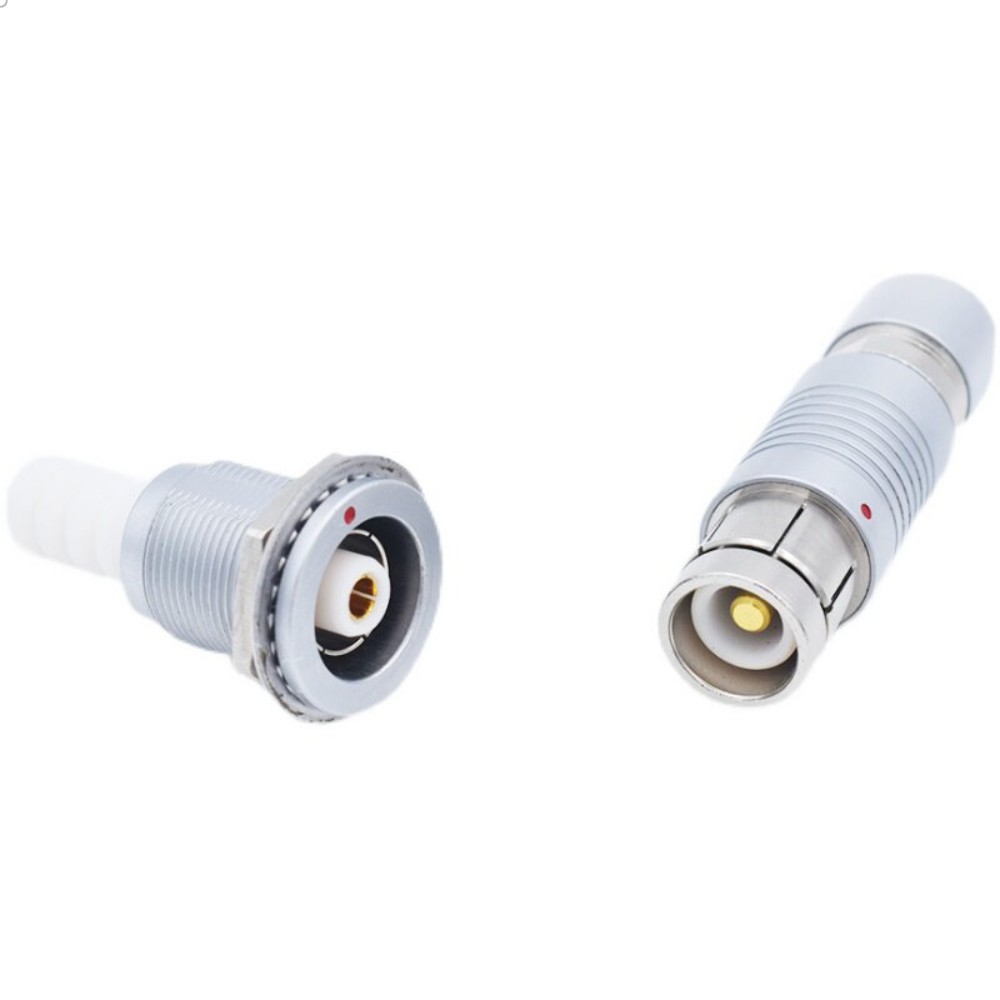

The Fischer S.105A.004 high-voltage single-core connector is engineered for industrial and electrical applications requiring reliable high-voltage connections. Rated for 7–13kV, this push-pull self-locking connector provides fast, secure, and safe mating, minimizing the risk of accidental disconnection.

Constructed with high-quality insulation and corrosion-resistant housing, it ensures stable performance under harsh environmental conditions. Ideal for electrical testing, power distribution, and industrial equipment, this connector delivers long-term reliability and safety in high-voltage applications.

Technical Specifications

Feature	Description
Series	S.105A.004
Voltage Rating	7–13kV AC/DC
Connector Type	Single-Core Push-Pull Self-Locking
Contact Material	Copper Alloy / High-Voltage Conductor
Insulation	High-Dielectric Strength Plastic
Housing Material	Corrosion-Resistant Metal Alloy / Polymer
Locking Mechanism	Push-Pull Self-Locking
Operating Temperature	-40°C to +125°C
Applications	Industrial high-voltage systems, electrical testing, power distribution equipment
Standards	IEC 60664, UL certified variants available

Key Features

Single-core connector rated for 7–13kV
Push-pull self-locking mechanism for fast and secure mating
High dielectric strength insulation ensures safety and reliability
Corrosion-resistant housing for industrial and outdoor environments
Compact and durable design for high-voltage equipment
Ideal for industrial testing, power distribution, and electrical systems
Minimizes risk of accidental disconnection in high-voltage setups

Applications

High-voltage industrial equipment
Electrical power distribution systems
High-voltage testing laboratories
Industrial automation requiring safe HV connections
Renewable energy systems and electrical engineering projects
Any application requiring single-core 7–13kV reliable connector

Performance Advantages

The Fischer S.105A.004 connector delivers secure, reliable high-voltage connections with minimal insertion/extraction force thanks to its push-pull self-locking design. It combines high dielectric insulation, corrosion resistance, and industrial-grade durability to ensure safe operation in challenging electrical environments.
