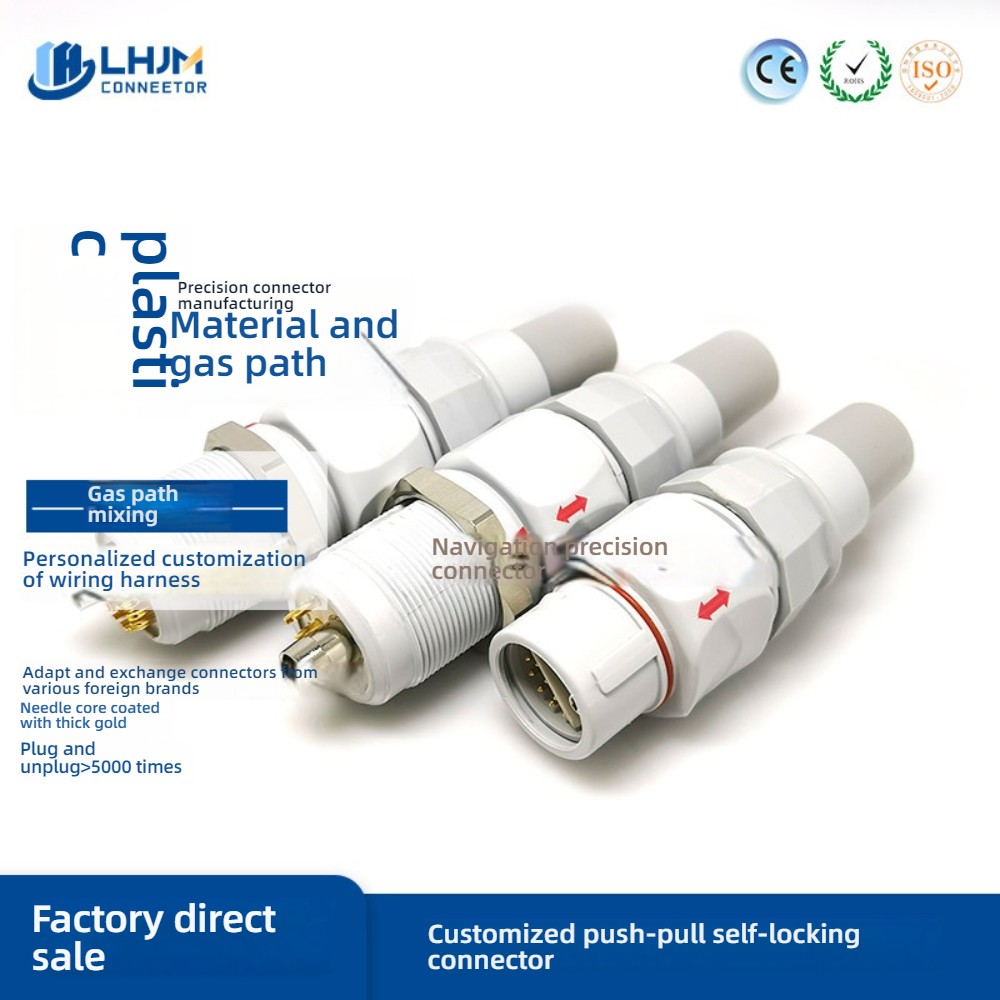

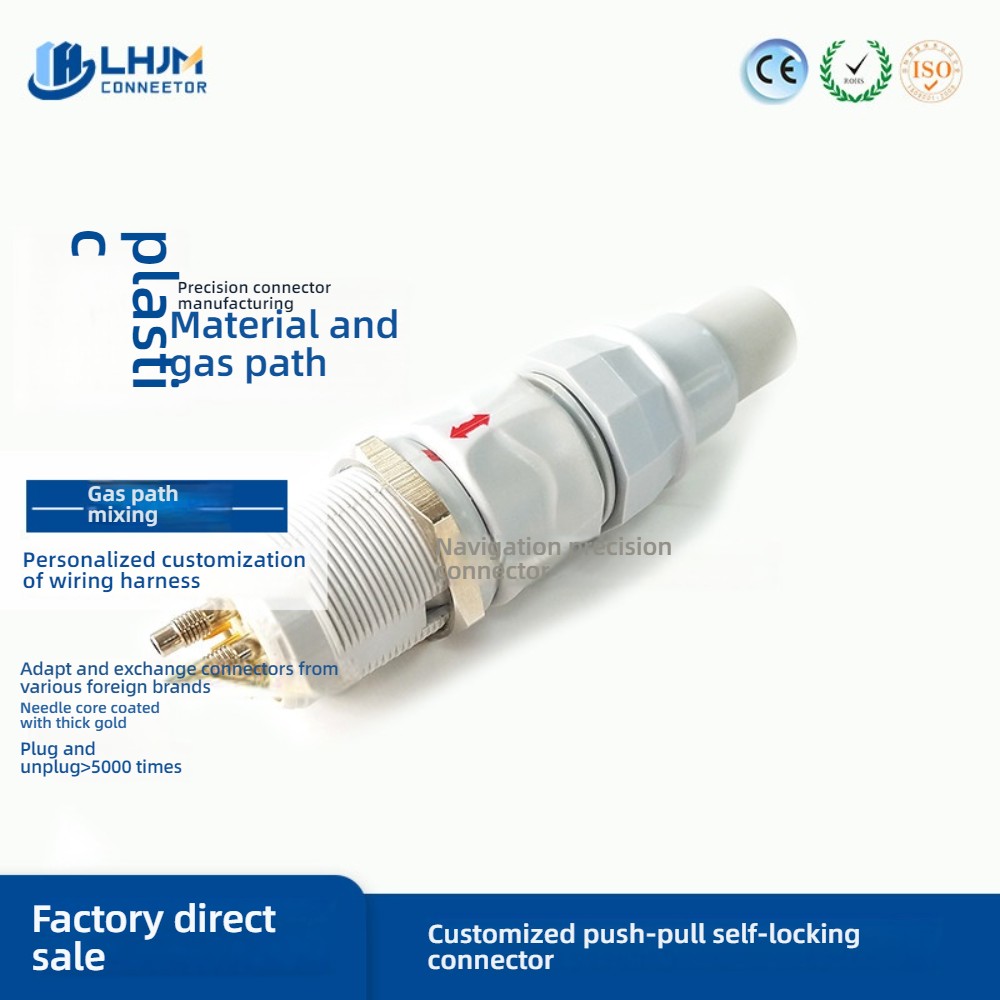

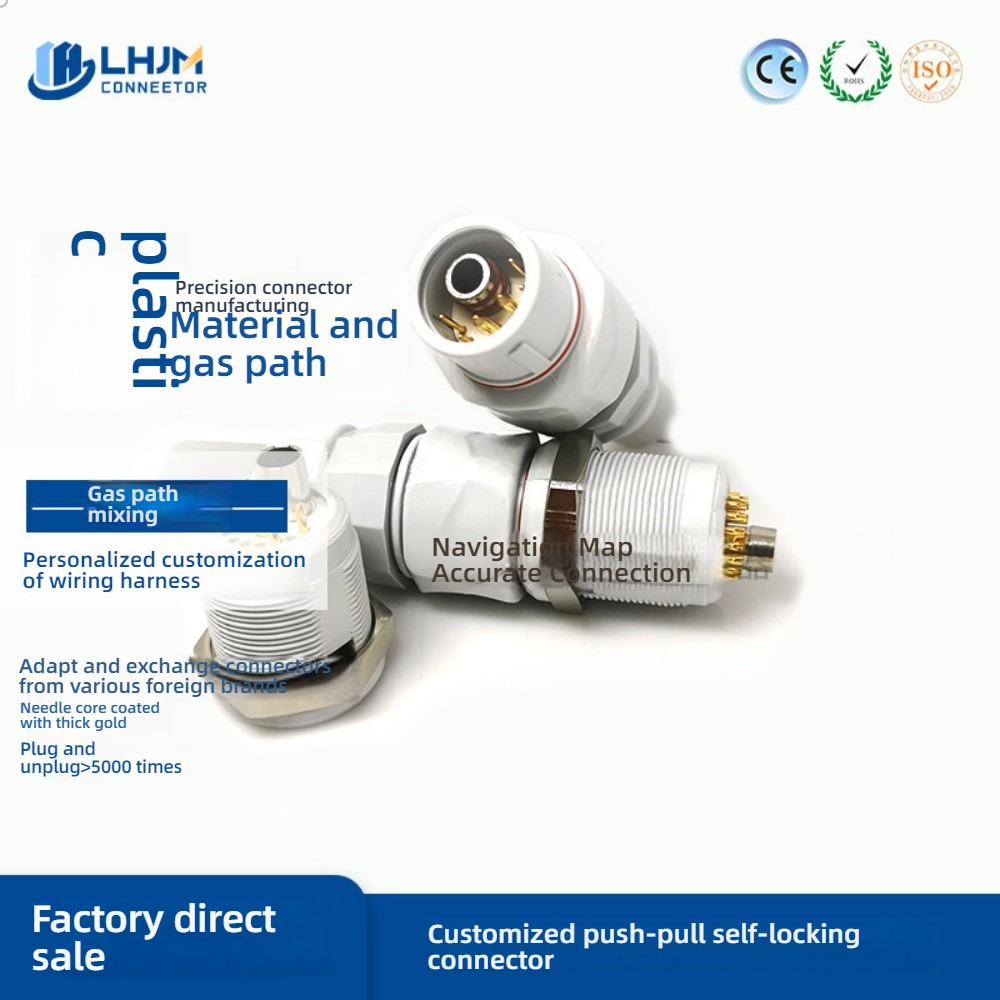

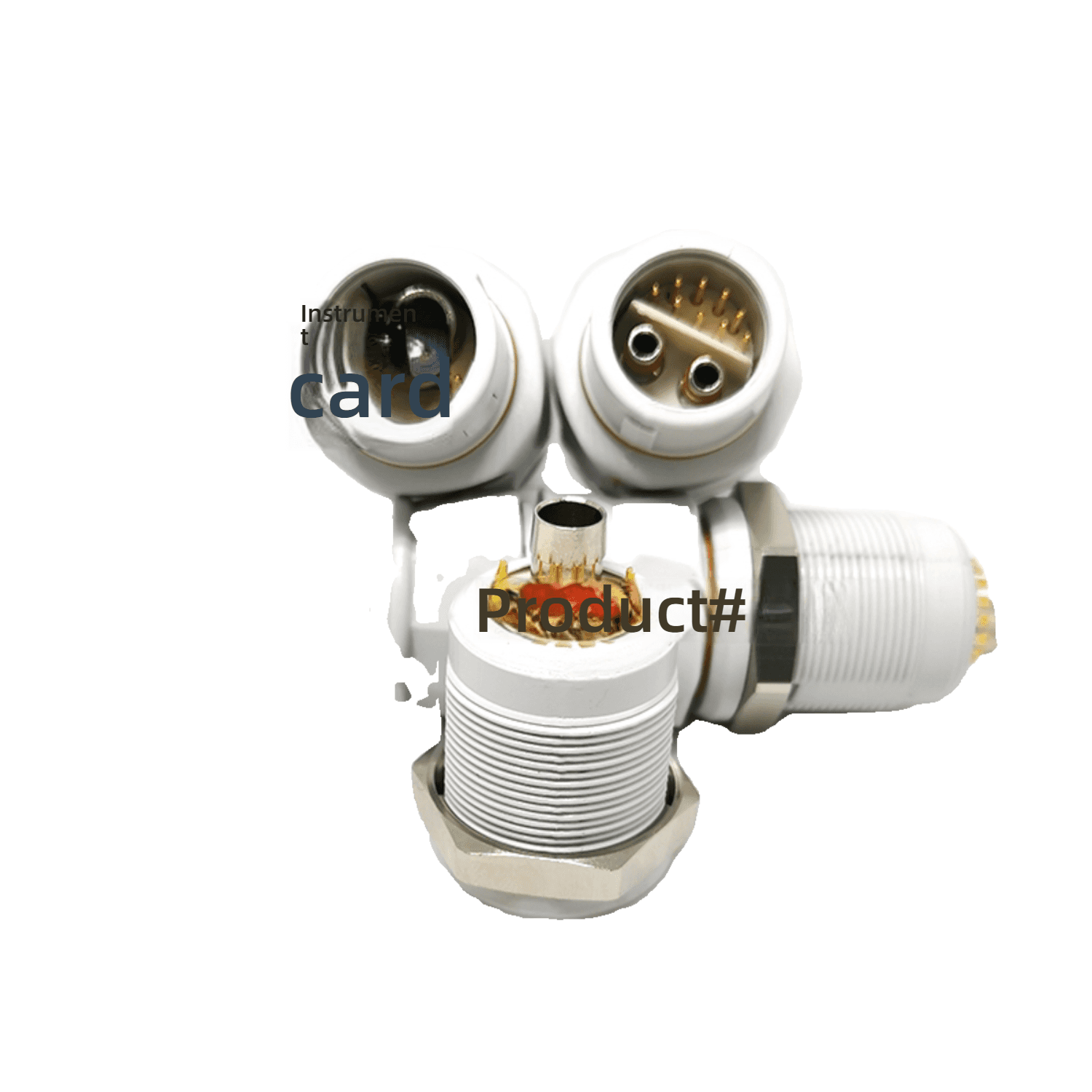

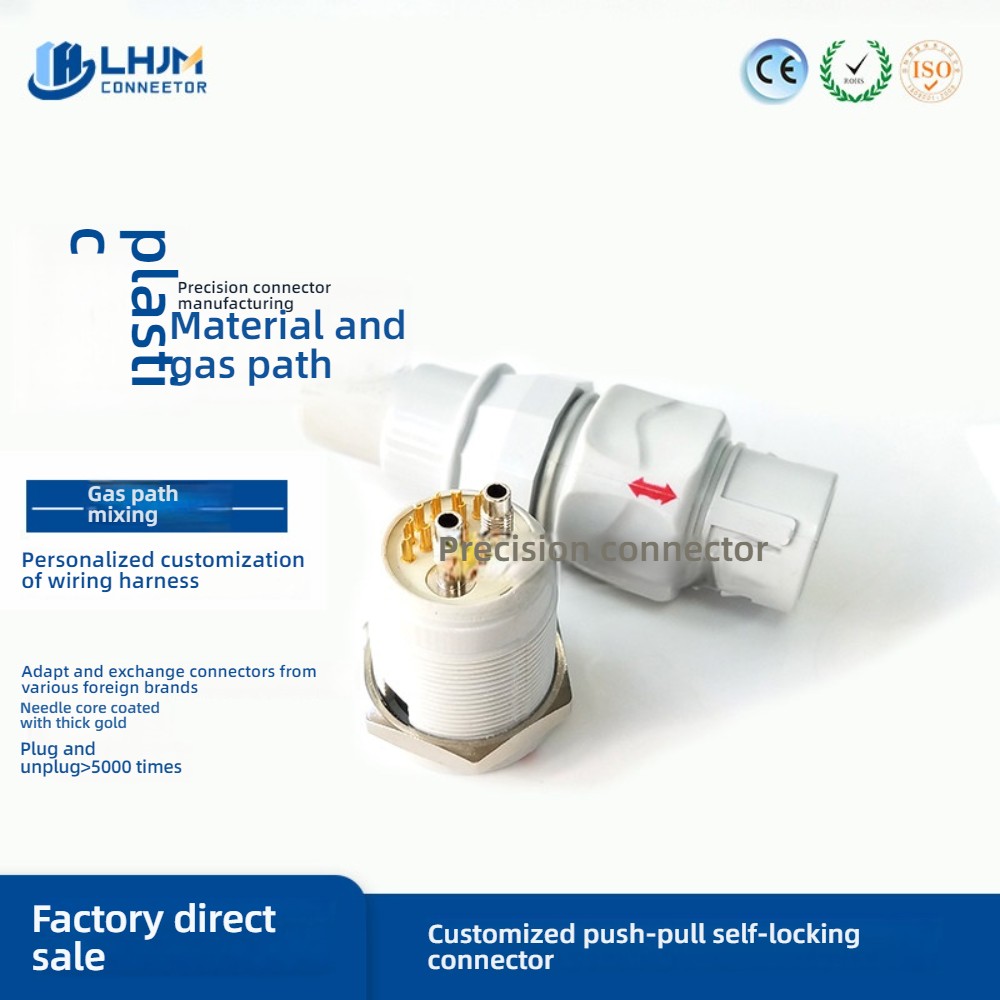

4P9+2 Pneumatic-Electrical Hybrid Connector – Self-Locking Aviation Plug Plastic Quick Connector for Medical Devices

Product Details & Technical Specifications

Model: 4P9+2 Pneumatic-Electrical Hybrid Connector
Connector Type: Self-Locking Push-Pull Aviation Plug, Plastic Quick Connector
Configuration:

• 4 Pneumatic Ports – Air/Gas Supply

• 9+2 Electrical Contacts – Signal & Power

Housing Material: High-strength engineering plastic, corrosion-resistant finish

Contact Material: Copper alloy with gold plating for low contact resistance and long durability

Locking Mechanism: Push-Pull self-locking for fast and secure connections

Sealing Protection: IP67 rated (dustproof and waterproof when mated)

Operating Temperature Range: -20°C to +80°C (-4°F to +176°F)

Electrical Voltage Rating: Up to 250V AC/DC

Electrical Current Rating: Up to 5A per contact

Pneumatic Pressure Rating: Up to 10 bar (145 psi)

Contact Resistance: ≤5 mΩ (typical)

Insulation Resistance: ≥5000 MΩ

Durability: >3000 mating cycles

Cable Compatibility: Supports shielded multi-core cables and pneumatic tubing; custom assemblies available

Use Cases:

• Medical aesthetic devices

• Pneumatic actuators in automation systems

• Robotics and hybrid control panels

• Laboratory instrumentation

• Compact med-tech systems requiring integrated air and signal lines

Key Features:
✔ Integrated pneumatic and electrical connectivity in one compact plug
✔ Self-locking push-pull mechanism for secure, fast mating
✔ Plastic housing with corrosion-resistant finish
✔ IP67 rated for water and dust protection
✔ Suitable for repeated industrial and medical applications
